Xilence



3PIN Case Fans | XPF92.R

XF038 | XPF92.R

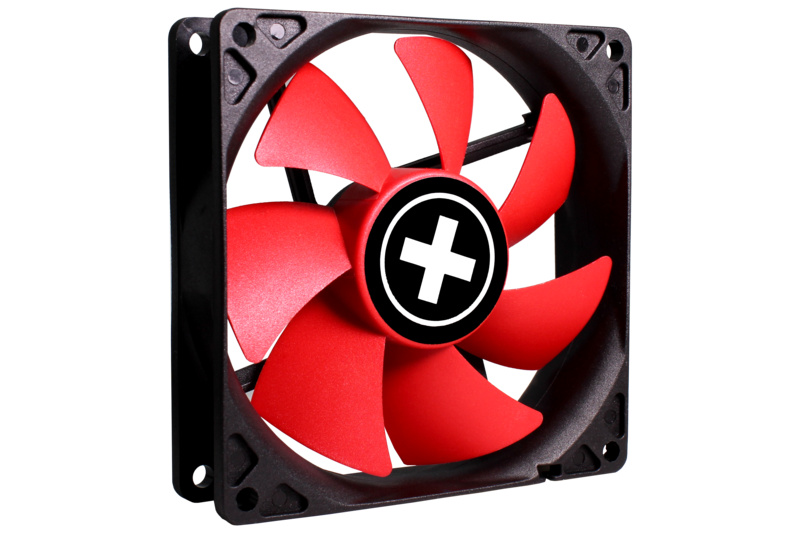

The Xilence Performance C Series excels with an extraordinary price-performance ratio and a very good proficiency combined with a low noise developement. The black and red case fans, all equipped with a hydro bearing are available in 3 different sizes.
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
XF038

Other products of this series:
Contact

Article features

  • Optimal performance in every situation
  • Hydro bearing fan
  • Airflow-optimized rotor blades

      Technical data

      General data

      Model Performance C | 92mm
      Dimensions (mm) 92
      Fan speed @ 12V (rpm) 1500 ± 10%
      Color Black

      open all / close all

      Mechanical specifications
      Dimensions (L x W x H), (mm) 92 x 92 x 25
      Bearing technology FDB
      Weight incl. fixed cables (kg) 0.07
      Cables / Connectors
      Connector 3 pin + 4 pin molex
      Cable length (mm) 350
      Performance / Noise
      Air flow @ 12V (cfm / m3/h) 27.45 / 46.67
      Noise level @ 12V (dB(A)) max. 17.8
      Electrical specifications
      Rated voltage DC (V) 12
      Operating voltage DC (V) 6 - 13.8
      Accessories
      Screws 4
      Service
      Warranty (Years) 2
      Logistics data, RRP
      Article number XF038
      Range Performance C
      EAN code 4044953500862
      Dimensions, package (L x W x H), (mm) 100 x 30 x 120
      Gross weight, package (kg) 0.1
      Pieces per packaging unit 100
      Dimensions, shipping box (L x W x H), (mm) 520 x 260 x 340
      Gross weight, shipping box (kg) 10.5

      Downloads

      Datasheet
      Datasheet
      Download

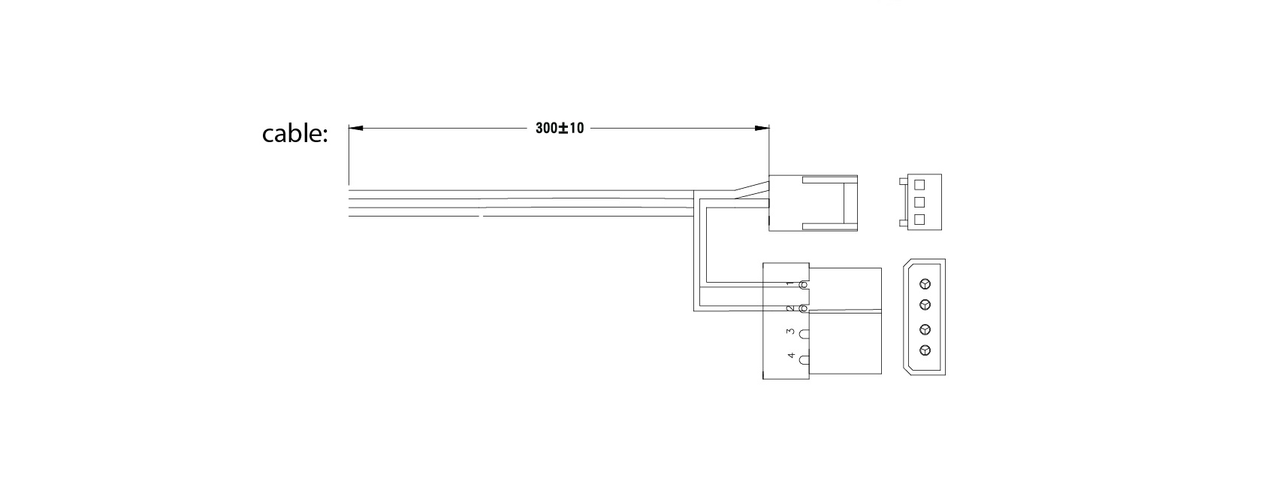

      Cable connection
      Cable connection
      Download
