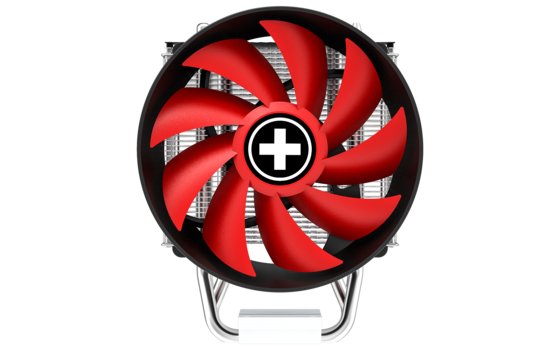

The compact M403PRO with its tower design is the new multi-socket cooler from the Performance C Series. Three high-performance copper heat pipes dissipate 150W waste heat to the innumerable cooling fins. These reasons make the cooler ideal for powerful multi-core processors. Additionally, the heat transmission between CPU and cooler is very evenly and efficient due to the direct contact of heat pipes and CPU. The mounting material make this cooler suitable for all current AMD and INTEL sockets. The scope of delivery not only includes the heat sink tower, as well as the 120mm PWM fan but also a holding module for Intel sockets 1150/1151/1155/1156/1200/1700 and AMD sockets AM4/AM5 and a tube of thermal paste. For the correct installation an illustrated manual is included.
250W TDP | 120mm FDB fan
XC081 | M906220W TDP | 2x 120mm PWM fan
XC061 | M705D200W TDP | ARGB Fan & Topcover
XC056 | M704PRO.ARGB180W TDP
XC051 | M704150W TDP | ARGB fan
XC129 | M403PRO.ARGB150W TDP | ARGB fan | white edition
XC229 | M403PRO.W.ARGB180W TDP
XC044 | M504D150W TDP | blue LED
XC130 | M403PRO.TBL150W TDP | red LED
XC131 | M403PRO.TR130W TDP
XC028 | M402| Model | Performance C | M403PRO |
| Overall dimensions without mounting material (L x W x H), (mm) | 120 x 72 x 14 |
| Total weight (kg) | 0.42 |
| TDP (W) | 150 |
| Socket compatibility | Intel: LGA1700 / 1200 / 1156 / 1155 / 1151 / 1150; AMD: AM5 / AM4 |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 14.2 - 25.6 |
| Color | Black |
| Dimensions (L x W x H), (mm) | - |
| Number of fins | 40 |
| Fin material | Aluminum |
| Base material | Aluminum |
| Heatpipe number / Diameter (mm) | 3 / 6 |
| Fan dimensions (mm) | 120 x 120 x 25 |
| Speed @ 100% PWM (rpm) | 500 - 1800 ± 10% |
| Bearing technology | Hydro Bearing |
| Rated voltage (V) | 12 |
| Connector | 4 pin |
| Cable length (mm) | 360 ± 10 |
| Lifespan (h / 25°C) | - |
| Thermal grease | 1 |
| Warranty (Years) | 2 |
| Article number | XC029 |
| Range | Performance C |
| EAN code | 4044953502262 |
| Dimensions, package (L x W x H), (mm) | 124 x 108 x 156 |
| Gross weight, package (kg) | - |
| Pieces per packaging unit | 16 |
| Dimensions, shipping box (L x W x H), (mm) | 520 x 455 x 190 |
| Gross weight, shipping box (kg) | - |
