XN173 | XP750MR9.2

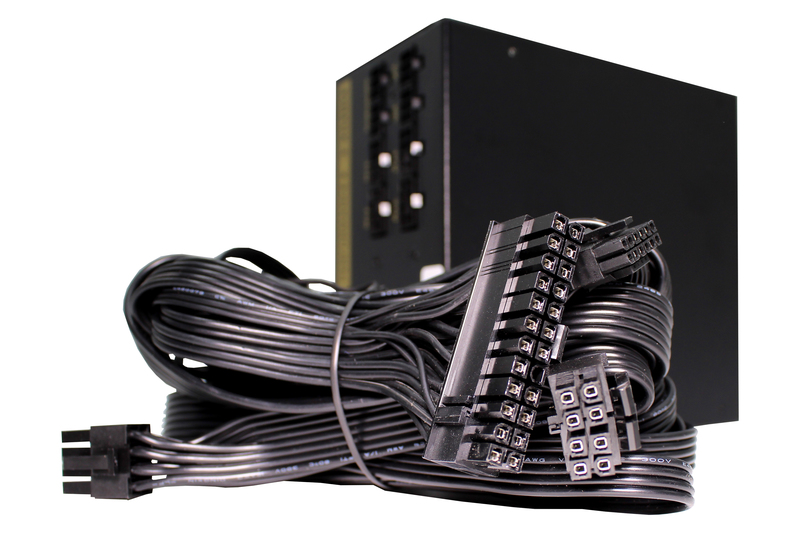

The semi-modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.

XN173

Article features

  • 12VHPWR (PCIe Gen 5.0)
  • Extremely silent cooling: large 140mm fan
  • Excellent air flow design for a better heat dissipation
  • Modular cable management
  • Following safety design:
  1. OVP (Over Voltage Protection)
  2. UVP (Under Voltage Protection)
  3. OCP (Over Current Protection)
  4. OTP (Over Temperature Portection)
  5. SCP (Short Circuit Protection)
  6. OLP (Over Load Protection
  • Low stand-by consumption
  • high energy efficiency: 80+ GOLD® and EcoPSU certified (complies with ErP2014 norm)
  • Active-PFC

Technical data

General data

Peak Power (W) -
Form factor ATX 12V Version 3.0
Voltage (Vac) -
Model Performance X+ | XP750MR9.2
Frequency (Hz) -
Input current (A) -
PFC active

open all / close all

Output
+3.3V (A) 20.0A
+5V (A) 20.0A
+12V1 (A) 62.5A
-12V (A) 0.3A
+5Vsb (A) 3.0A
Max. combined power 12V (W) -
Max. combined power 3.3V + 5V (W) -
+12V2 (A) -
Fan / Cooling technology
Bearing technology FDB
Fan size (mm) 140
Protection
OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
Eco / Efficiency
80PLUS certification Gold
Efficiency (%) at 230V, 20% load 91%
Efficiency (%) at 230V, 50% load 93%
Efficiency (%) at 230V, 100% load 92%
Environmental directives
ErP
WEEE
RoHS
Cable management / Connectors
Modular cable management
Cable length to mainboard (mm) -
Cable length to first connector (mm) -
Maximum cable length (mm) -
Sleeved cables
No. of cables -
ATX-Motherboard (20+4-pin) -
P4+4 (CPU) 1
P8 (CPU) 1
PCI-E 6-pin (GPU) 1
PCI-E 6+2-pin (GPU) 3
PATA 4-pin -
SATA 15-pin (HDD, Drives) 6
FDD (Floppy) -
Logistics data, RRP
Range Performance X+
Article number XN173
EAN code 4044953503740
Dimensions, package (L x W x H), (mm) -
Gross weight, package (kg) -
Pieces per packaging unit -
Dimensions, shipping box (L x W x H), (mm) -
Gross weight, shipping box (kg) -
