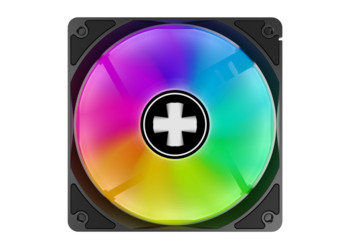

The Xilence 120mm LED case fan adds another must-have
for gamers to the portfolio of the Performance A+ series
and brings light into the inside of the PC.
With its 3PIN ARGB M/B connector being linked to the
equivalent connector on the mainboard, the fan’s color
scheme can be controlled.

XF063


Product image 1 Product image 2 Product image 3 Product image 4 Product image 5 Product image 6 Product image 7 Product image 8 Product image 9

Contact

Article features


- Classy black and white design
- Optimal performance in every situation
- Hydro bearing LED PWM-fan ARGB
- LED-effect with seven different colour options during operation
- Airflow-optimized rotor blades


Technical data

General data

Model Performance A+ | 120mm ARGB
Dimensions (mm) 120
Fan speed @ 12V (rpm) 500 - 1500 ± 10%

open all / close all

Mechanical specifications
Dimensions (L x W x H), (mm) 120 x 120 x 25
Bearing technology FDB
Weight incl. fixed cables (kg) 0.13
Cables / Connectors
Connector 4 pin + ARGB 3 Pin M/B
Cable length (mm) 400
Performance / Noise
Air flow @ 12V (cfm / m3/h) 70 / 119
Noise level @ 12V (dB(A)) 18.0 - 32.5
Electrical specifications
Rated voltage DC (V) -
Operating voltage DC (V) -
Accessories
Screws 4
Service
Warranty (Years) 2
Logistics data, RRP
Article number XF063
Range Performance A+
EAN code 4044953502934
Dimensions, package (L x W x H), (mm) 135 x 30 x 125
Gross weight, package (kg) 0.16
Pieces per packaging unit 80
Dimensions, shipping box (L x W x H), (mm) 350 x 290 x 345
Gross weight, shipping box (kg) 14.2
