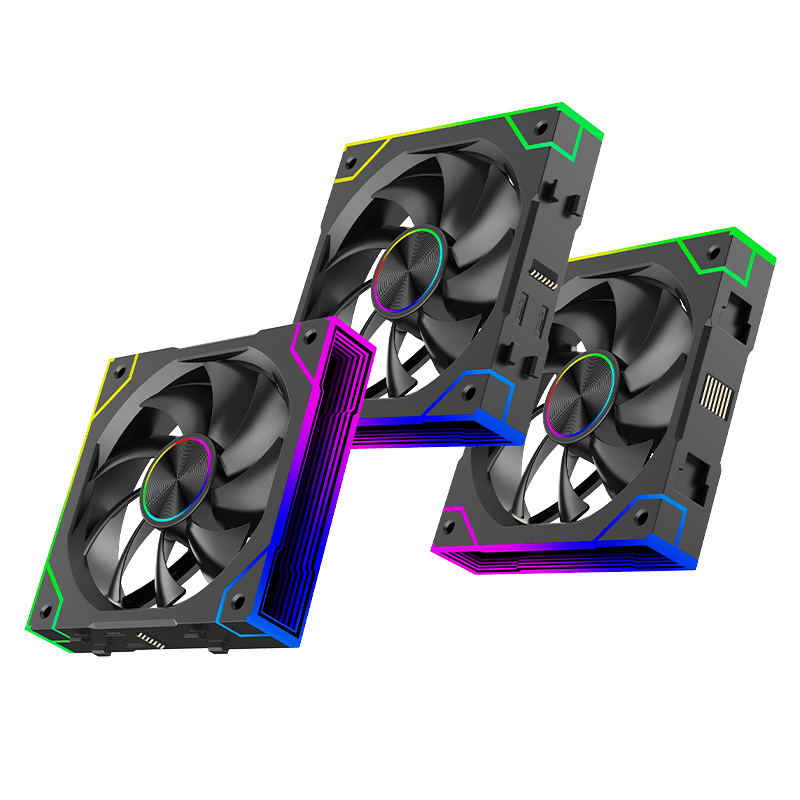

The XPF360.ARGB is a 3-pack of 120mm PWM ARGB fans. The advanced daisy chain design allows for seamless fan-to-fan connection via a pin-to-pin locking mechanism, greatly simplifying installation and optimizing cable management for a particularly tidy LED system.
The seamless Infinity Mirror design creates vivid, high-density, multi-layered lighting effects with flawless mirror reflections for an impressive visual experience.
At the same time, the hydro-bearing technology ensures a long service life and virtually silent operation, even under continuous load, thanks to minimal friction and vibration.
3 x 120mm | PWM | Daisy-Chain | Infinity Mirror | REVERSE

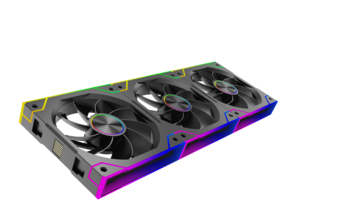

XF073 | XPF360R.ARGB120mm | PWM | ARGB
XF092 | XPF120G.ARGB.PWM120mm | PWM | ARGB | Black
XF063 | XPF120.ARGB120mm | PWM | ARGB | White
XF064 | XPF120.W.ARGB120mm | PWM | ARGB | Reverse | White
XF066 | XPF120R.W.ARGB120mm | PWM | ARGB | Reverse | Black
XF065 | XPF120R.ARGB120mm | PWM | ARGB

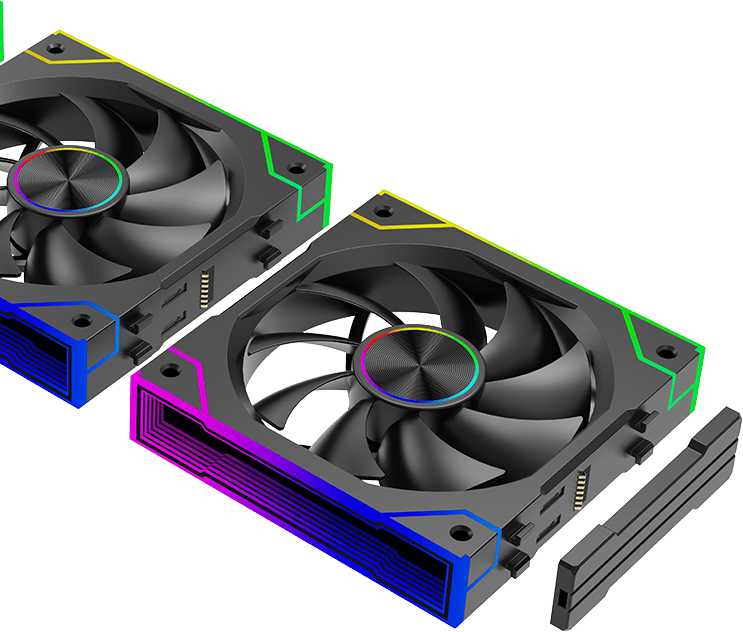

XF083 | XPF120X.ARGBDaisy-Chain Design
The integrated daisy-chain connection simplifies installation and significantly reduces cable congestion, providing a tidy and efficient cable management solution.
Seamless Infinity Mirror
Creates vibrant, high-density, multi-layered lighting effects.
Durable & Quiet
Hydro bearings reduce friction and suppress noise, ensuring long-lasting, silent operation.
High Airflow
Precisely shaped and angled fan blades maximize airflow for efficient heat dissipation.
ARGB Synchronization
Supports 5V 3-pin ARGB connections on major motherboard brands for full-system lighting synchronization.
PWM Temperature Control
Supports 4-pin PWM motherboard headers for smart, automatic fan speed regulation.
| Model | Gaming Series | XPF360.ARGB |
| Dimensions (mm) | 125 × 360 × 25 |
| Fan speed @ 12V (rpm) | 1100-2000 |
| Color | - |
| Dimensions (L x W x H), (mm) | 125 × 360 × 25 |
| Bearing technology | Hydraulic |
| Weight incl. fixed cables (kg) | 0.498 |
| Connector | 4PIN PWM + 3pin, 5V ARGB |
| Cable length (mm) | 600 |
| Air flow @ 12V (cfm / m3/h) | 64 |
| Noise level @ 12V (dB(A)) | 27dB(A) |
| Rated voltage DC (V) | - |
| Operating voltage DC (V) | 7~13.2V |
| Screws | 12 |
| Warranty (Years) | 2 |
| Article number | XF072 |
| Range | Gaming Series |
| EAN code | 4044953504358 |
| Dimensions, package (L x W x H), (mm) | 129 × 87 × 150 |
| Gross weight, package (kg) | 0.64 |
| Pieces per packaging unit | 24 |
| Dimensions, shipping box (L x W x H), (mm) | 400 × 363 × 340 |
| Gross weight, shipping box (kg) | 15.36 |
