XF037 | XPF80.R


The Xilence Performance C Series excels with an extraordinary price-performance ratio and a very good proficiency combined with a low noise developement. The black and red case fans, all equipped with a hydro bearing are available in 3 different sizes.
XF037


Product image 1 Product image 2


Article features


  • Optimal performance in every situation
  • Hydro bearing fan
  • Airflow-optimized rotor blades


      Technical data

      General data

      Model Performance C | 80 mm
      Dimensions (mm) 80
      Fan speed @ 12V (rpm) 1.500 ± 10%

      open all / close all

      Mechanical specifications
      Dimensions (L x W x H), (mm) 80 x 80 x 25
      Bearing technology Hydro Bearing
      Weight incl. fixed cables (kg) 58
      Cables / Connectors
      Connector Small 3 PIN + BIG 4 PIN
      Cable length (mm) 340
      Performance / Noise
      Air flow @ 12V (cfm / m3/h) 18.61 / 31,64
      Noise level @ 12V (dB(A)) max. 17.5
      Electrical specifications
      Rated voltage DC (V) 12
      Operating voltage DC (V) 6 ~ 13.8
      Accessories
      Screws 4
      Service
      Warranty (Years) 2
      Logistics data, RRP
      Article number XF037
      Range Performance C
      EAN code 4044953500855
      Dimensions, package (L x W x H), (mm) 90 x 30 x 100
      Gross weight, package (kg) 0,082
      Pieces per packaging unit 120
      Dimensions, shipping box (L x W x H), (mm) 420 x 300 x 340
      Gross weight, shipping box (kg) 10,3


      Downloads


      Documents

      Datasheet

      Properties

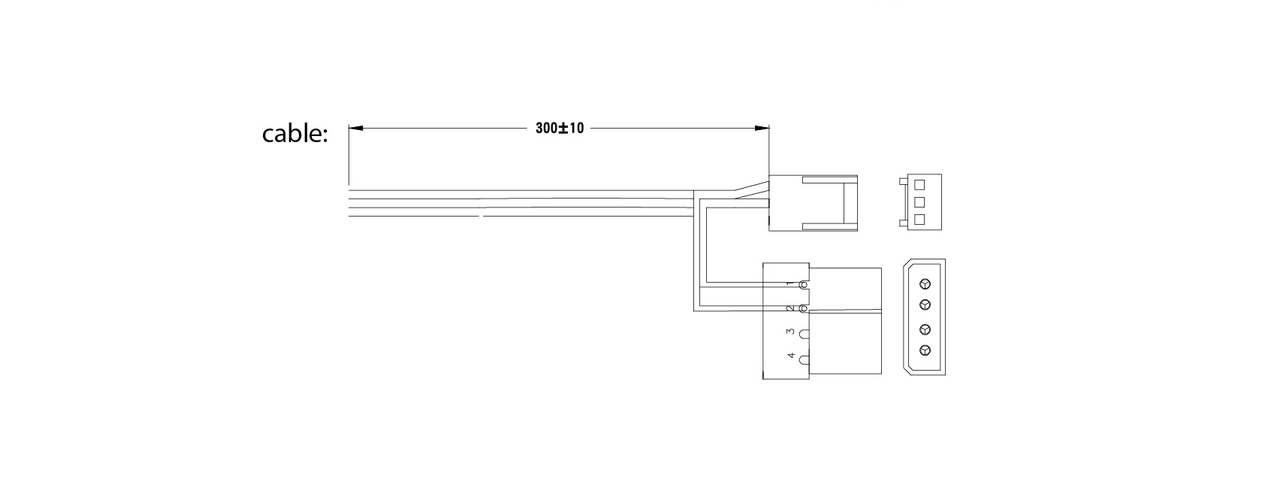

      Cable connection
      Cable connection
