XF039 | XPF120.R


The Xilence Performance C Series excels with an extraordinary price-performance ratio and a very good proficiency combined with a low noise developement. The black and red case fans, all equipped with a hydro bearing are available in 3 different sizes.
XF039

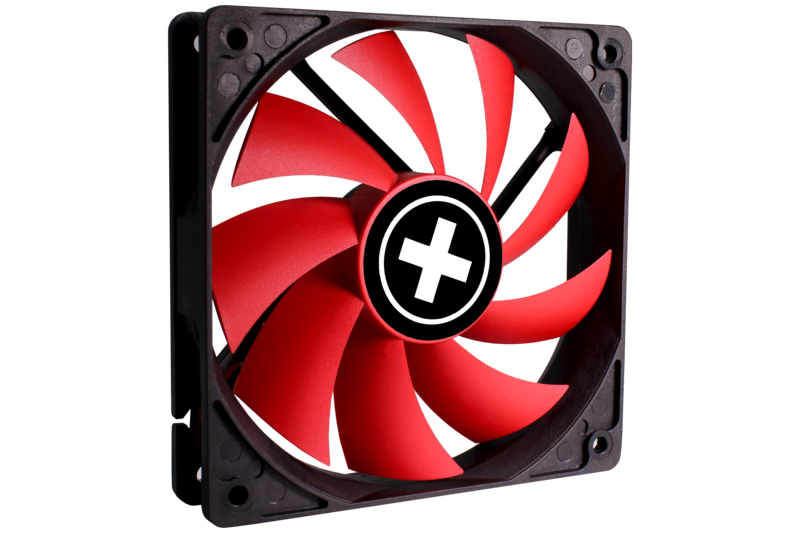

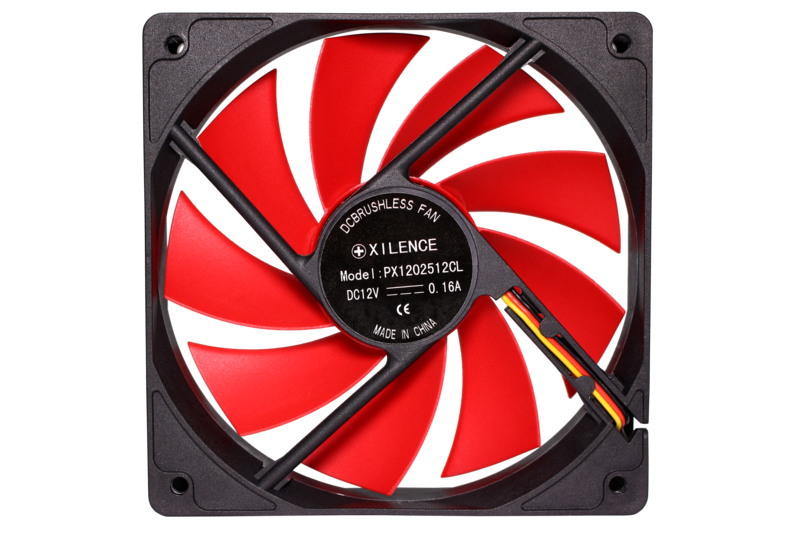

Product image 1 Product image 2


Article features


  • Optimal performance in every situation
  • Hydro bearing fan
  • Airflow-optimized rotor blades


      Technical data

      General data

      Model Performance C | 120mm
      Dimensions (mm) 120
      Fan speed @ 12V (rpm) 1.300 ± 10%

      open all / close all

      Mechanical specifications
      Dimensions (L x W x H), (mm) 120 x 120 x 25
      Bearing technology Hydro Bearing
      Weight incl. fixed cables (kg) 0,112
      Cables / Connectors
      Connector Small 3 PIN + BIG 4 PIN
      Cable length (mm) 350
      Performance / Noise
      Air flow @ 12V (cfm / m3/h) 44.71 / 76,01
      Noise level @ 12V (dB(A)) max. 22
      Electrical specifications
      Rated voltage DC (V) 6
      Operating voltage DC (V) 6 ~ 13.8
      Accessories

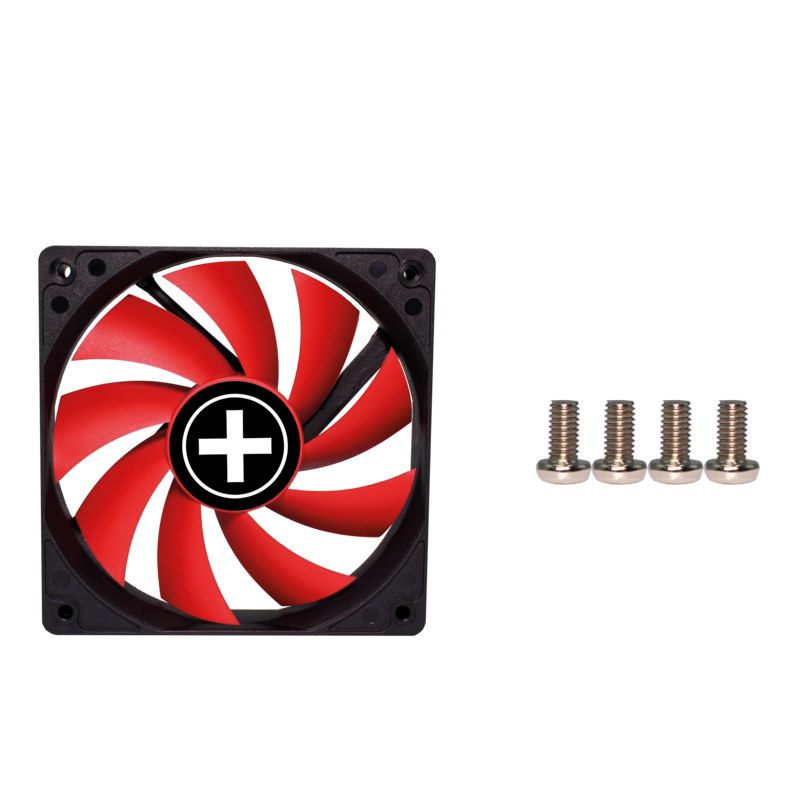

      Screws 4
      Service
      Warranty (Years) 2
      Logistics data, RRP
      Article number XF039
      Range Performance C
      EAN code 4044953500879
      Dimensions, package (L x W x H), (mm) 130 x 30 x 140
      Gross weight, package (kg) 0,142
      Pieces per packaging unit 80
      Dimensions, shipping box (L x W x H), (mm) 530 x 310 x 340
      Gross weight, shipping box (kg) 12,1


      Downloads


      Documents

      Datasheet

      Properties

      Cable connection
      Cable connection
