3PIN Case Fans | XPF140.R

XF050 | XPF140.R

The Xilence Performance C Series excels with an extraodinary price-performance ratio and a very good proficency combined with a low noise developement. The black and red case fans, all equipped with a hydro bearing are available in three different sizes.
XF050

Article features

  • Optimal performance in every situation
  • Hydro bearing fan
  • Airflow-optimized rotor blades

Technical data

General data

Model Performance C | XPF140.R
Dimensions (mm) 140
Fan speed @ 12V (rpm) 900 ± 10%
Color Black

open all / close all

Mechanical specifications
Dimensions (L x W x H), (mm) 140 x 140 x 25
Bearing technology FDB
Weight incl. fixed cables (kg) 0.14
Cables / Connectors
Connector 3 pin + 4 pin molex
Cable length (mm) 350
Performance / Noise
Air flow @ 12V (cfm / m3/h) 41.37 / 70.33
Noise level @ 12V (dB(A)) max. 20
Electrical specifications
Rated voltage DC (V) 12
Operating voltage DC (V) 6 - 13.8
Accessories
Screws 4
Service
Warranty (Years) 2
Logistics data, RRP
Article number XF050
Range Performance C
EAN code 4044953501135
Dimensions, package (L x W x H), (mm) 190 x 30 x 145
Gross weight, package (kg) 0.19
Pieces per packaging unit 80
Dimensions, shipping box (L x W x H), (mm) 340 x 350 x 600
Gross weight, shipping box (kg) 16.12

Downloads

Datasheet
Datasheet
Download

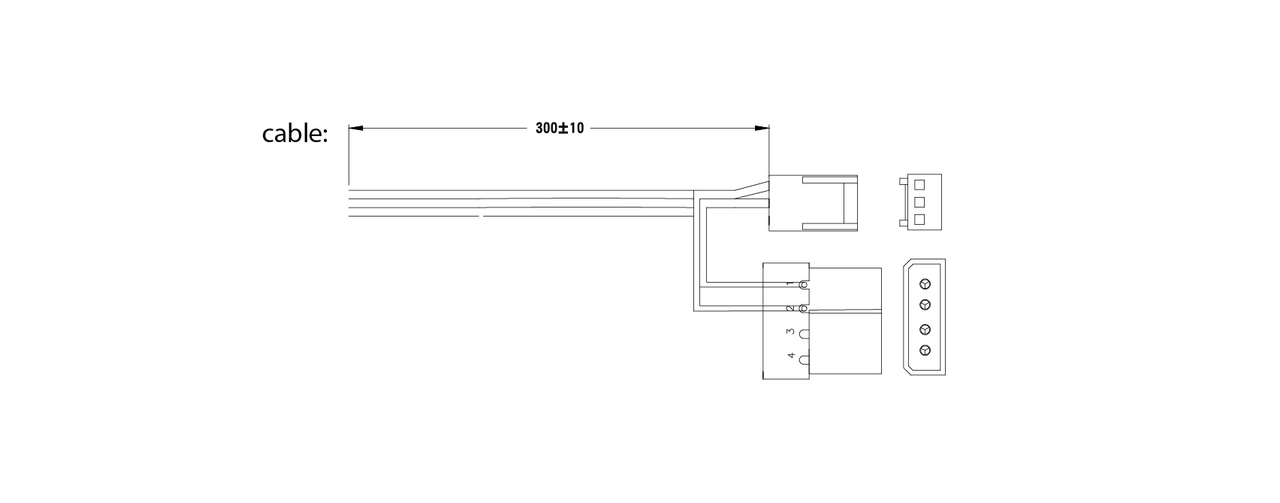

Cable connection
Cable connection
Download
