XF040 | XPF80.R.PWM


The Xilence Performance C PWM fan series excels with an extraordinary price-performance ratio and a very good proficiency combined with a lo noise development. The black and red case fans are equipped with PWM function as well as high-quality hydro bearings and are available in 3 different sizes.
XF040


Product image 1 Product image 2


Article features


  • Optimal performance in every situation
  • Hydro bearing fan
  • Airflow-optimized rotor blades
  • PWM function


    Technical data

    General data

    Model Performance C | 80mm PWM
    Dimensions (mm) 80
    Fan speed @ 12V (rpm) 800 ~ 1.800 ± 10%

    open all / close all

    Mechanical specifications
    Dimensions (L x W x H), (mm) 80 x 80 x 25
    Bearing technology Hydro Bearing
    Weight incl. fixed cables (kg) 0,062
    Cables / Connectors
    Connector 4 PIN
    Cable length (mm) 440
    Performance / Noise
    Air flow @ 12V (cfm / m3/h) 21.8 / 37,06
    Noise level @ 12V (dB(A)) max. 20
    Electrical specifications
    Rated voltage DC (V) 12
    Operating voltage DC (V) 6 ~ 13.8
    Accessories
    Screws 4
    Service
    Warranty (Years) 2
    Logistics data, RRP
    Article number XF040
    Range Performance C
    EAN code 4044953500886
    Dimensions, package (L x W x H), (mm) 90 x 30 x 100
    Gross weight, package (kg) 0,110
    Pieces per packaging unit 120
    Dimensions, shipping box (L x W x H), (mm) 330 x 290 x 400
    Gross weight, shipping box (kg) 9,8


    Downloads


    Documents

    Datasheet

    Properties

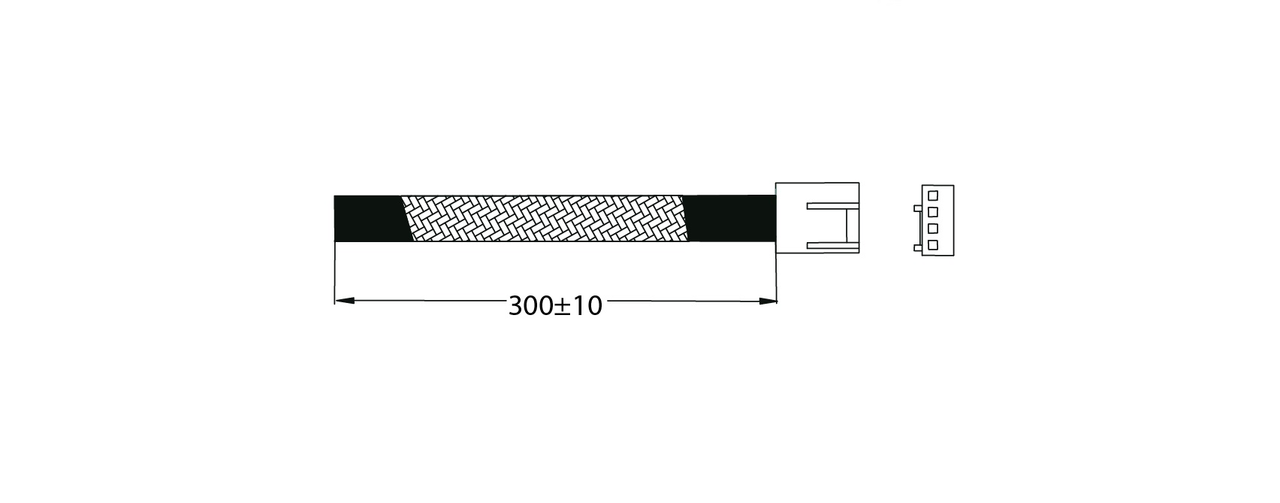

    Cable connection
    Cable connection
