PWM Case Fans | XPF140.R.PWM

XF051 | XPF140.R.PWM

The Xilence Performance C PWM fan series excels with an extraordinary price-performance ratio and a very good proficiency combined with a lo noise development. The black and red case fans are equipped with PWM function as well as high-quality hydro bearings and are available in 3 different sizes.
XF051

Article features

  • Optimal performance in every situation
  • Hydro bearing fan
  • Airflow-optimized rotor blades
  • PWM function

    Technical data

    General data

    Model Performance C | XPF140.R.PWM
    Dimensions (mm) 140
    Fan speed @ 12V (rpm) 700 - 1500 ± 10%
    Color Black

    open all / close all

    Mechanical specifications
    Dimensions (L x W x H), (mm) 140 x 140 x 25
    Bearing technology FDB
    Weight incl. fixed cables (kg) 0.15
    Cables / Connectors
    Connector 4 pin
    Cable length (mm) 410
    Performance / Noise
    Air flow @ 12V (cfm / m3/h) 62.05 / 105.49
    Noise level @ 12V (dB(A)) max. 30
    Electrical specifications
    Rated voltage DC (V) 12
    Operating voltage DC (V) 6 - 13.8
    Accessories
    Screws 4
    Service
    Warranty (Years) 2
    Logistics data, RRP
    Article number XF051
    Range Performance C
    EAN code 4044953501142
    Dimensions, package (L x W x H), (mm) 190 x 30 x 145
    Gross weight, package (kg) 0.19
    Pieces per packaging unit 80
    Dimensions, shipping box (L x W x H), (mm) 340 x 350 x 600
    Gross weight, shipping box (kg) 16.22

    Downloads

    Datasheet
    Datasheet
    Download

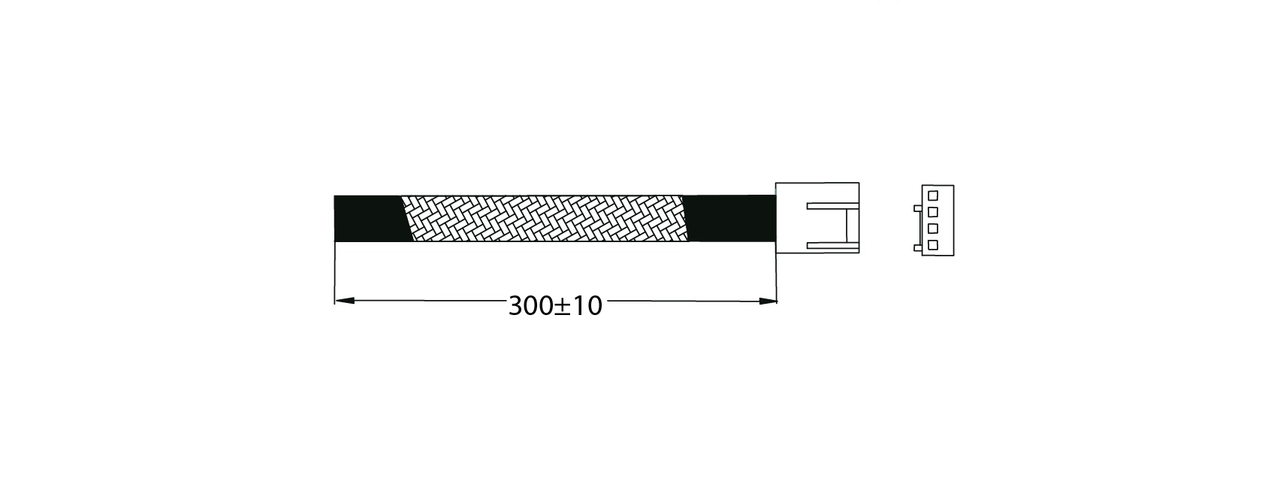

    Cable connection
