LED Case Fans | XPF120.TR

XF046 | XPF120.TR

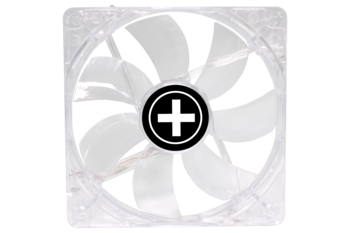

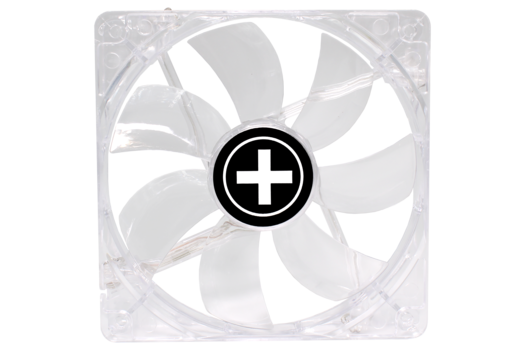

The transparent LED 120mm case fans, part of the Xilence Performance C Series, are available with blue or red LED. The rotor blades are arranged in an especially airflow optimizing way on a hydro bearing.
XF046

Article features

  • Optimal performance in every situation
  • Hydro bearing fan
  • Airflow-optimized rotor blades
  • Transparent with LEDs

    Technical data

    General data

    Model Performance C | XPF120.TR
    Dimensions (mm) 120
    Fan speed @ 12V (rpm) 1800 ± 10%
    Color Transparent

    open all / close all

    Mechanical specifications
    Dimensions (L x W x H), (mm) 120 x 120 x 25
    Bearing technology FDB
    Weight incl. fixed cables (kg) 0.09
    Cables / Connectors
    Connector 3 pin + 4 pin molex
    Cable length (mm) 400
    Performance / Noise
    Air flow @ 12V (cfm / m3/h) 44.71 / 76.01
    Noise level @ 12V (dB(A)) 20.5 - 22
    Electrical specifications
    Rated voltage DC (V) 12
    Operating voltage DC (V) 6 - 13.8
    Accessories
    Screws 4
    Service
    Warranty (Years) 2
    Logistics data, RRP
    Article number XF046
    Range Performance C
    EAN code 4044953500930
    Dimensions, package (L x W x H), (mm) 130 x 30 x 140
    Gross weight, package (kg) 0.12
    Pieces per packaging unit 80
    Dimensions, shipping box (L x W x H), (mm) 530 x 310 x 340
    Gross weight, shipping box (kg) 10.9

    Downloads

    Datasheet
    Datasheet
    Download

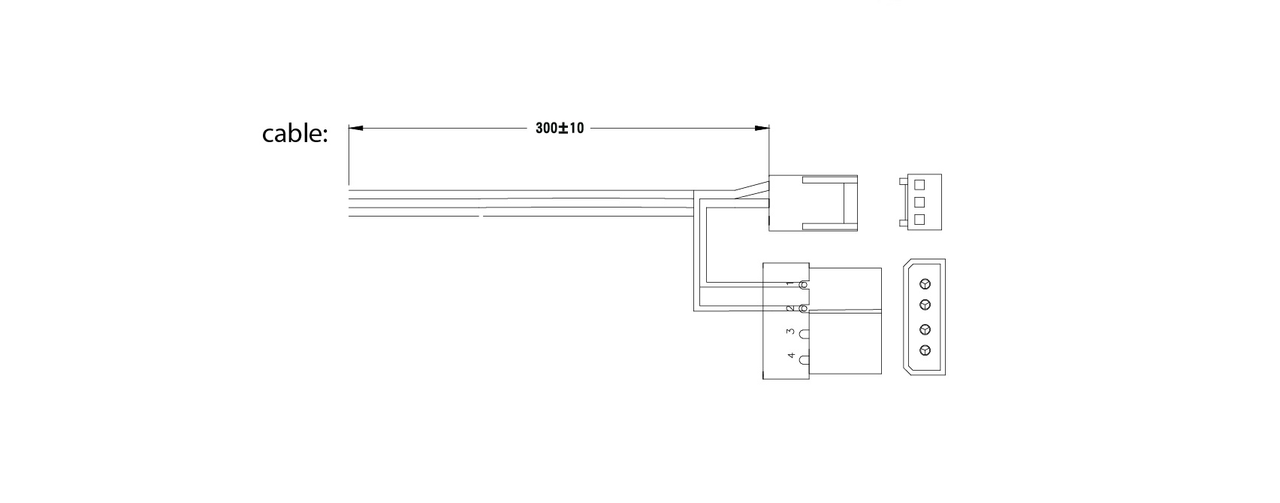

    Cable connection
    Cable connection
    Download
