XC129 | M403PRO.ARGB

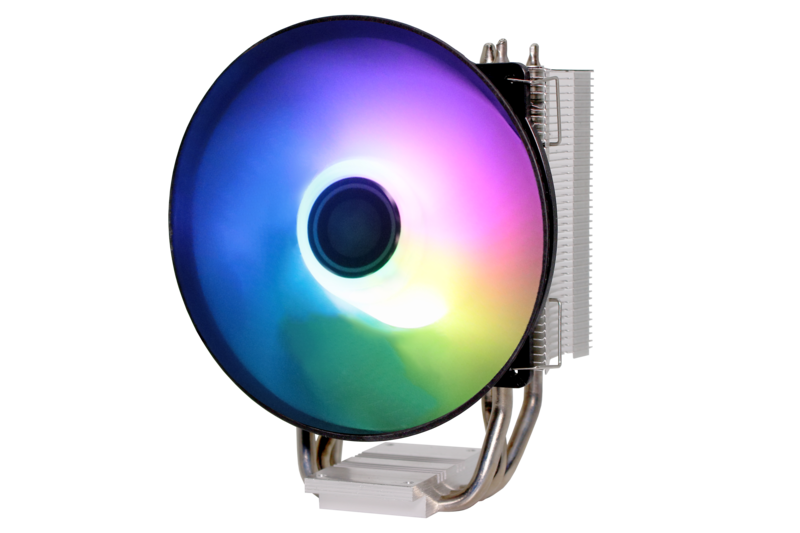

The compact M403PRO.ARGB with its addressable RGB colour system is the new multi-socket cooler from the Performance C Series. Three high-performance copper heat pipes dissipate 150W waste heat to the innumerable cooling fins. These reasons make the cooler ideal for powerful multi-core processors. Additionally, the heat transmission between CPU and cooler is very evenly and efficient due to the direct contact of heat pipes and CPU. The mounting material make this cooler suitable for all current AMD and INTEL sockets.

The scope of delivery not only includes the heat sink tower, as well as the 120mm PWM fan but also a holding module for Intel sockets LGA1150/1151/1155/1156/1200/1700/1851, AMD sockets AM4/AM5 and a tube of thermal paste. For the correct installation an illustrated manual is included.

XC129

Article features

  • Silent addressable 120mm RGB fan
  • Three 6mm copper heat pipes for better heat flow
  • Fin Design for high airflow and efficient cooling of the CPU and surrounding components
  • Slight overhang of the fan avoids hotspots
  • Possible mounting of the fan on both sides of the heat sink
  • Suitable for all current AMD and INTEL sockets

ø120mm funnel-shaped ARGB PWM fan

Three 6mm copper heat pipes with direct touch technology

Slight overhang of the fan avoids hotspots

Technical data

General data

Model Performance C | M403PRO.ARGB
Overall dimensions without mounting material (L x W x H), (mm) 120 x 72 x 14
Total weight (kg) 0.42
TDP (W) 150
Socket compatibility Intel: LGA1700 /1851 / 1200 / 1156 / 1155 / 1151 / 1150; AMD: AM5 / AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm) 14.2 - 25.6
Color Black

open all / close all

Heatsink specifications
Dimensions (L x W x H), (mm) -
Number of fins 40
Fin material Aluminum
Base material Aluminum
Heatpipe number / Diameter (mm) 3 / 6
Fan specifications
Fan dimensions (mm) 120 x 120 x 25
Speed @ 100% PWM (rpm) 500 - 1800 ± 10%
Bearing technology Hydro Bearing
Rated voltage (V) 12
Connector 4 pin
Cable length (mm) 360 ± 10
Lifespan (h / 25°C) -
Accessories
Thermal grease 1
Service
Warranty (Years) 2
Logistics data, RRP
Article number XC129
Range Performance C
EAN code 4044953502422
Dimensions, package (L x W x H), (mm) 124 x 108 x 156
Gross weight, package (kg) -
Pieces per packaging unit 16
Dimensions, shipping box (L x W x H), (mm) 520 x 455 x 190
Gross weight, shipping box (kg) -
