XC056 | M704PRO.ARGB

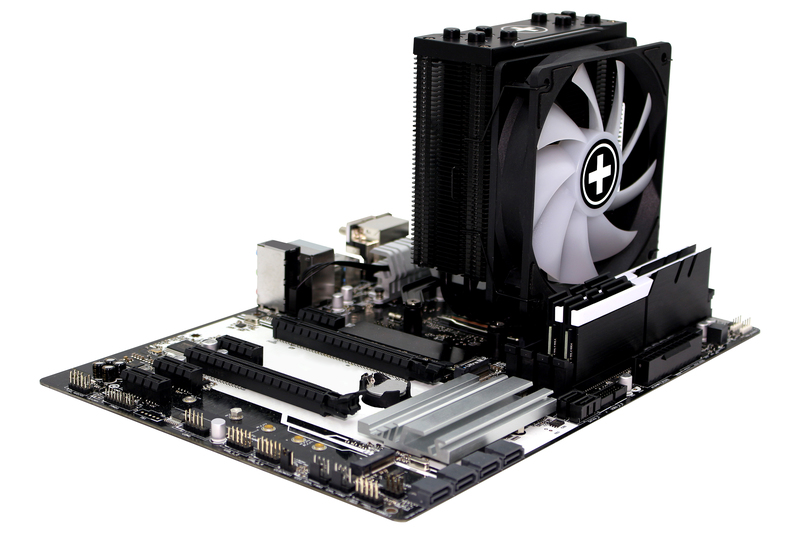

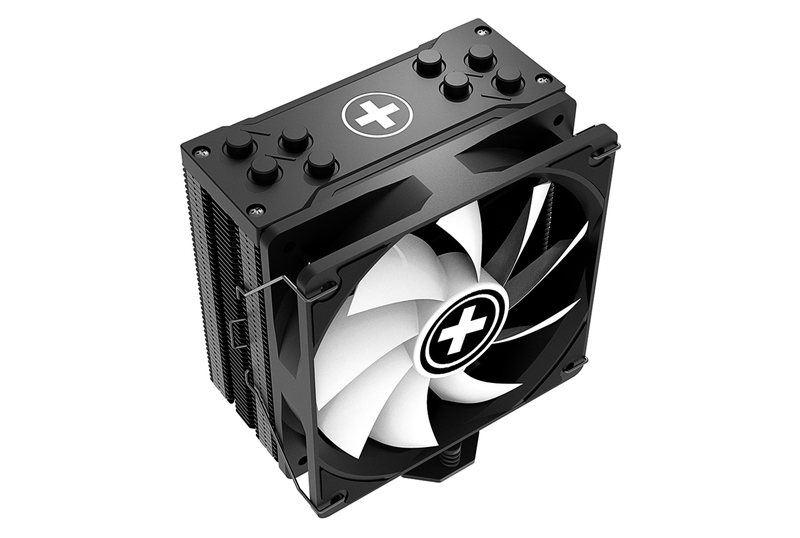

The new M704PRO.ARGB CPU cooler from the Performance A+ series brings light into the inside of the case. In order to highlight the CPU cooler the LED lights of the RGB lightning system sare eperately addressable and furthermore the complete the rest is designed in black. The top cover has a ARGB lighting.


With its 3PIN 5V D/P ARGB M/B connector being linked to the equivalent connector on the mainboard, the fan’s color scheme can be controlled. In case there is no such RGB M/B connector on the mainboard, the M704.ARGB offers the possibility to manage the color scheme via a mini controller (being powered via the S-ATA connector of the PSU).


With this design and its specifications, the M704PRO.ARGB cooler is especially appropriate for gaming systems.

Thanks to the multi-socket design, the cooler can be applied on all current AMD and Intel sockets. Included in the scope of delivery is – besides heatsink and 120mm PWM fan – mounting material for sockets LGA1150/1151/1155/1156/1200/1700, LGA2066/2011 and AM4 , illustrated assembly instructions as well as a tube of thermal paste.

XC056

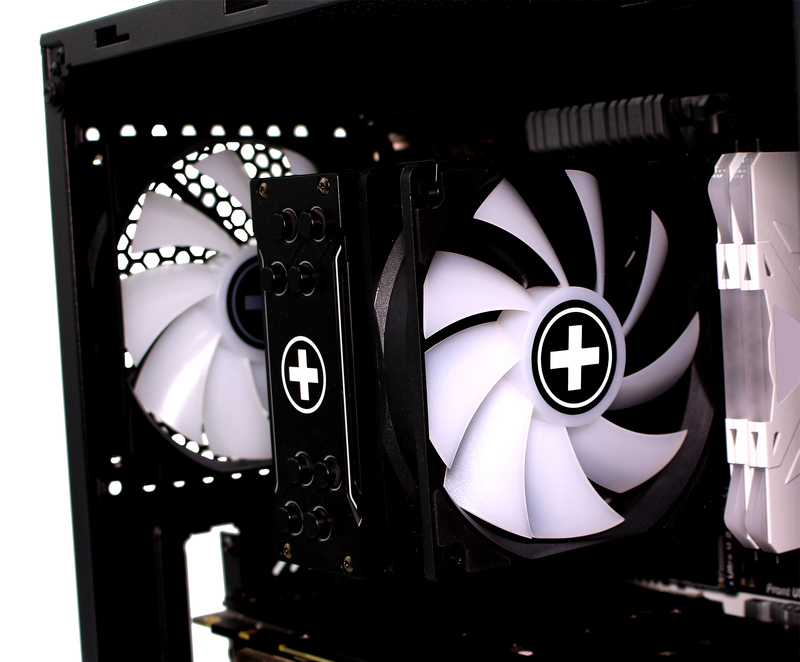

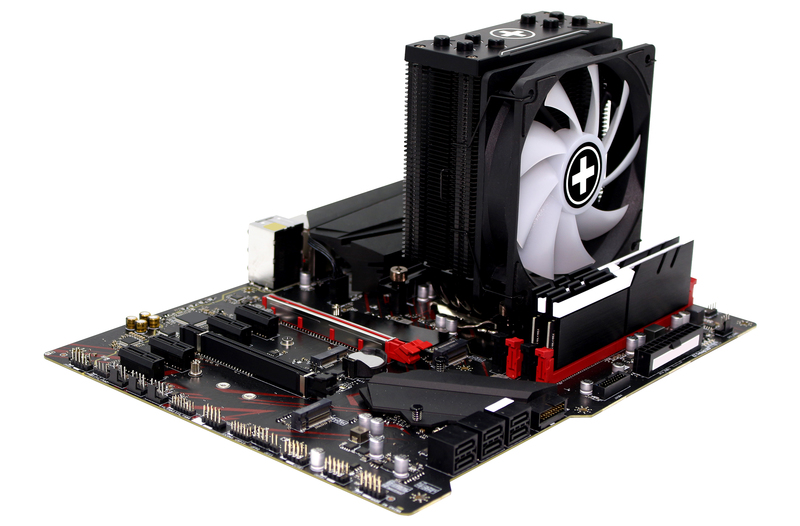

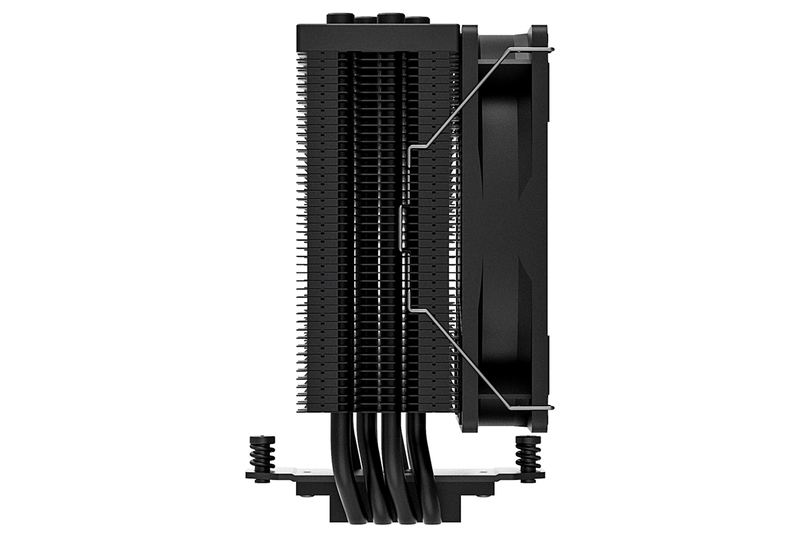

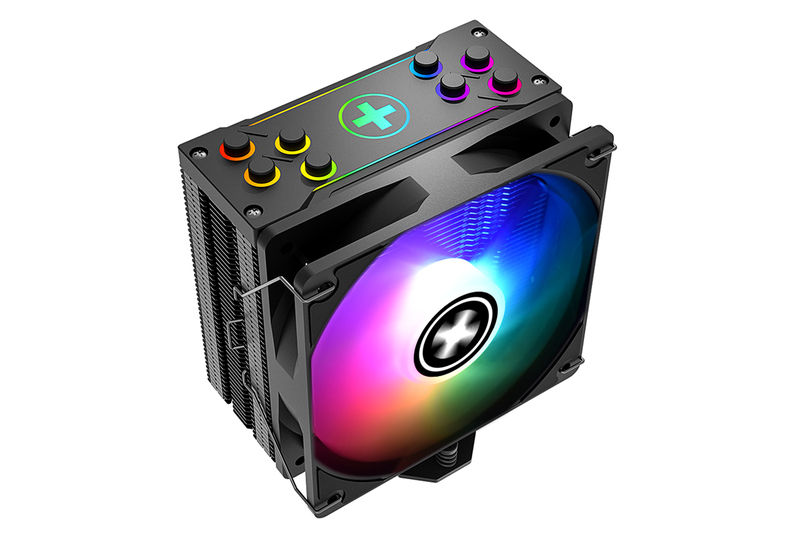

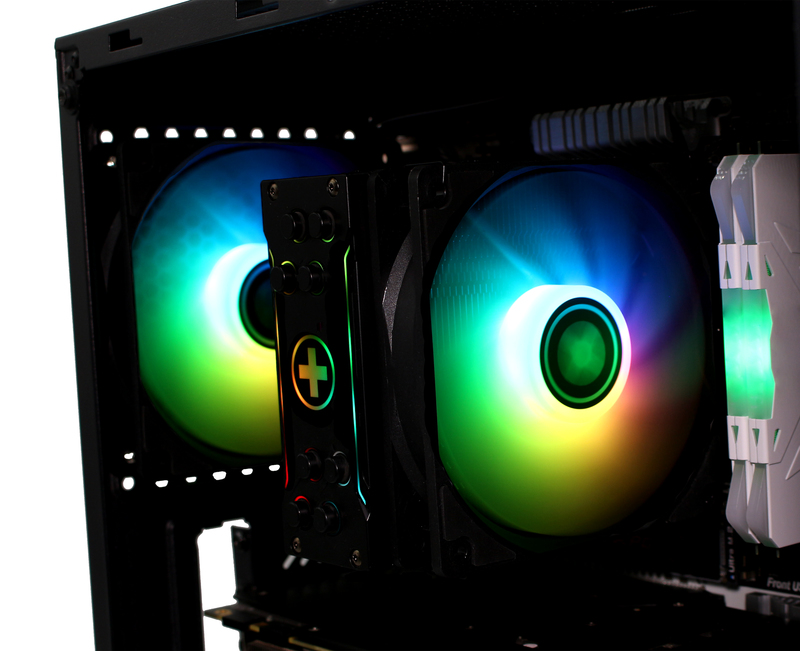

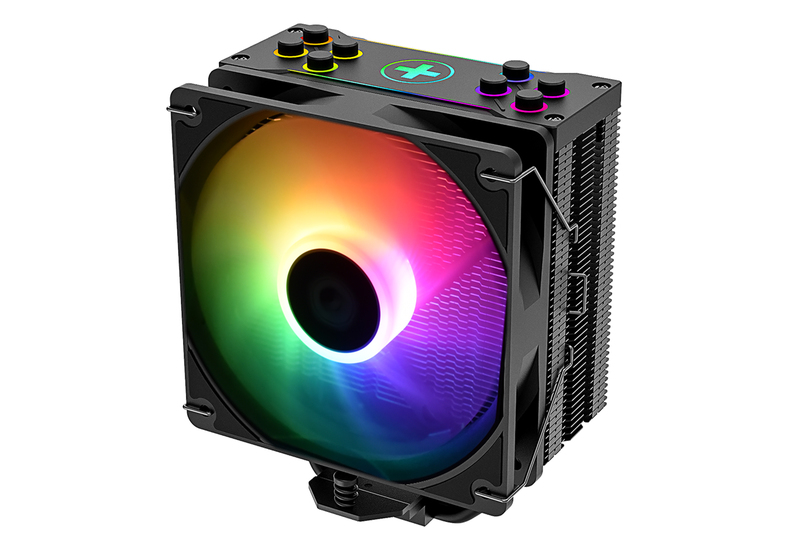

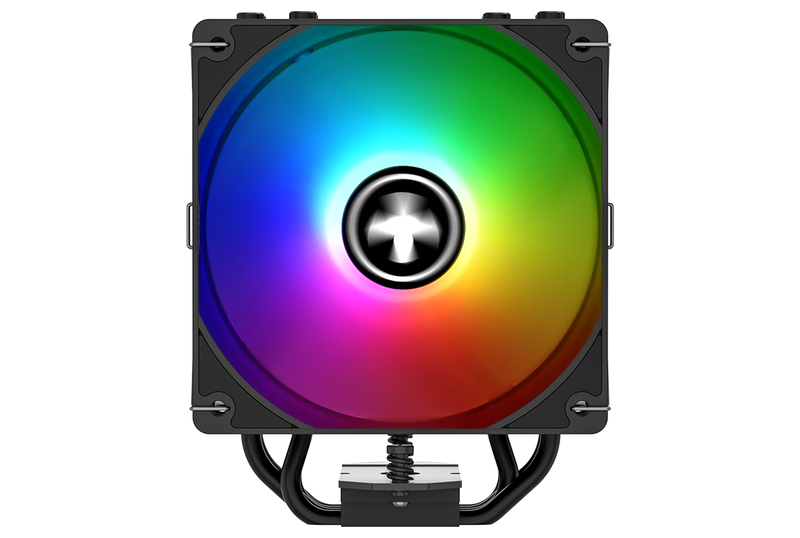

Product image 1 Product image 2 Product image 3 Product image 4 Product image 5 Product image 6 Product image 7

Contact

Article features


  • classy black design with adressable RGB Topcover
  • silent, hydro bearing 120mm ARGB fan
  • black heat-sink

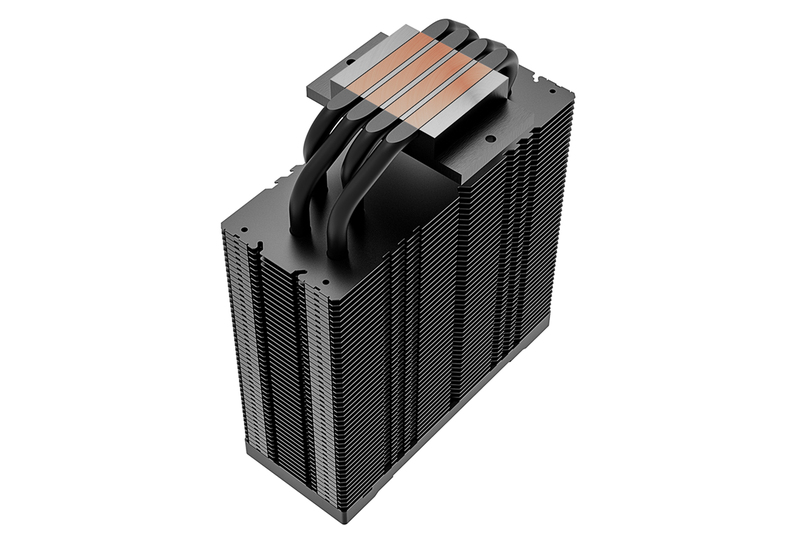

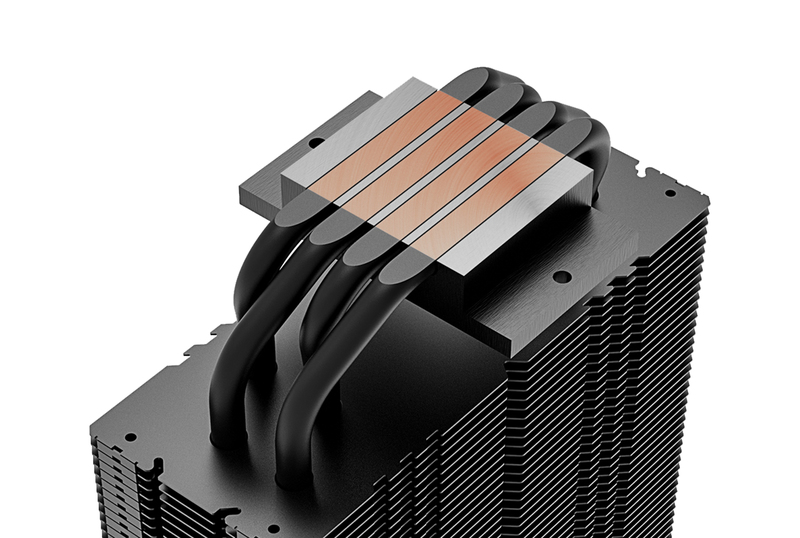

  • four black 6mm copper heat pipes for better heat flow
  • fin Design for high airflow and efficient cooling of the CPU and surrounding components
  • slight overhang of the fan avoids hotspots
  • possible mounting of the fan on both sides of the heat sink
  • suitable for all current AMD and INTEL sockets


Technical data

General data

Model Performance A+ | M704PRO.ARGB
Overall dimensions without mounting material (L x W x H), (mm) 120 x 75 x 160
Total weight (kg) 0,426
TDP (W) 180
Socket compatibility Intel: 2066 / 2011 / 1200 / 1156 / 1155 / 1151 / 1150 / 1700 ; AMD: AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm) 18.0 - 30.2

open all / close all

Heatsink specifications
Dimensions (L x W x H), (mm) -
Number of fins -
Fin material Aluminum
Base material Copper
Heatpipe number / Diameter (mm) 4 / 6
Fan specifications
Fan dimensions (mm) 120 x 120 x 25
Speed @ 100% PWM (rpm) 500 - 1500 ± 10%
Bearing technology FDB
Rated voltage (V) 12
Connector 4 pin
Cable length (mm) -
Lifespan (h / 25°C) -
Accessories
Thermal grease included
Service
Warranty (Years) 2
Logistics data, RRP
Article number XC056
Range Performance A+
EAN code 4044953503023
Dimensions, package (L x W x H), (mm) 147 x 205 x 110
Gross weight, package (kg) 0.9
Pieces per packaging unit -
Dimensions, shipping box (L x W x H), (mm) -
Gross weight, shipping box (kg) -
