XC061 | M705D

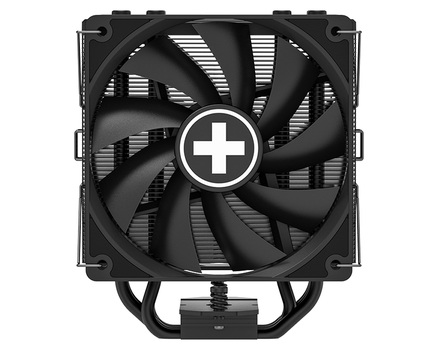

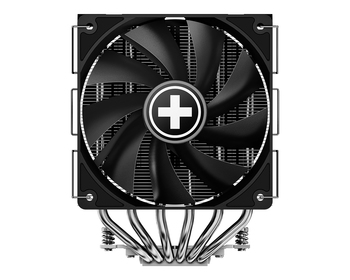

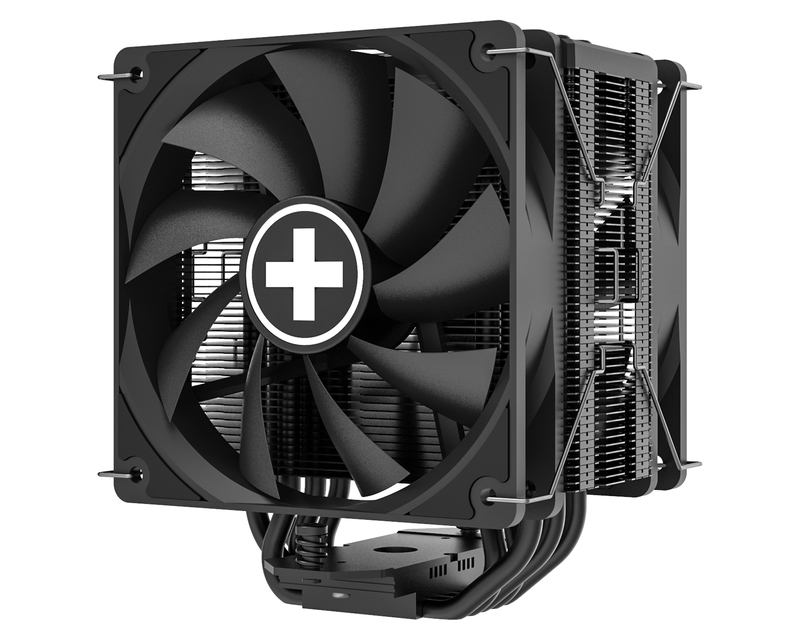

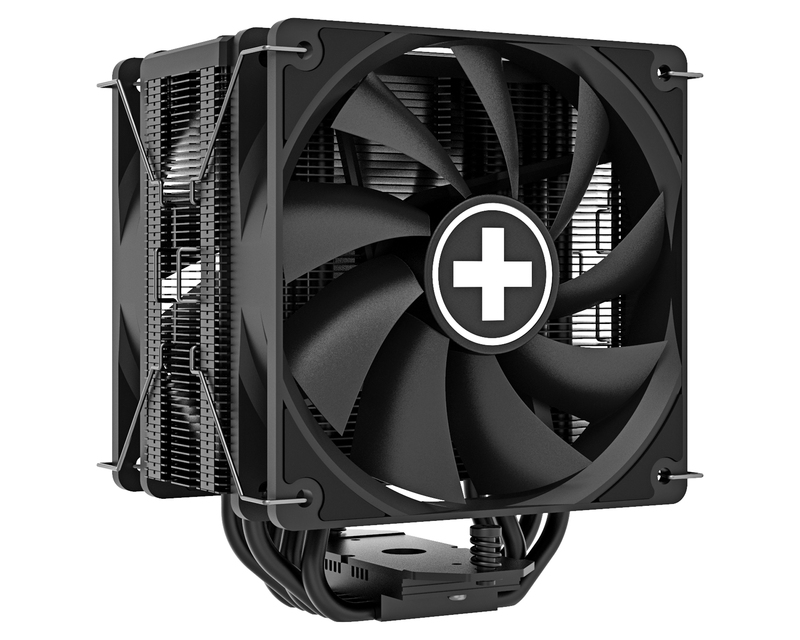

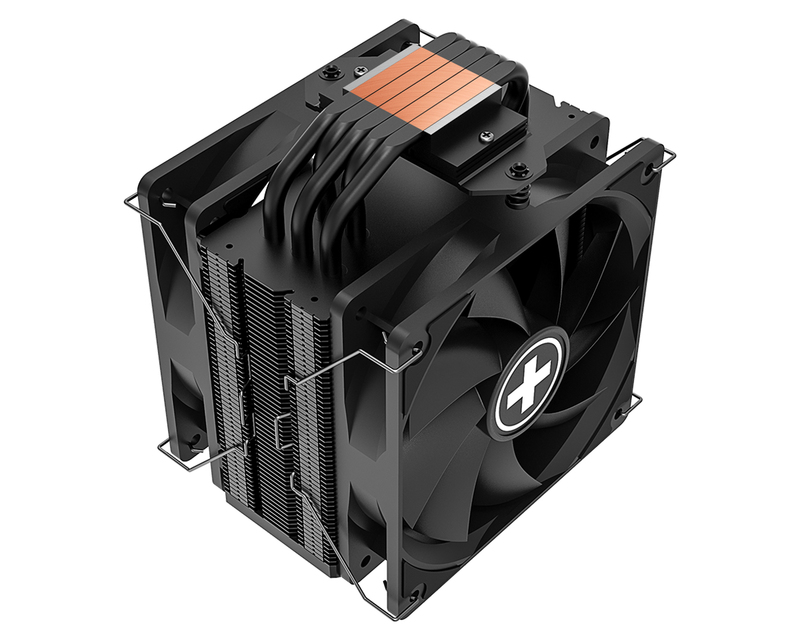

The compact M705D is a tower cooler with double fan from the A+ series. It has four extremely powerful black heat pipes, which dissipate 220W of waste heat to the countless cooling fins and thus predestine it for potent multi-core

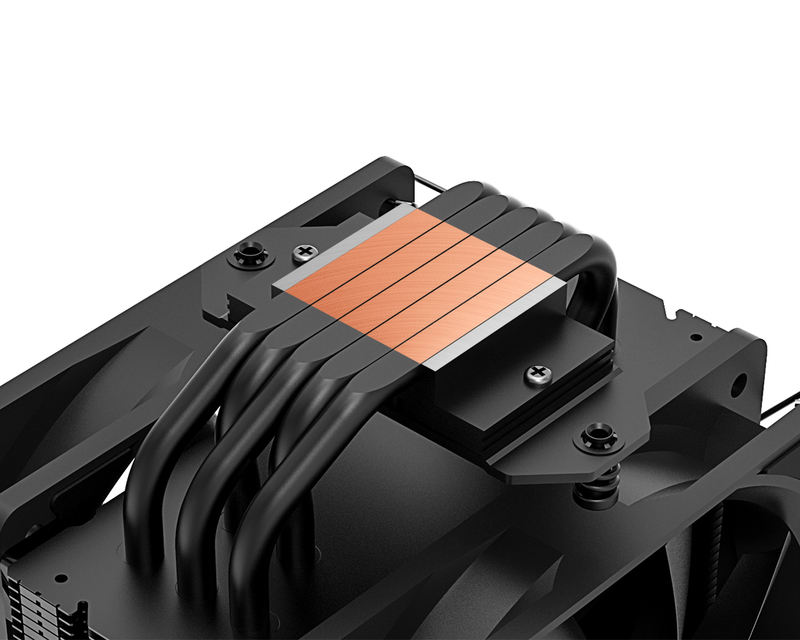

processors. Due to the direct contact of the heat pipes, the heat transfer between CPU and cooler is extremely efficient and very even. Suitable for cooling processors with very high levels of waste heat.
The multi-socket means that the cooler can be used on all current Intel and AMD sockets. In addition to the double heat sink and the two PWM-controlled 120mm fans, the scope of delivery includes a holding module for the LGA socket
1700/2066/2011/1200/1151/1150/1155/1156 / and AMD AM4, illustrated assembly instructions and a tube of thermal paste.

XC061

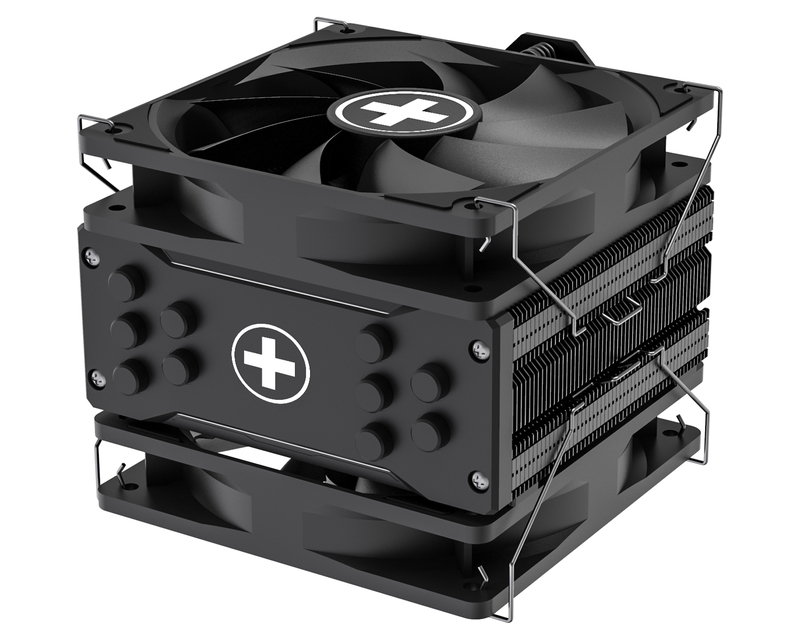

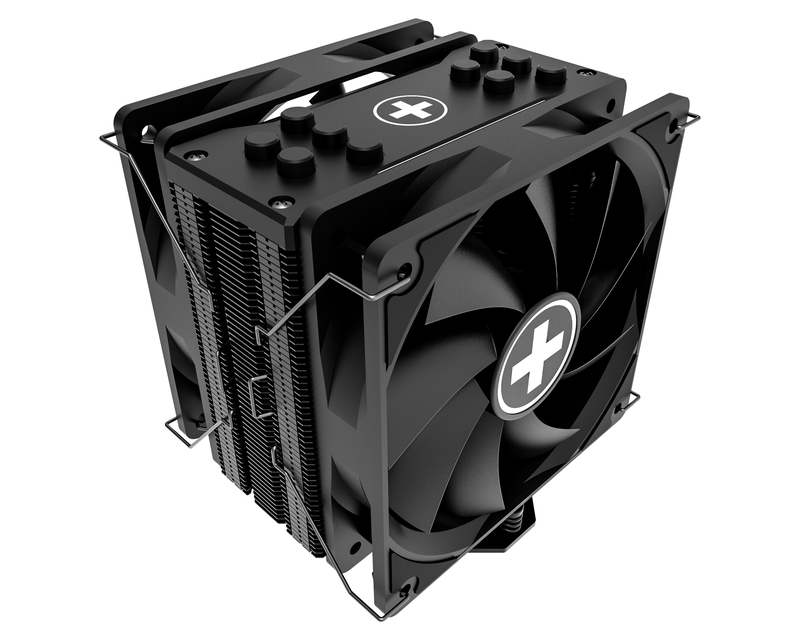

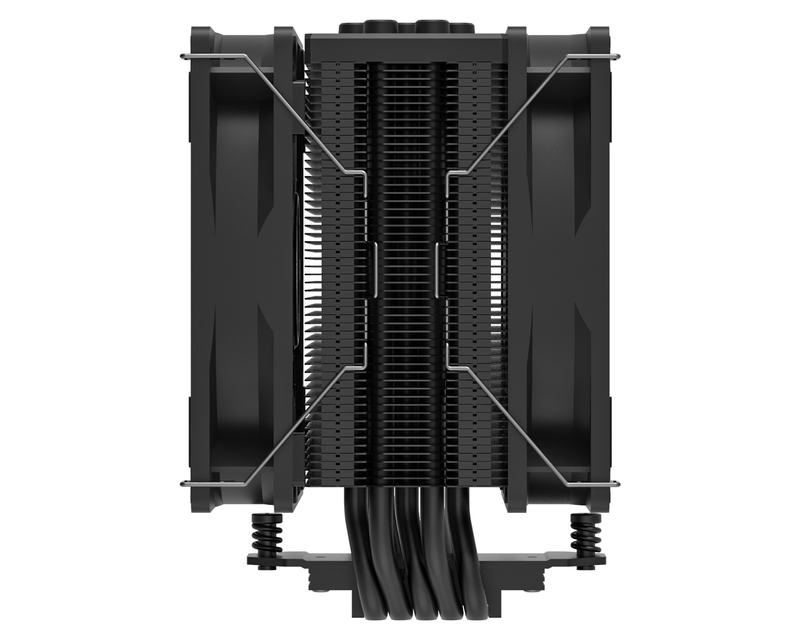

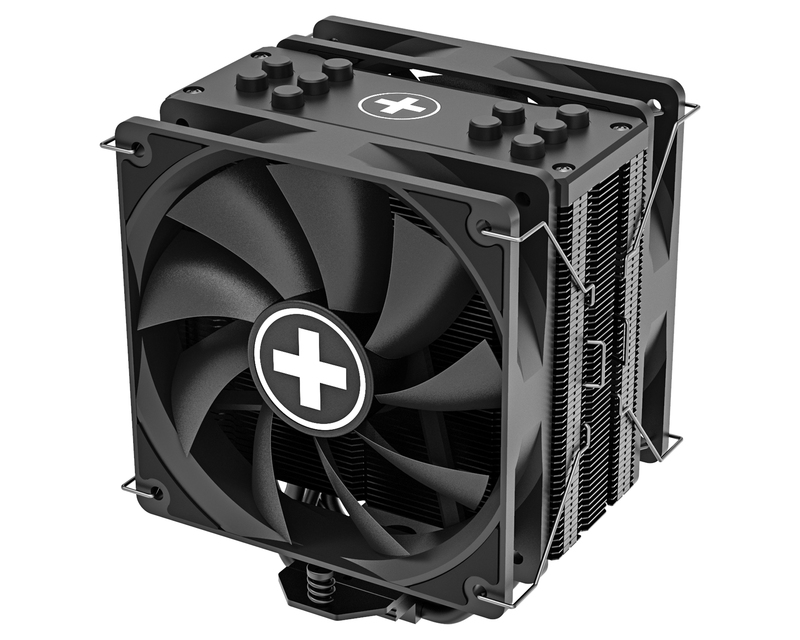

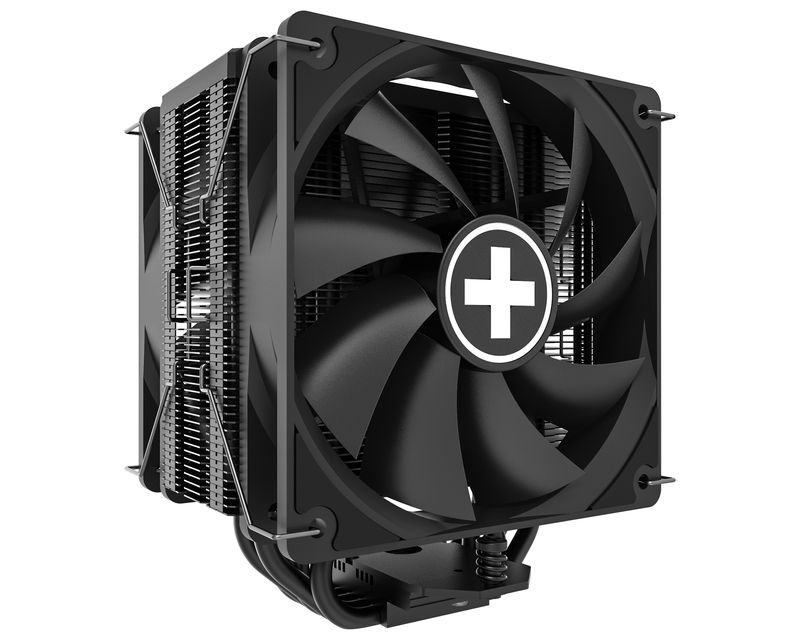

Product image 1 Product image 2 Product image 3 Product image 4 Product image 5 Product image 6 Product image 7 Product image 8 Product image 9 Product image 10 Product image 11

Contact

Article features

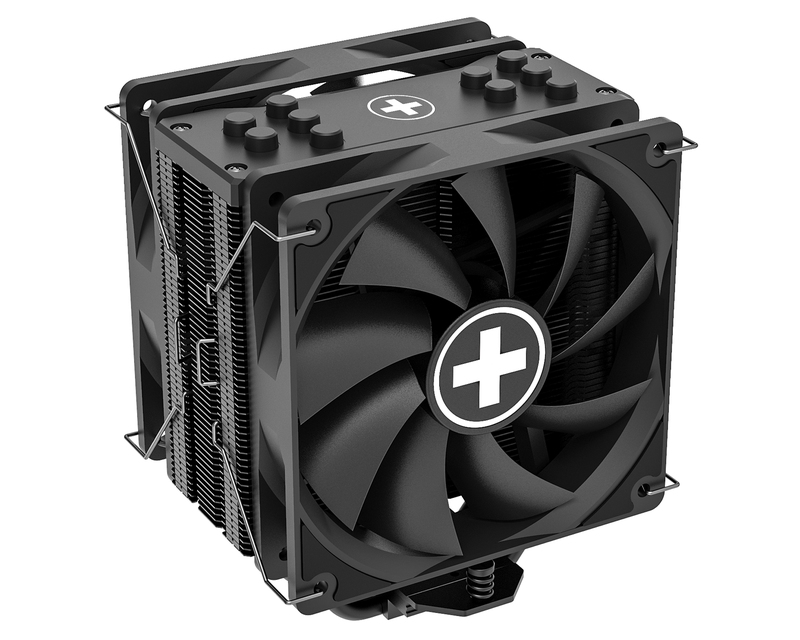

- Elegant black design with top cover

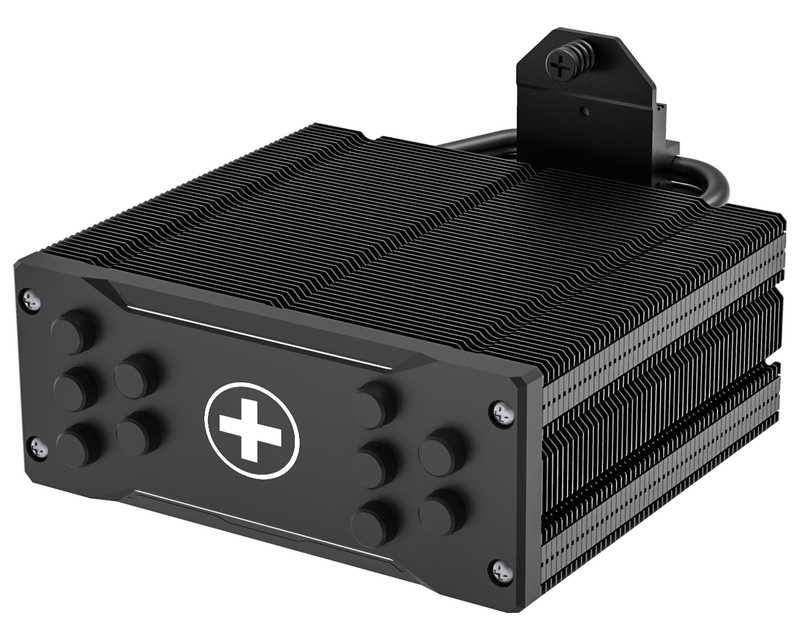

- One heat sink with lamellar design ensure efficient cooling of the CPU and all surrounding components
- Two black 120mm PWM fans, liquid-stored
- Five 6mm copper heat pipes for maximum heat dissipation
- Hotspots are avoided by slightly protruding the fans on the top and bottom
- The fans can be mounted on both sides of the heat sinks
- Suitable for all common AMD & INTEL sockets


Technical data

General data

Model Performance A+ | M705D
Overall dimensions without mounting material (L x W x H), (mm) 128 x 108 x 150mm
Total weight (kg) 0.685
TDP (W) 220
Socket compatibility Intel: 2066 / 2011 / 1200 / 1156 / 1155 / 1151 / 1150 / 1700 ; AMD: AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm) 18.0 - 32.5

open all / close all

Heatsink specifications
Dimensions (L x W x H), (mm) -
Number of fins -
Fin material Aluminum
Base material Copper
Heatpipe number / Diameter (mm) 4 / 6
Fan specifications
Fan dimensions (mm) 2x 120 x 120 x 25
Speed @ 100% PWM (rpm) 700 - 1600 ± 10%
Bearing technology FDB
Rated voltage (V) 12
Connector 4 pin
Cable length (mm) -
Lifespan (h / 25°C) -
Accessories
Thermal grease included
Service
Warranty (Years) 2
Logistics data, RRP
Article number XC061
Range Performance A+
EAN code 4044953503122
Dimensions, package (L x W x H), (mm) -
Gross weight, package (kg) 0.9
Pieces per packaging unit -
Dimensions, shipping box (L x W x H), (mm) -
Gross weight, shipping box (kg) -
