XC232 | I350PWM

As a addition to the I250PWM model from Xilence, which has been tried and tested for years, comes the I350PWM for the LGA1700 socket for the 12th Intel generation.

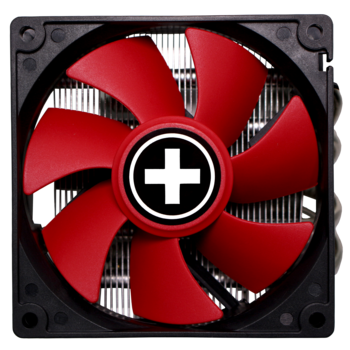

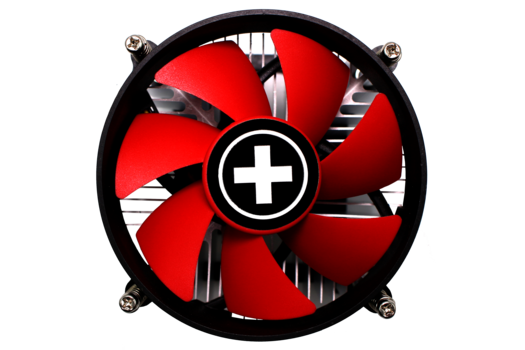

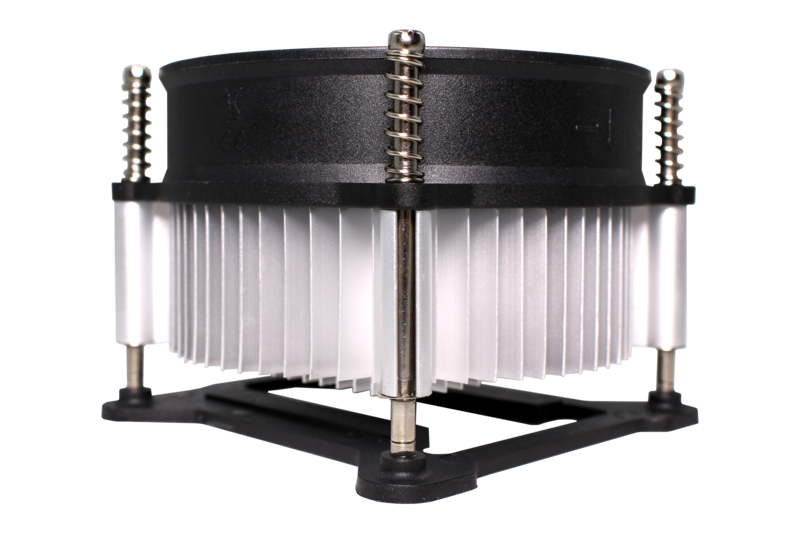

With a high air flow and an excellent price-performance ratio, the I350PWM ensures efficient cooling of the powerful 12th Intel generation. The red 92mm fan is extremely quiet due to hydro bearing and PWM control. It is also characterized by a secure and stable attachment using a backplate.
With its compact size and 110W TDP performance, it reliably cools up to 12600 non-K processors.

XC232

Article features

  • Silent hydro bearing 92mm PWM fan
  • Fine aluminum fins for high airflow and efficient cooling
  • Suitable for Intel sockets LGA 1700
  • Including thermal paste

Technical data

General data

Model Performance C | I350PWM
Overall dimensions without mounting material (L x W x H), (mm) 95 x 95 x 69.5
Total weight (kg) 0.40
TDP (W) 110
Socket compatibility 1700
Overall noise level (dB(A)) @ 50/75/100% (rpm) 17.6 - 26.4
Color Black

open all / close all

Heatsink specifications
Dimensions (L x W x H), (mm) -
Number of fins -
Fin material -
Base material Aluminum
Heatpipe number / Diameter (mm) -
Fan specifications
Fan dimensions (mm) 92 x 92 x 25
Speed @ 100% PWM (rpm) 800 - 2500 ± 10%
Bearing technology FDB
Rated voltage (V) 12
Connector 4 pin
Cable length (mm) 300 ± 10
Lifespan (h / 25°C) -
Accessories
Thermal grease pre-applied
Service
Warranty (Years) 2
Logistics data, RRP
Article number XC232
Range Performance C
EAN code 4044953503207
Dimensions, package (L x W x H), (mm) 85 x 100 x 100
Gross weight, package (kg) 0.37
Pieces per packaging unit 45
Dimensions, shipping box (L x W x H), (mm) 530 x 280 x 330
Gross weight, shipping box (kg) 17.1
