XC081 | M906

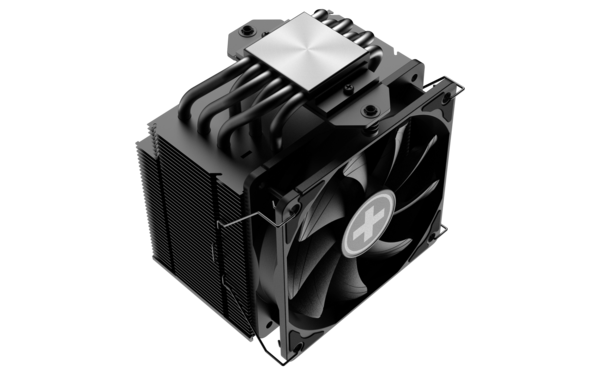

Our new flag ship in the field of air cooling from the performance X series - the M906

It has six extremely powerful black heat pipes, which dissipate 250W of waste heat to the countless cooling fins and thus predestine it for potent multi-core processors.

Due to the direct contact of the heat pipes, the heat transfer between CPU and cooler is extremely efficient and very even. The multi-socket means that the cooler can be used on all current Intel and AMD sockets.

In addition to the double heat sink and the PWM-controlled 120mm FDB Xilent fan, the scope of delivery includes a holding module for the LGA socket 1700/1851/2066/2011/1200/1151/1150/1155/1156 and AMD AM4/AM5, illustrated assembly instructions and a tube of thermal paste.

XC081

Article features

  • Elegant black design with top cover
  • One heat sink with lamellar design ensure efficient cooling of the CPU and all surrounding components
  • One black 120mm FDB/PWM Xilent fan, liquid-stored
  • six 6mm copper heat pipes for maximum heat dissipation
  • Hotspots are avoided by slightly protruding the fans on the top and bottom
  • Suitable for all common AMD & INTEL sockets

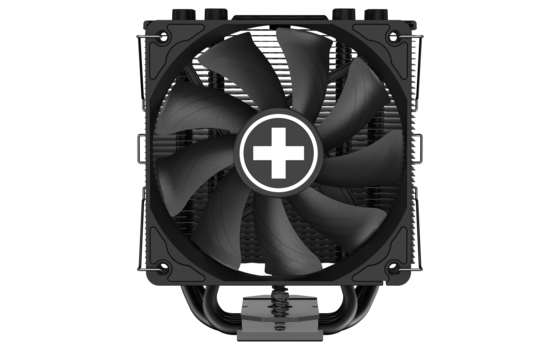

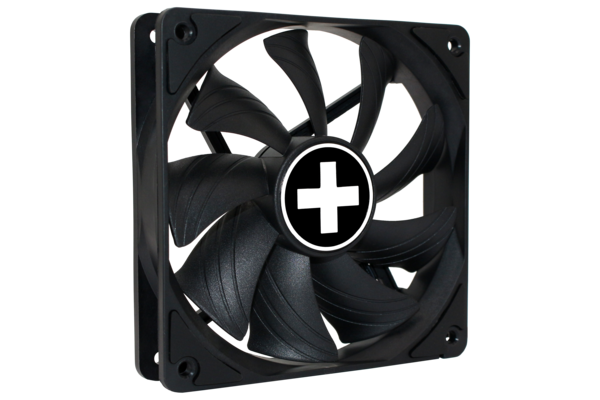

120mm FDB fan (embossed logo) | PWM | elegant black rotor blades in streamlined design

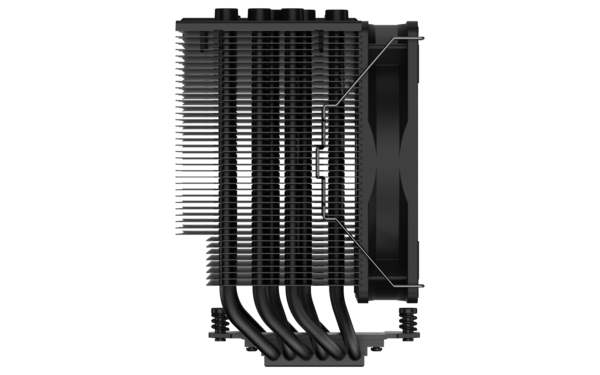

six 6mm copper heat pipes integradet into a big copper heat spreader

enormous heat sink for 250W TDP

Technical data

General data

Model Performance X | M906
Overall dimensions without mounting material (L x W x H), (mm) 129 x 106 x 154
Total weight (kg) 0.905
TDP (W) 250
Socket compatibility Intel: 1851 / 2066 / 2011 / 1200 / 1156 / 1155 / 1151 / 1150 / 1700 ; AMD: AM4 / AM5
Overall noise level (dB(A)) @ 50/75/100% (rpm) 18.0 - 30.8
Color Black

open all / close all

Heatsink specifications
Dimensions (L x W x H), (mm) 129 x 106 x 154
Number of fins 45
Fin material Aluminum
Base material Copper + Aluminum
Heatpipe number / Diameter (mm) 6 / 6
Fan specifications
Fan dimensions (mm) 120 x 120 x 25
Speed @ 100% PWM (rpm) 500 - 1500 ± 10%
Bearing technology FDB
Rated voltage (V) 12
Connector 4 pin
Cable length (mm) 440 ± 10mm
Lifespan (h / 25°C) -
Accessories
Thermal grease included
Service
Warranty (Years) 2
Logistics data, RRP
Article number XC081
Range Performance X
EAN code 4044953503252
Dimensions, package (L x W x H), (mm) -
Gross weight, package (kg) 0.9
Pieces per packaging unit -
Dimensions, shipping box (L x W x H), (mm) -
Gross weight, shipping box (kg) -
