XC025 | A402

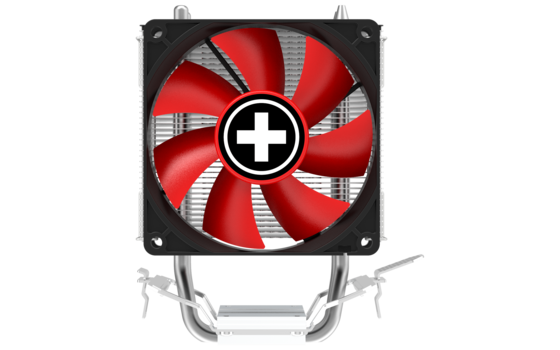

With the new A402 AMD cooler which is part of the Performance C Series, XILENCE presents a compact but very high-capacity cooler for powerful multi-core processors. The small cooler appears in classic tower design and convince with its extremely efficient heat pipes and the fin design arrangement. This design ensures that the air circulates more easily through the innumerable fins. Thus the fan speed of the 92mm PWM fan can be kept very low. Additionally, the heat transmission between CPU and cooler is very evenly and efficient due to the direct contact of heat pipes and CPU.


Article features

  • Silent hydro bearing 92mm fan
  • Two 6mm copper heat pipes for better heat flow
  • Fin Design for high airflow and efficient cooling of the CPU and surrounding components
  • Slight overhang of the fan avoids hotspots
  • Possible mounting of the fan on both sides of the heat sink
  • Suitable for all current AMD sockets

Technical data

General data

Model Performance C | A402
Overall dimensions without mounting material (L x W x H), (mm) 101 x 73 x 137
Total weight (kg) 0.4
TDP (W) 130
Socket compatibility AM4/ AM5
Overall noise level (dB(A)) @ 50/75/100% (rpm) 14.0 - 23.8
Color Black

open all / close all

Heatsink specifications
Dimensions (L x W x H), (mm) -
Number of fins 40
Fin material Aluminum
Base material Aluminum
Heatpipe number / Diameter (mm) 2 / 6
Fan specifications
Fan dimensions (mm) 92 x 92 x 25
Speed @ 100% PWM (rpm) 600 - 2200 ± 10%
Bearing technology FDB
Rated voltage (V) 12
Connector 4 pin
Cable length (mm) 360 ± 10
Lifespan (h / 25°C) -
Thermal grease 1
Warranty (Years) 2
Logistics data, RRP
Article number XC025
Range Performance C
EAN code 4044953500275
Dimensions, package (L x W x H), (mm) 95 x 125 x 150
Gross weight, package (kg) 0.48
Pieces per packaging unit 30
Dimensions, shipping box (L x W x H), (mm) 500 x 400 x 350
Gross weight, shipping box (kg) 15.4


Technical drawing
Technical drawing
