XC040 | A404T

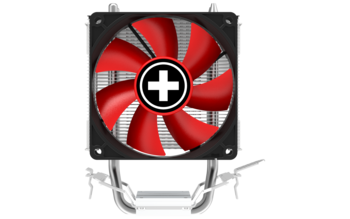

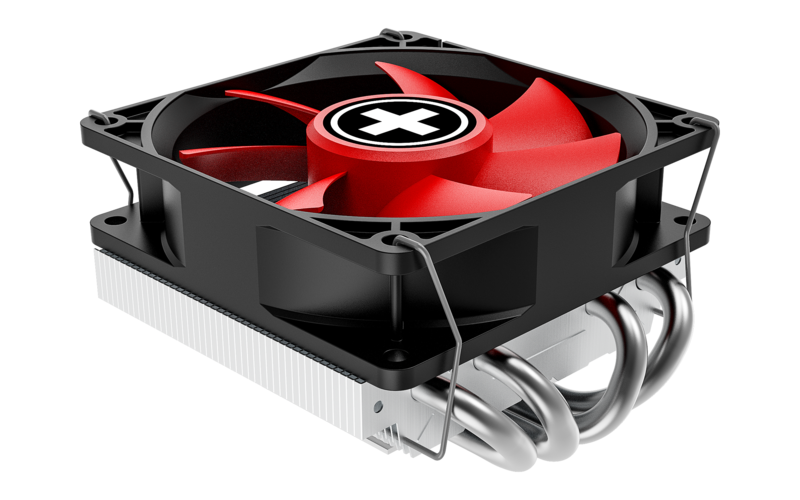

Widening the Performance C CPU cooler Series, Xilence now launches the A404T AMD – a compact but highperformance top-flow cooler for powerful multi-core processors. The cooler scores with a silent 92mm fan and an innovative fin design allowing an easier circulation of air through the reams of fins. Thus, the speed of the PWM-regulated 92mm fan can be kept at an especially low level. Thanks to the heat pipes being in direct contact to the CPU, the heat transition between CPU and cooler proves to be very smooth and efficient.
XC040

Other products of this series:
XC025|A402 XC033|A200 XC035|A250PWM


Product image 1 Product image 2

Contact

Article features


  • Silent hydro bearing 92 mm PWM fan
  • Four 6mm copper heat pipes for a maximum heat dissipation
  • Light aluminum heat sink
  • Suitable for AMD sockets AM4/AM3/AM3+/AM2/AM2+/FM2+/FM2/FM1
  • Thermal paste included


Technical data

General data

Model Performance C | A404T
Overall dimensions without mounting material (L x W x H), (mm) 105 x 100 x 55
Total weight (kg) 0.3
TDP (W) 125
Socket compatibility AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
Overall noise level (dB(A)) @ 50/75/100% (rpm) 14.0 - 21.8

open all / close all

Heatsink specifications
Dimensions (L x W x H), (mm) -
Number of fins 40
Fin material Aluminum
Base material Aluminum
Heatpipe number / Diameter (mm) 4 / 6
Fan specifications
Fan dimensions (mm) 92 x 92 x 25
Speed @ 100% PWM (rpm) 600 - 2200 ± 10%
Bearing technology FDB
Rated voltage (V) 12
Connector 4 pin
Cable length (mm) 360 ± 10
Lifespan (h / 25°C) -
Accessories
Thermal grease 1
Service
Warranty (Years) 2
Logistics data, RRP
Article number XC040
Range Performance C
EAN code 4044953501173
Dimensions, package (L x W x H), (mm) 80 x 128 x 128
Gross weight, package (kg) 0.36
Pieces per packaging unit 36
Dimensions, shipping box (L x W x H), (mm) 550 x 408 x 285
Gross weight, shipping box (kg) 14.6


Downloads


Documents

Datasheet

Installation guide
Installation guide
Preview   Download

Technical drawing
Technical drawing
Preview   Download
