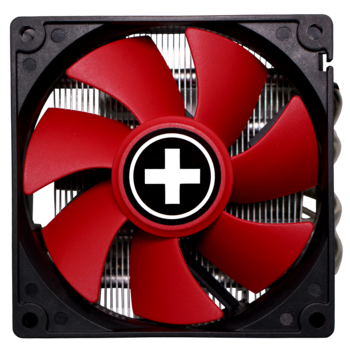

XC041 | I404T

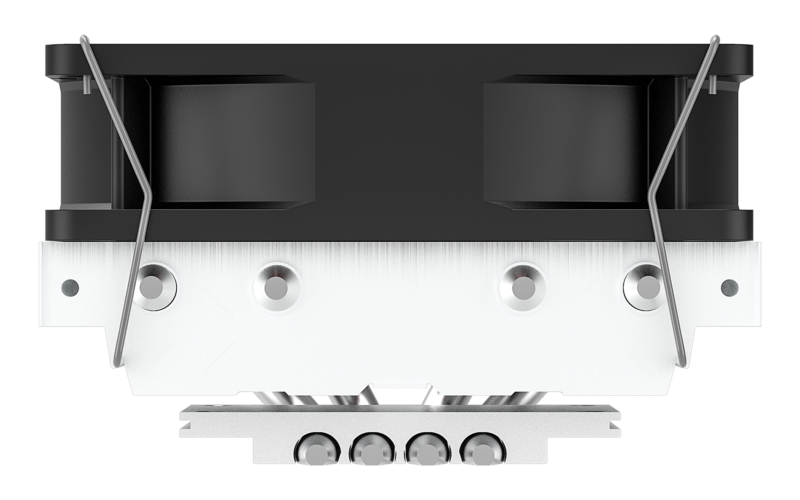

Widening the Performance C CPU cooler Series, Xilence now launches the I404T Intel – a compact but highperformance top-flow cooler for powerful multi-core processors. The cooler scores with a silent 92mm fan and an innovative fin design allowing an easier circulation of air through the reams of fins. Thus, the speed of the PWM-regulated 92mm fan can be kept at an especially low level. Thanks to the heat pipes being in direct contact to the CPU, the heat transition between CPU and cooler proves to be very smooth and efficient.
XC041


Other products of this series:

XC026|I402 XC030|I200 XC032|I250PWM XC232|I350PWM

Article features

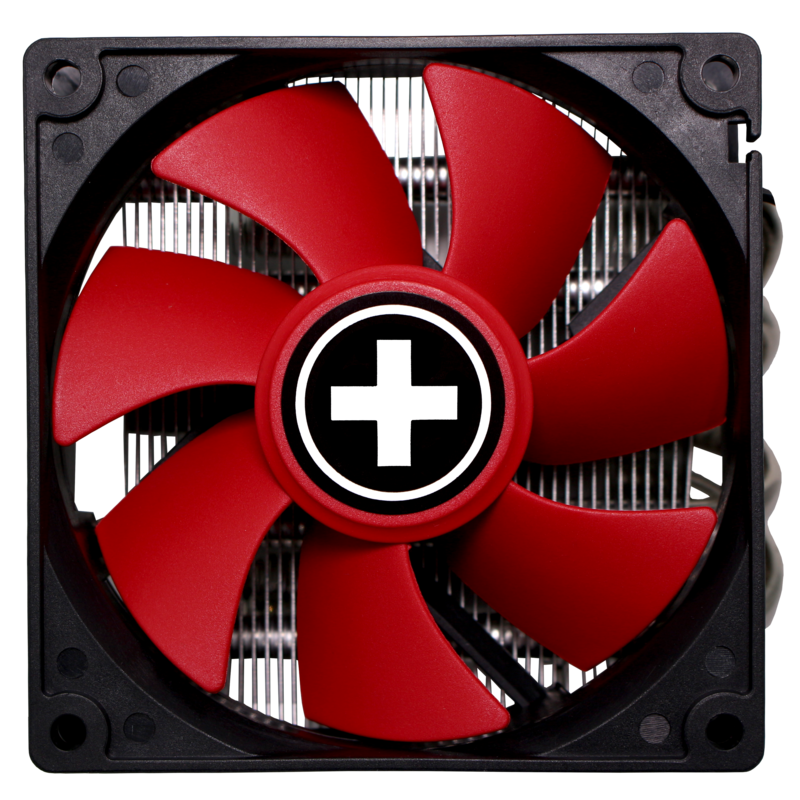

  • Silent hydro bearing 92 mm PWM fan

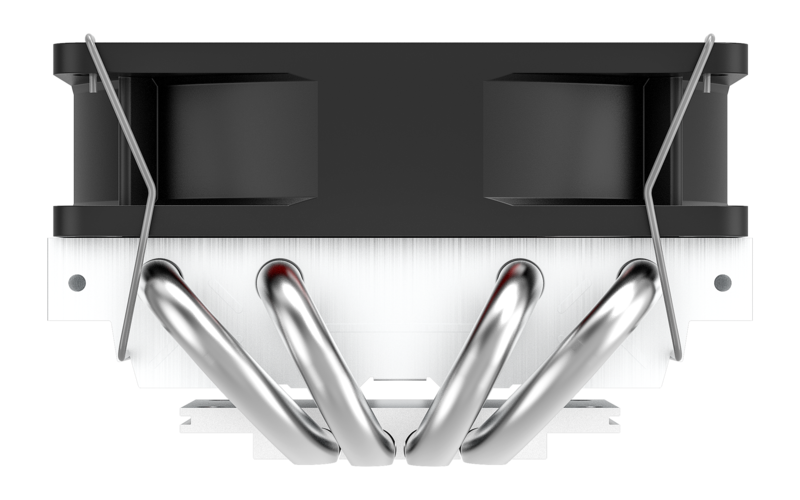

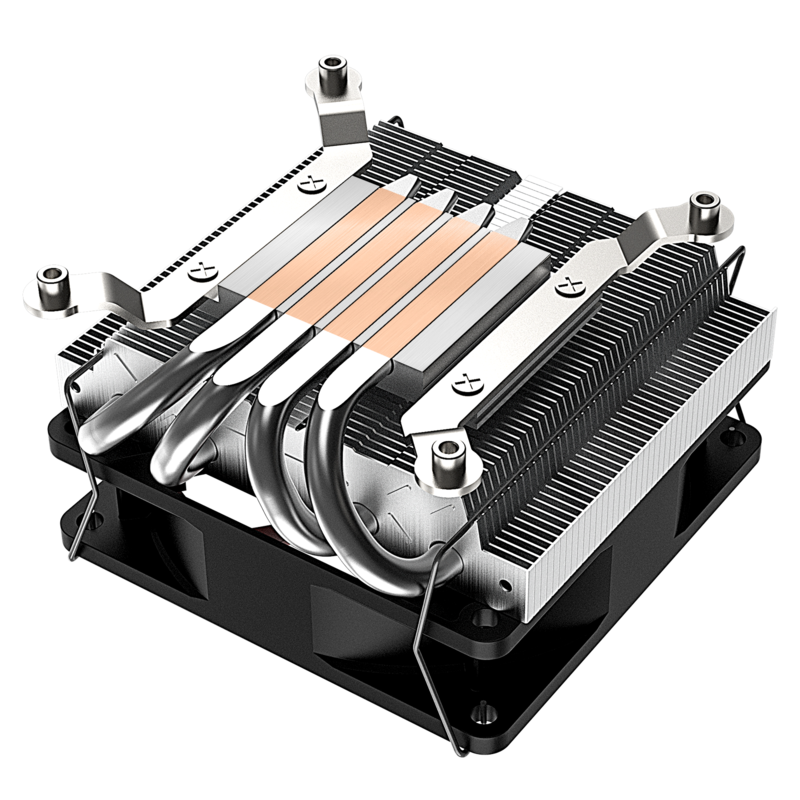

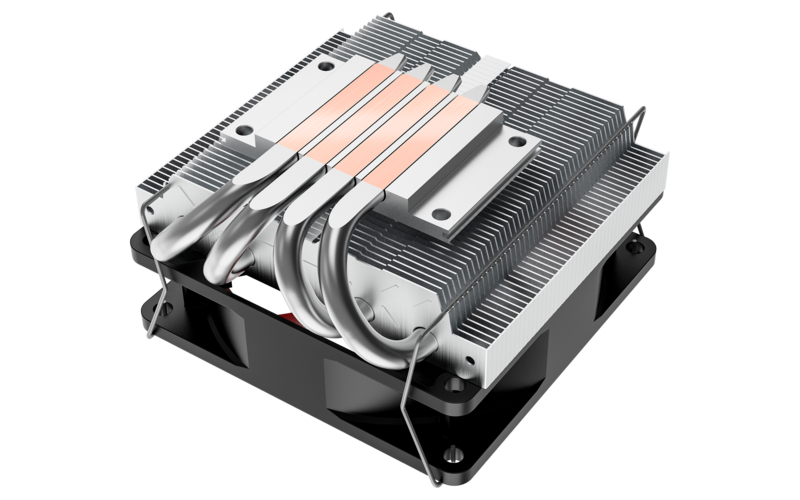

  • Four 6mm copper heat pipes for a maximum heat dissipation
  • Light aluminum heat sink
  • Suitable for LGA 1150/1151/1155/1156/1200/1700
  • Thermal paste included

Technical data

General data

Model Performance C | I404T
Overall dimensions without mounting material (L x W x H), (mm) 105 x 100 x 55
Total weight (kg) 0.28
TDP (W) 125
Socket compatibility 1700/ 1200 / 1156 / 1155 / 1151 / 1150
Overall noise level (dB(A)) @ 50/75/100% (rpm) 14.0 - 21.8
Color Black

open all / close all

Heatsink specifications
Dimensions (L x W x H), (mm) -
Number of fins 40
Fin material Aluminum
Base material Aluminum
Heatpipe number / Diameter (mm) 4 / 6
Fan specifications
Fan dimensions (mm) 92 x 92 x 25
Speed @ 100% PWM (rpm) 600 - 2200 ± 10%
Bearing technology FDB
Rated voltage (V) 12
Connector 4 pin
Cable length (mm) 360 ± 10
Lifespan (h / 25°C) -

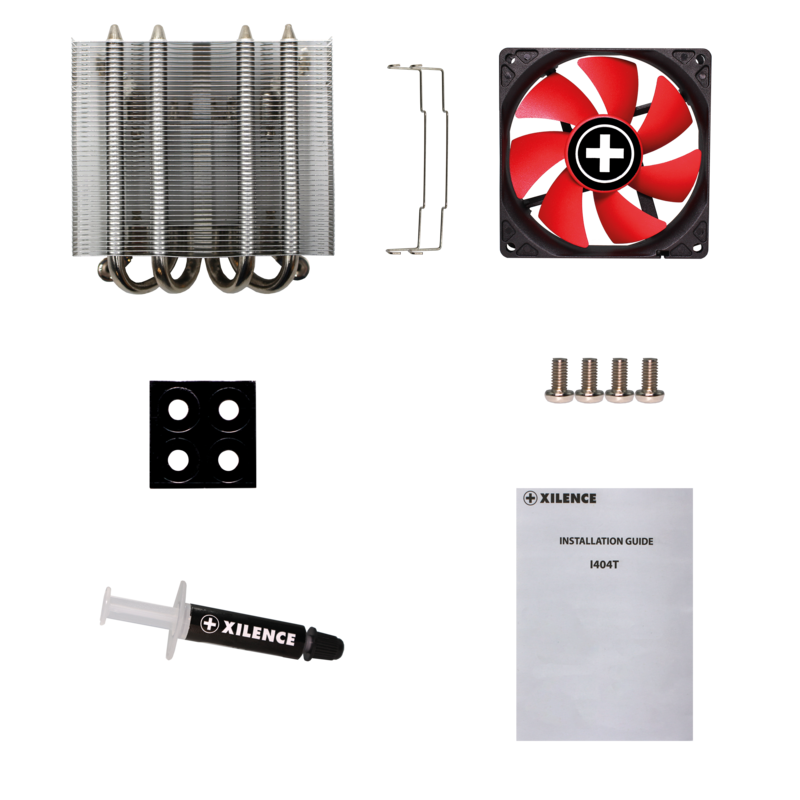

Accessories
Thermal grease 1
Service
Warranty (Years) 2
Logistics data, RRP
Article number XC041
Range Performance C
EAN code 4044953501180
Dimensions, package (L x W x H), (mm) 80 x 128 x 128
Gross weight, package (kg) 0.34
Pieces per packaging unit 36
Dimensions, shipping box (L x W x H), (mm) 550 x 408 x 285
Gross weight, shipping box (kg) 13.7
