XN213 | XP450R10

The new successful Gaming series combines high performance with a low noise level and high effciency. The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming. Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past. Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case.

XN213

Article features

  • Extremely silent cooling: large 120mm fan

  • Excellent air flow design for a better heat dissipation

  • Full safety design

    • OVP (Over Voltage Protection)

    • UVP (Under Voltage Protection)

    • SCP ( Short Circuit Protection)

    • OPP (Over Power Protection)

  • Low stand-by consumption

  • High energy efficiency: 80+ BRONZE® certified (complies with ErP2014 norm)

  • Active-PFC

Technical data

General data

Peak Power (W) 450
Form factor ATX 12V Version 2.4
Voltage (Vac) 200 - 240
Model Gaming | XP450R10
Frequency (Hz) 50
Input current (A) 8
PFC active

open all / close all

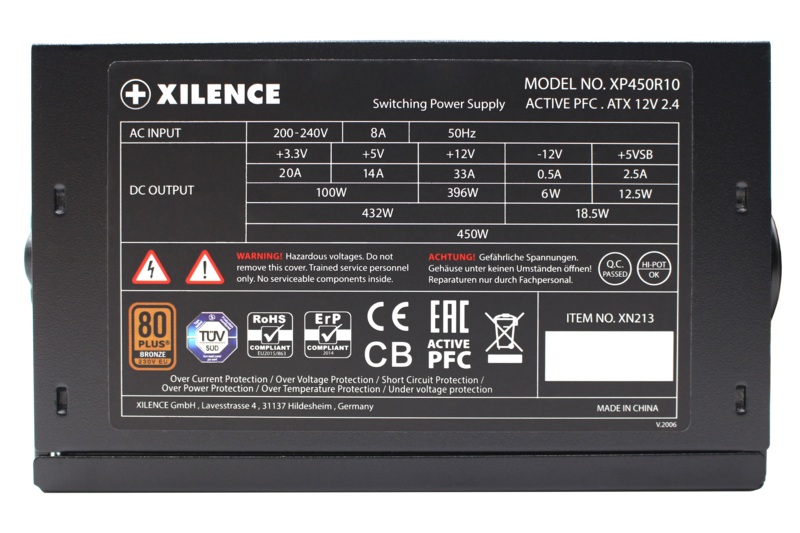

Output
+3.3V (A) 20
+5V (A) 14
+12V1 (A) 33
-12V (A) 0.5
+5Vsb (A) 2
Max. combined power 12V (W) 396
Max. combined power 3.3V + 5V (W) 100
+12V2 (A) -

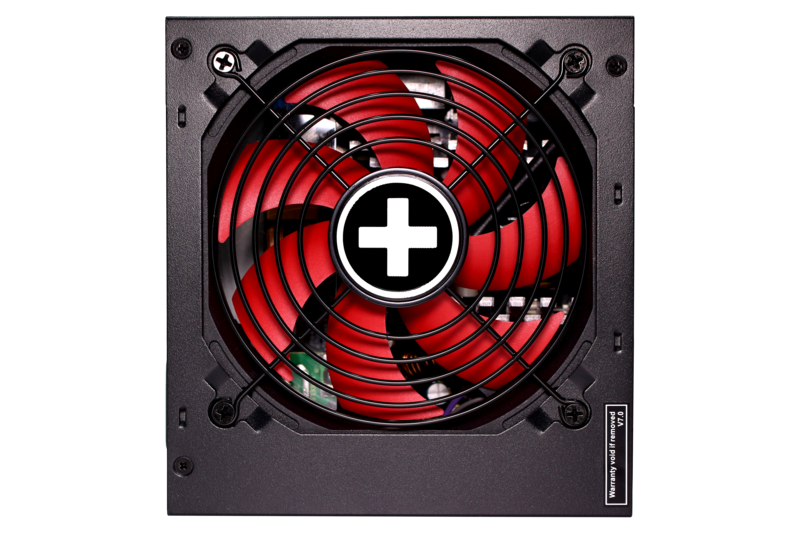

Fan / Cooling technology
Bearing technology Hydro Bearing
Fan size (mm) 120
Protection
OCP (over current protection) -
OVP (over voltage protection)
UVP (under voltage protection) -
SCP (short circuit protection)
OTP (over temperature protection) -
OPP (over power protection)
Eco / Efficiency

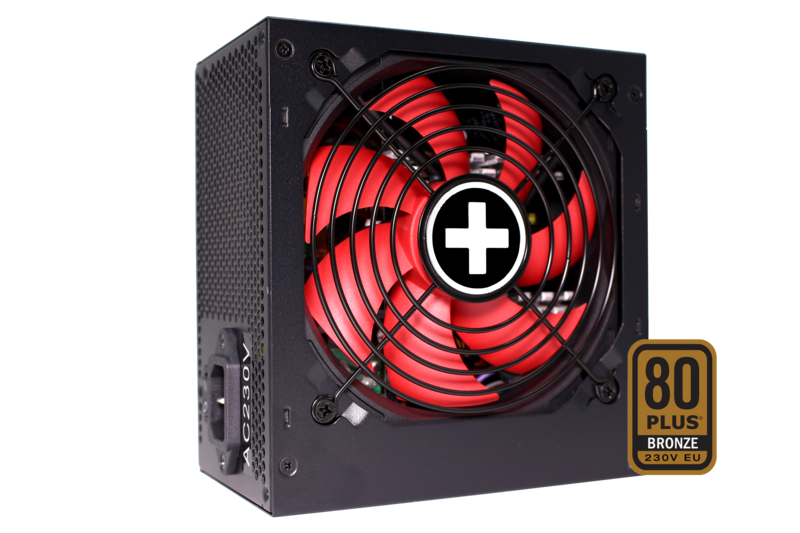

80PLUS certification 80+ Bronze
Efficiency (%) at 230V, 20% load >85%
Efficiency (%) at 230V, 50% load >88%
Efficiency (%) at 230V, 100% load >85%
Environmental directives
ErP
WEEE
RoHS

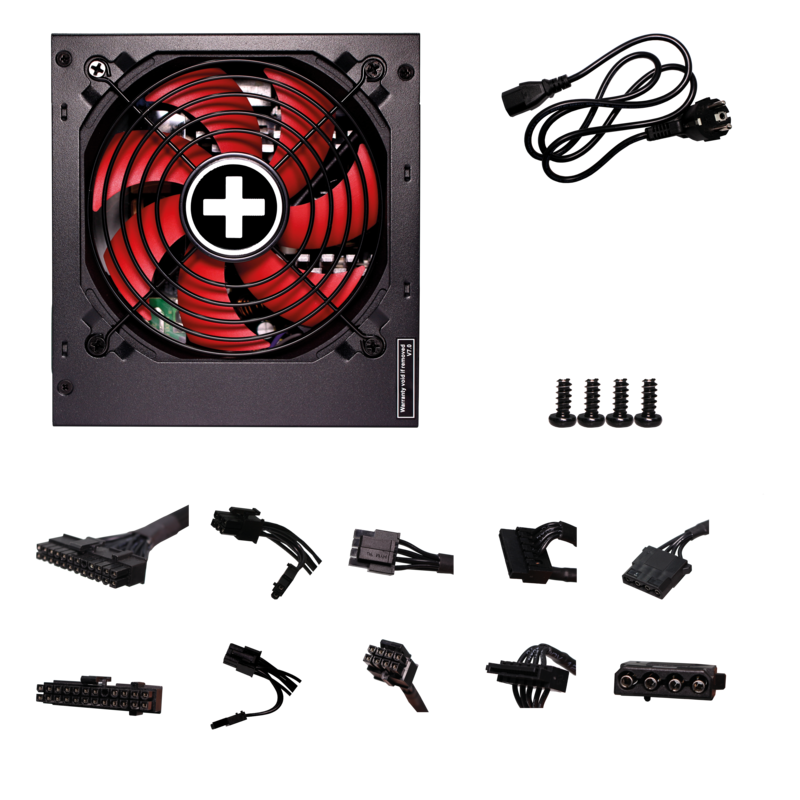

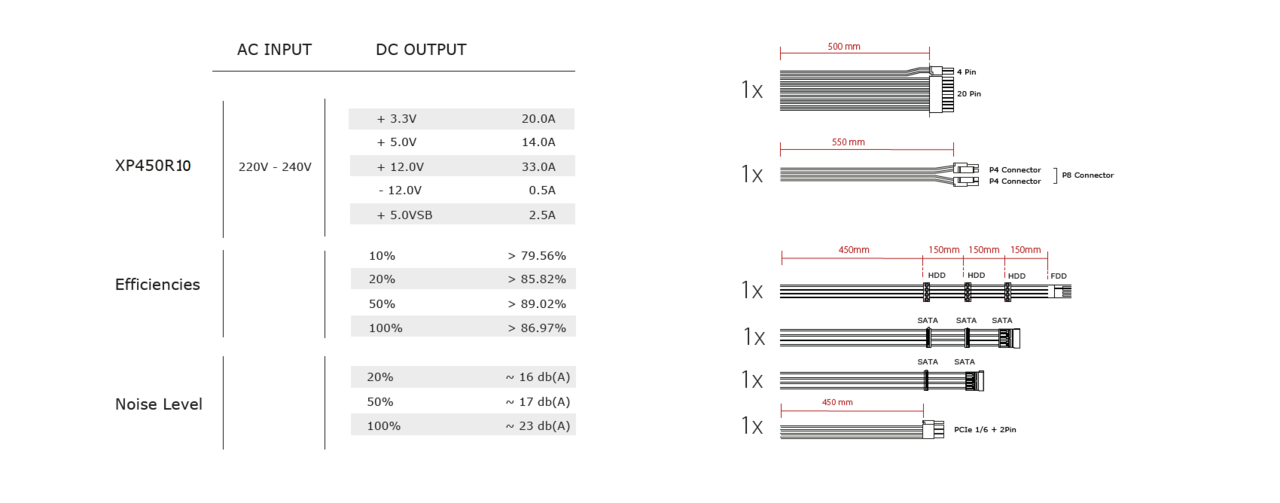

Cable management / Connectors
Modular cable management -
Cable length to mainboard (mm) 500
Cable length to first connector (mm) 450
Maximum cable length (mm) 900
Sleeved cables -
No. of cables 6
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) -
P8 (CPU) 1
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 1
PATA 4-pin 3
SATA 15-pin (HDD, Drives) 5
FDD (Floppy) 1
Logistics data, RRP
Range Gaming
Article number XN213
EAN code 4044953501661
Dimensions, package (L x W x H), (mm) 140 x 150 x 86mm
Gross weight, package (kg) -
Pieces per packaging unit 8
Dimensions, shipping box (L x W x H), (mm) 515 x 345 x 215
Gross weight, shipping box (kg) 14.54
