XN235 | XP750R10

The new successful Gaming Bronze series combines high performance with a low noise level and high effciency. The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming. Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past. Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case.

XN235

Article features

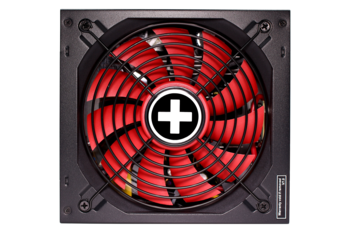

  • Extremely silent cooling: large 120mm fan
  • Excellent air flow design for a better heat dissipation
  • Full safety design:
    • OVP (Over Voltage Protection)
    • UVP (Under Voltage Protection)
    • SCP (Short Circuit Protection)
    • OPP (Over Power Protection)
  • Low stand-by consumption
  • High energy efficiency: 80+ BRONZE® certified (complies with ErP2014 norm)
  • Active-PFC


Technical data

General data

Peak Power (W) 750
Form factor ATX 12V Version 2.4
Voltage (Vac) 200 - 240
Model Gaming | XP750R10
Frequency (Hz) 50
Input current (A) 10
PFC active

open all / close all

Output
+3.3V (A) 20
+5V (A) 20
+12V1 (A) 62.5
-12V (A) 0.3
+5Vsb (A) 3.0
Max. combined power 12V (W) 750
Max. combined power 3.3V + 5V (W) 100
+12V2 (A) -
Fan / Cooling technology
Bearing technology Hydro Bearing
Fan size (mm) 120
Protection
OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection) -
SCP (short circuit protection)
OTP (over temperature protection) -
OPP (over power protection)
Eco / Efficiency
80PLUS certification 80+ Bronze
Efficiency (%) at 230V, 20% load >85%
Efficiency (%) at 230V, 50% load >88%
Efficiency (%) at 230V, 100% load >85%
Environmental directives
ErP
WEEE
RoHS
Cable management / Connectors
Modular cable management -
Cable length to mainboard (mm) 500
Cable length to first connector (mm) 450
Maximum cable length (mm) 750
Sleeved cables -
No. of cables 7
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 2
P8 (CPU) -
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 3
PATA 4-pin 3
SATA 15-pin (HDD, Drives) 8
FDD (Floppy) -
Logistics data, RRP
Range Gaming
Article number XN235
EAN code 4044953502361
Dimensions, package (L x W x H), (mm) 140 x 150 x 86mm
Gross weight, package (kg) 1.98
Pieces per packaging unit 8
Dimensions, shipping box (L x W x H), (mm) 580 x 440 x 265
Gross weight, shipping box (kg) 16.50
