XN050 | XP350R7


The latest generation of Redwing power supplies combines an exciting design with modern technology and top quality. In the current revision, the power supply series has been completely revised and adapted to the demands of today's computer systems. The result not only convinces through its efficient technic, but with its modern design and high stability. The connections have been coordinated to current systems and four integrated safety circuits always ensure safe operation.

XN050

Other products of this series:
XN051|XP400R7 XN052|XP500R7 XN053|XP600R7 XN054|XP700R7

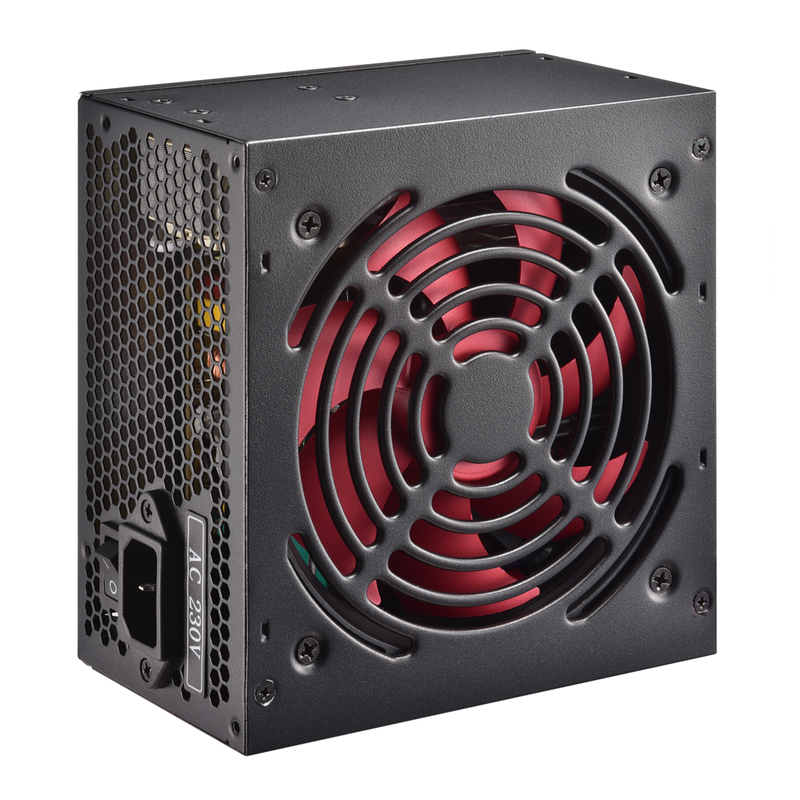

Product image 1


Article features


  • Powerful: Optimal performance in every situation
  • Whisper-Silent Cooling: 1x 120mm fan
  • Reliable: Maximum stability at all time
  • The following safety features:
    • OVP (Over Voltage Protection)
    • UVP (Under Voltage Protection)
    • SCP ( Short Circuit Protection)
    • OLP (Over Load Protection)


Technical data

General data

Continuous power (W) 350
Form factor ATX 12V Version 2.31
Voltage (Vac) 200 - 240
Model Redwing | XP350R7
Frequency (Hz) 50
Input current (A) 8
PFC passive

open all / close all

Output
+3.3V (A) 14
+5V (A) 15
+12V1 (A) 20
-12V (A) 0.5
+5Vsb (A) 2
Max. combined power 12V (W) 240
Max. combined power 3.3V + 5V (W) 100
+12V2 (A) -
Fan / Cooling technology
Bearing technology Hydro Bearing
Fan size (mm) 120
Protection
OCP (over current protection) -
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection) -
OPP (over power protection)
Eco / Efficiency
80PLUS certification -
Efficiency (%) at 230V, 20% load -
Efficiency (%) at 230V, 50% load -
Efficiency (%) at 230V, 100% load -
Environmental directives
ErP -
WEEE
RoHS
Cable management / Connectors
Modular cable management -
Cable length to mainboard (cm) 450
Cable length to first connector (cm) 400
Maximum cable length (cm) 550
Sleeved cables -
No. of cables 4
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) -
P4 (CPU) 1
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) -
PATA 4-pin 1
SATA 15-pin (HDD, Drives) 3
FDD (Floppy) -
Logistics data, RRP
Range Redwing
Article number XN050
EAN code 4044953501111
Dimensions, package (L x W x H), (mm) 225 x 165 x 100
Gross weight, package (kg) 1.47
Pieces per packaging unit 10
Dimensions, shipping box (L x W x H), (mm) 15.38
Gross weight, shipping box (kg) 520 x 480 x 200
