XN320 | XP650R12

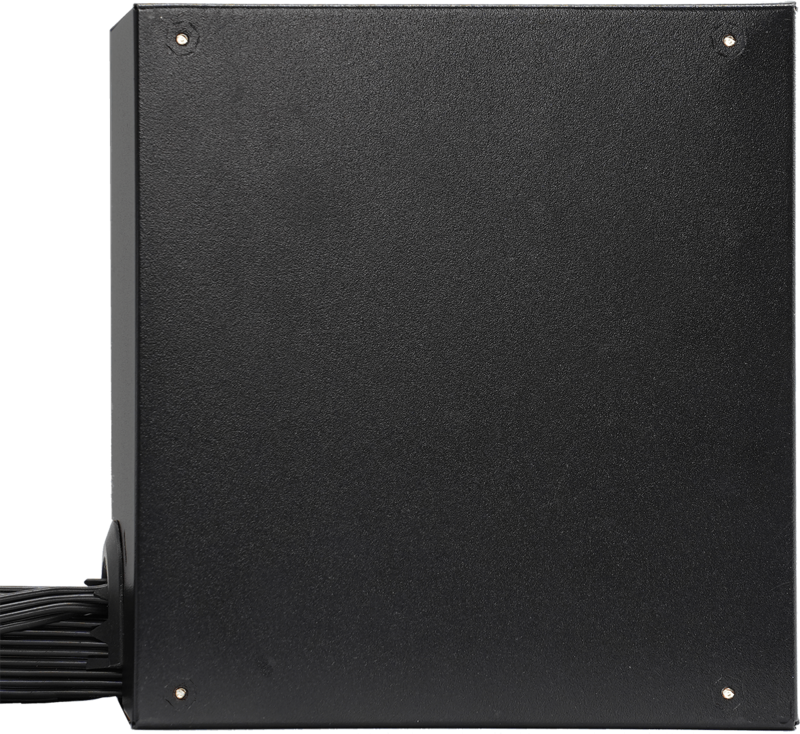

The Gaming GOLD Series is a PC power supply series with a fixed cable harness, as well as a 750W ARGB variant. The noble design with its black powder coating, the 120mm silent, black or transparent fan and the fan grille emphasizes the valuable   character of this series.
The maximum voltage stability and the six integrated safety circuits ensure safe operation even in heated workflows or gaming sessions. The power supplies are suitable for the highest demands in gaming, multi-media application and streaming areas  and have low power consumption during these intensive phases. The power supplies achieve the 80+ GOLD requirements.

XN320

Article features

  • Whisper-quiet cooling: Large 120mm fan*
  • Excellent airflow design for improved heat dissipation
  • With the following safety equipment:
  • OVP (overvoltage protection)
  • UVP (Undervoltage Protection)
  • SCP (short circuit protection)
  • OLP (overload protection)
  • OTP (over temperature protection)
  • OCP (overcurrent protection)
  • Low standby power consumption
  • High energy

Video doesn't available

Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them.
More information

Technical data

General data

Peak Power (W) 650
Form factor ATX 12V Version 2.52v
Voltage (Vac) 200-240V
Model Gaming | XP650R12
Frequency (Hz) 50Hz-60Hz
Input current (A) 6.3
PFC active

open all / close all

Output
+3.3V (A) 20
+5V (A) 20
+12V1 (A) 54.1
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 650
Max. combined power 3.3V + 5V (W) 100
+12V2 (A) -
Fan / Cooling technology
Bearing technology Hydro Bearing
Fan size (mm) 120
Protection
OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
Eco / Efficiency
80PLUS certification 80+ Gold
Efficiency (%) at 230V, 20% load 90
Efficiency (%) at 230V, 50% load 93
Efficiency (%) at 230V, 100% load 92
Environmental directives
ErP
WEEE
RoHS
Cable management / Connectors
Modular cable management -
Cable length to mainboard (mm) 550
Cable length to first connector (mm) 550
Maximum cable length (mm) 600
Sleeved cables
No. of cables -
ATX-Motherboard (20+4-pin) -
P4+4 (CPU) 2
P8 (CPU) 1
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 3
PATA 4-pin -
SATA 15-pin (HDD, Drives) 6
FDD (Floppy) -
Logistics data, RRP
Range GAMING Serie
Article number XN320
EAN code 4044953503306
Dimensions, package (L x W x H), (mm) 140 x 150 x 86mm
Gross weight, package (kg) 2.3
Pieces per packaging unit -
Dimensions, shipping box (L x W x H), (mm) -
Gross weight, shipping box (kg) -
