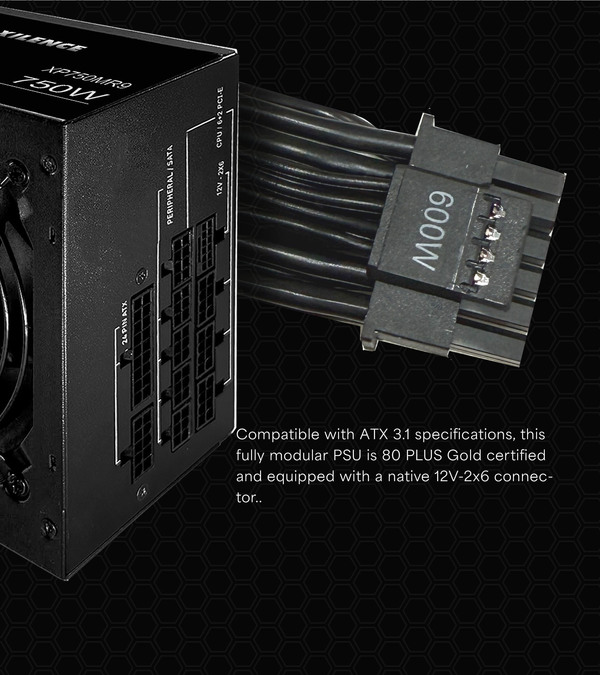

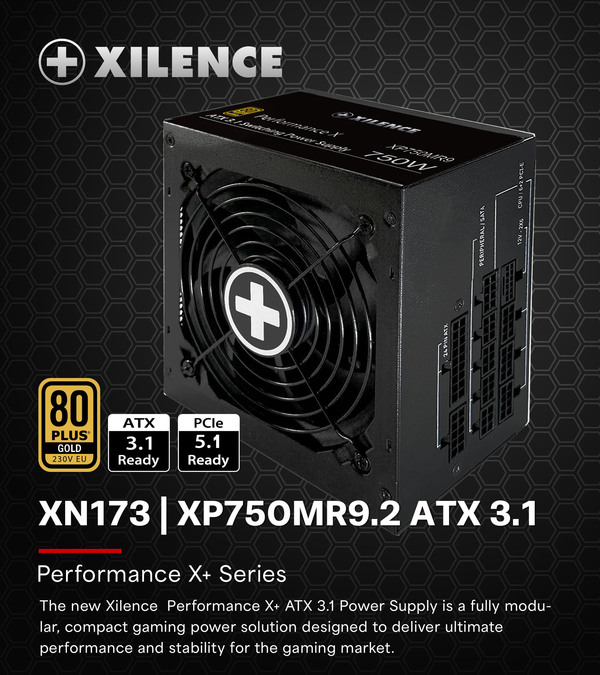

The new Xilence Performance X+ ATX 3.1 Power Supply is a fully modular, compact gaming power solution designed to deliver ultimate performance and stability for the gaming market.

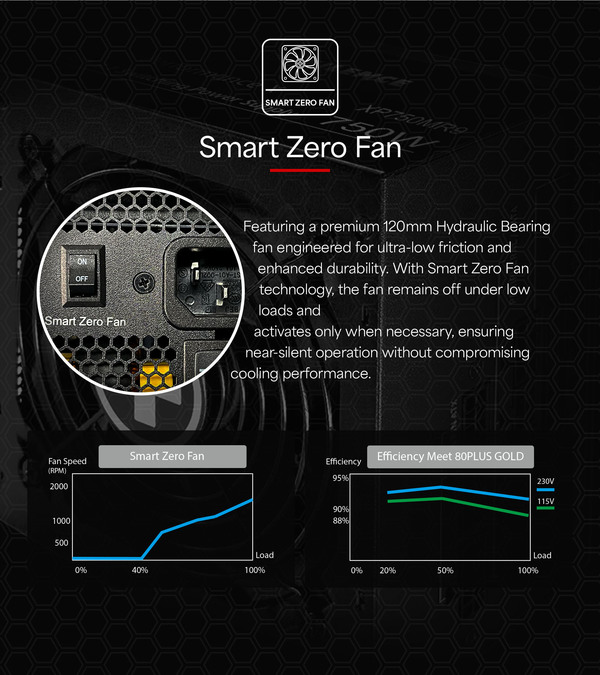

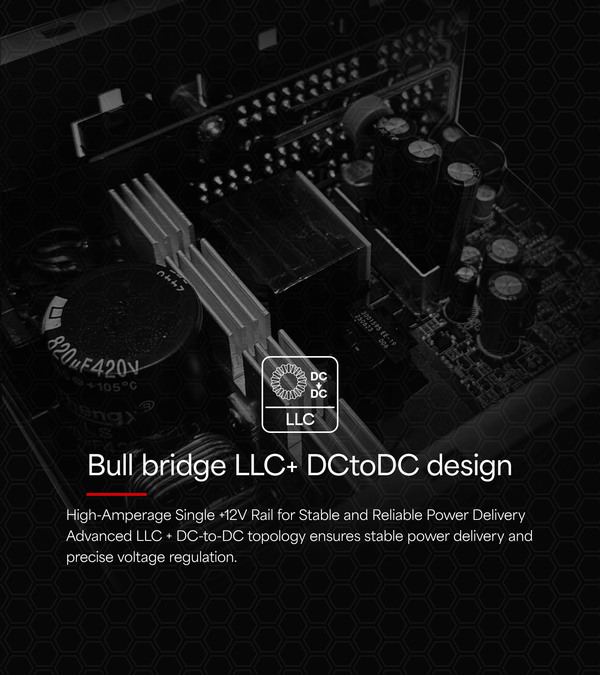

Featuring advanced ATX 3.1 compliance, high-quality capacitors, and exceptional electrical stability, it is 80 PLUS® Gold certified, PCIe 5.1 ready, and built with an LLC + DC-to-DC design to ensure consistent and reliable power output. A 120 mm silent fan provides efficient, low-noise cooling. The fan's Zero-Fan mode allows it to remain off when the load is below 40%, providing a quiet operating
environment. To activate Zero-Fan mode, simply flip the switch.
The CircuitShield™ suite of industrial-grade protection mechanisms guarantees safe and dependable power delivery in any environment.
The Performance X+ Power Supply Series is the perfect choice for gamers and professionals seeking a reliable, efficient, and highperformance PC build.

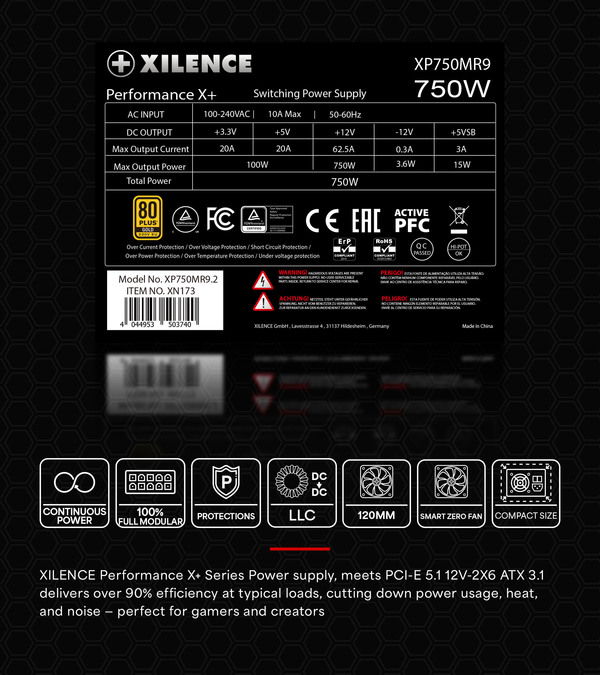

| Peak Power (W) | 750 |
| Form factor ATX 12V | Version 3.1 |
| Voltage (Vac) | 100-240 |
| Model | Performance X+ | XP750MR9.2 |
| Frequency (Hz) | 50-60 |
| Input current (A) | 10 |
| PFC | active |
| +3.3V (A) | 20.0A |
| +5V (A) | 20.0A |
| +12V1 (A) | 62.5A |
| -12V (A) | 0.3A |
| +5Vsb (A) | 3.0A |
| Max. combined power 12V (W) | 750 |
| Max. combined power 3.3V + 5V (W) | 100 |
| +12V2 (A) | - |
| Bearing technology | - |
| Fan size (mm) | 120 |
| OCP (over current protection) | ✓ |
| OVP (over voltage protection) | ✓ |
| UVP (under voltage protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OTP (over temperature protection) | ✓ |
| OPP (over power protection) | ✓ |
| 80PLUS certification | GOLD |
| Efficiency (%) at 230V, 20% load | 91% |
| Efficiency (%) at 230V, 50% load | 93% |
| Efficiency (%) at 230V, 100% load | 92% |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |

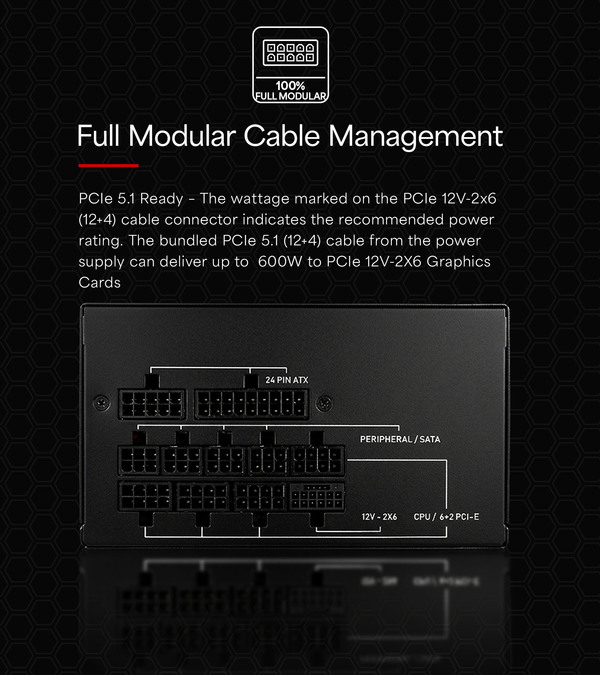

| Modular cable management | ✓ |
| Cable length to mainboard (mm) | 550 |
| Cable length to first connector (mm) | - |
| Maximum cable length (mm) | 900 |
| Sleeved cables | ✓ |
| No. of cables | 9 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 2 |
| P8 (CPU) | 0 |
| PCI-E 6-pin (GPU) | 0 |
| PCI-E 6+2-pin (GPU) | 4 |
| PATA 4-pin | 4 |
| SATA 15-pin (HDD, Drives) | 6 |
| FDD (Floppy) | - |
| Range | Performance X+ |
| Article number | XN173 |
| EAN code | 4044953503740 |
| Dimensions, package (L x W x H), (mm) | 278 x 213 x 122 |
| Gross weight, package (kg) | 2.46 |
| Pieces per packaging unit | 4 |
| Dimensions, shipping box (L x W x H), (mm) | 460 x 305 x 275 |
| Gross weight, shipping box (kg) | 10.78 |
