LiQuRizer Redwing  |  LiQuRizer RGB

XC974 | LQ240 White ARGB


The new maintenance-free all-in-one liquid cooling system from Xilence can convince with an outstanding priceperformance
ratio and easy handling.
The installation with the quick-mount-system really easy and safe and due to the included multisocket-mountings
it can be applied on every socket from AMD or INTEL.
The elegant sleeved and soft tubes follow easily the planned way of mounting, no matter if the radiator is placed in
the back, top, front or bottom of the case.

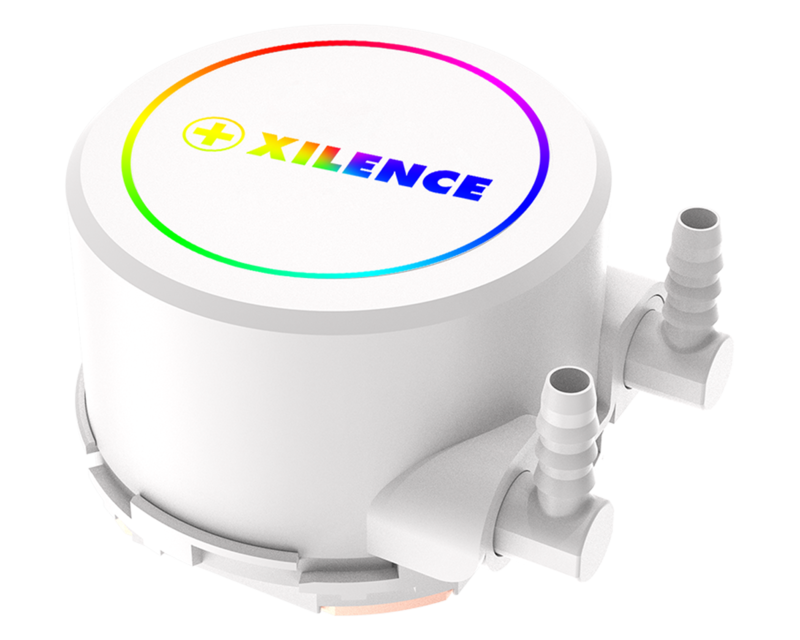

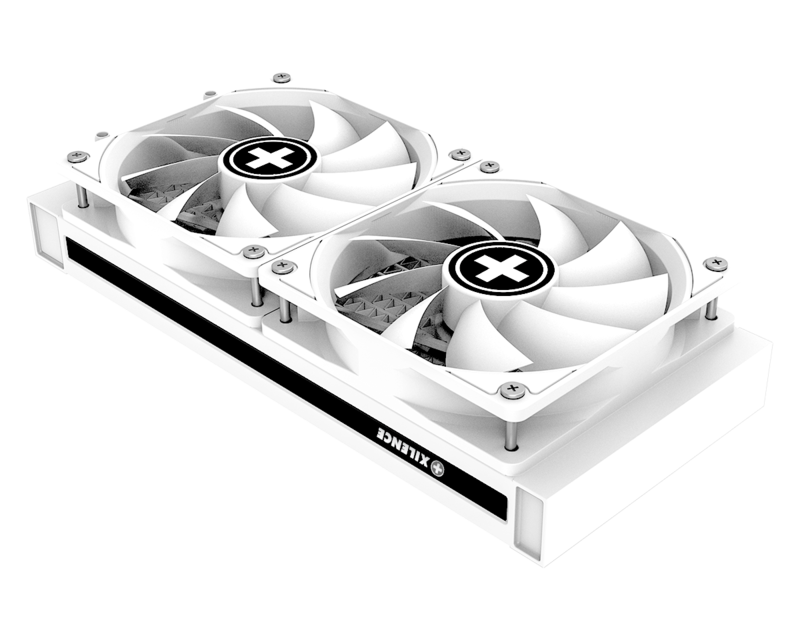

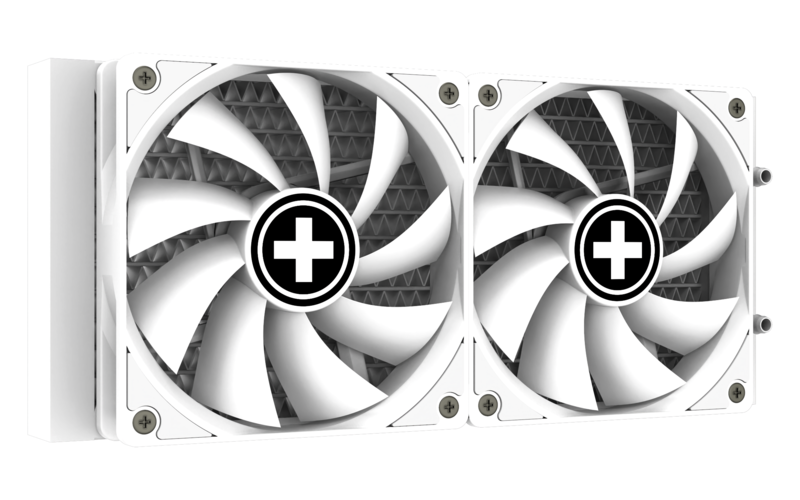

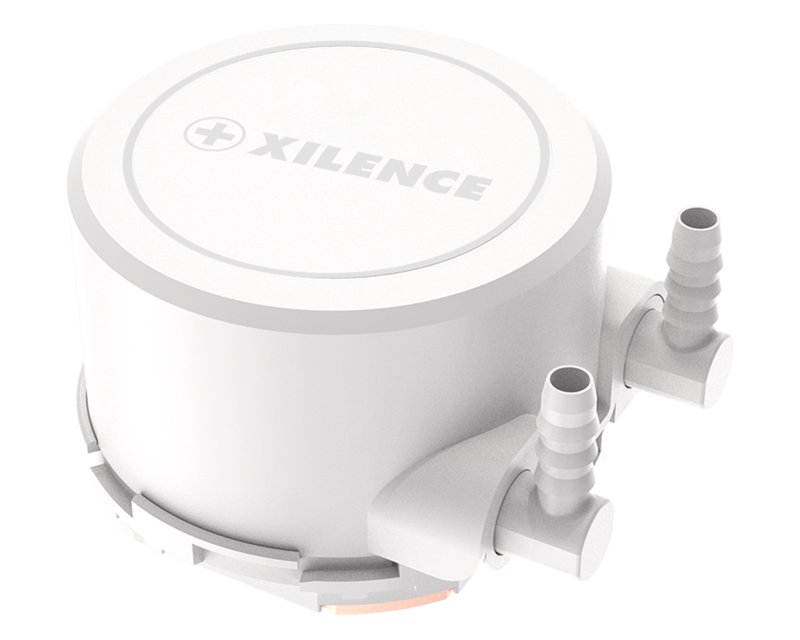

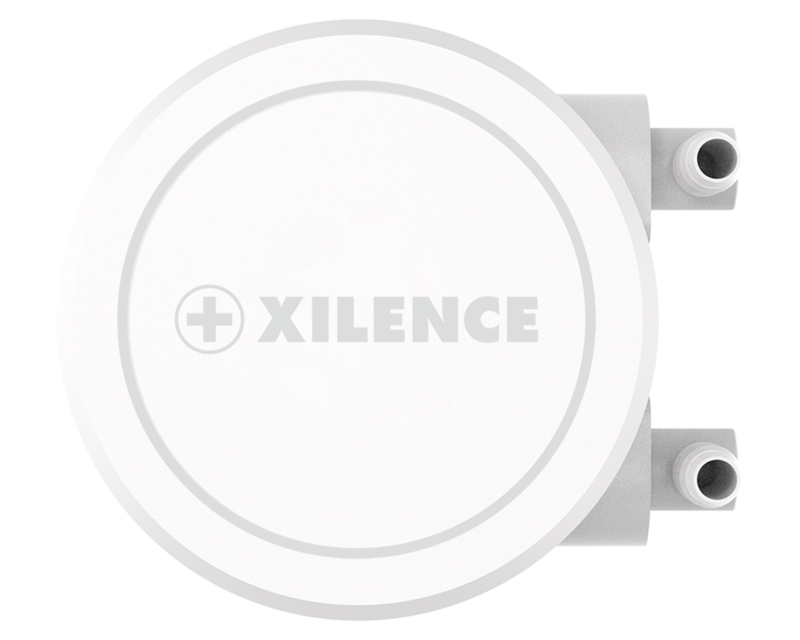

The huge full-copper heat-spreader below the LED lit pump head and the powerful radiators, together with the
hydrobearing PWM fans guarantee a silent running and a high performance.

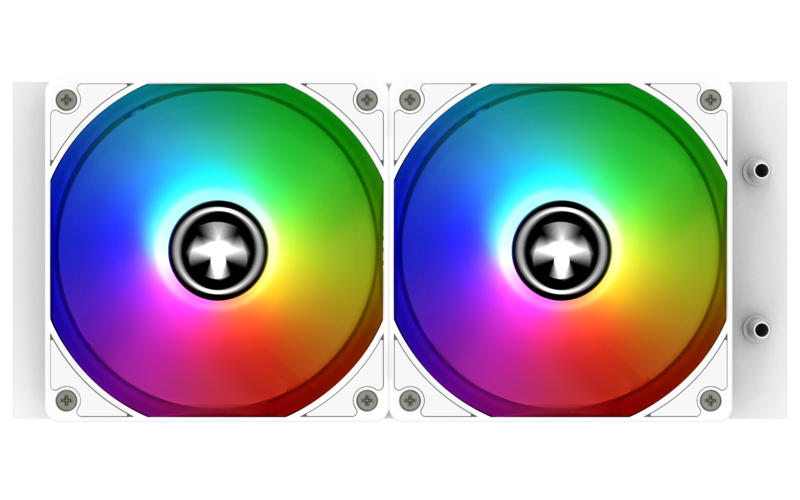

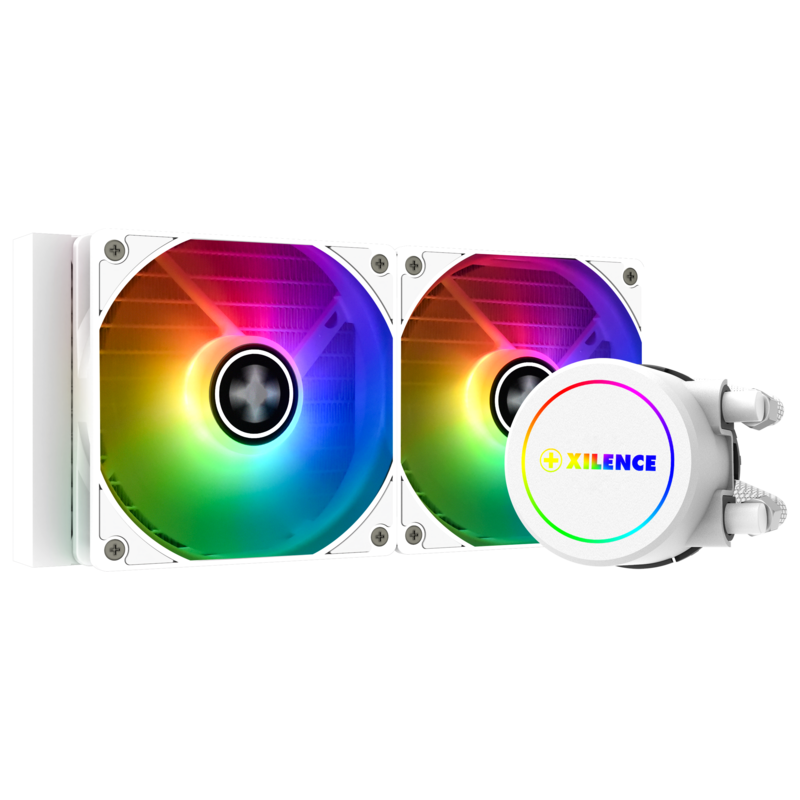

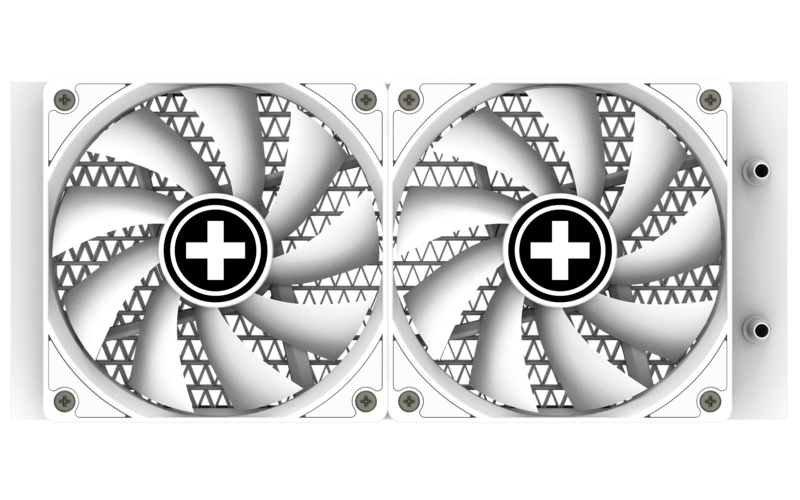

Available as a white 240mm ARGB LED version with ARGB LEDs on the pump head and 2 transparent ARGB LED
PWM Fans.

XC974


Product image 1

Contact

Article features


- Classy white design
- Multi Socket Mountings for AMD and INTEL
- Quick Mount System
- Flexible tubes for versatile mounting
- Big full copper Heat Spreader and High Performance Radiator

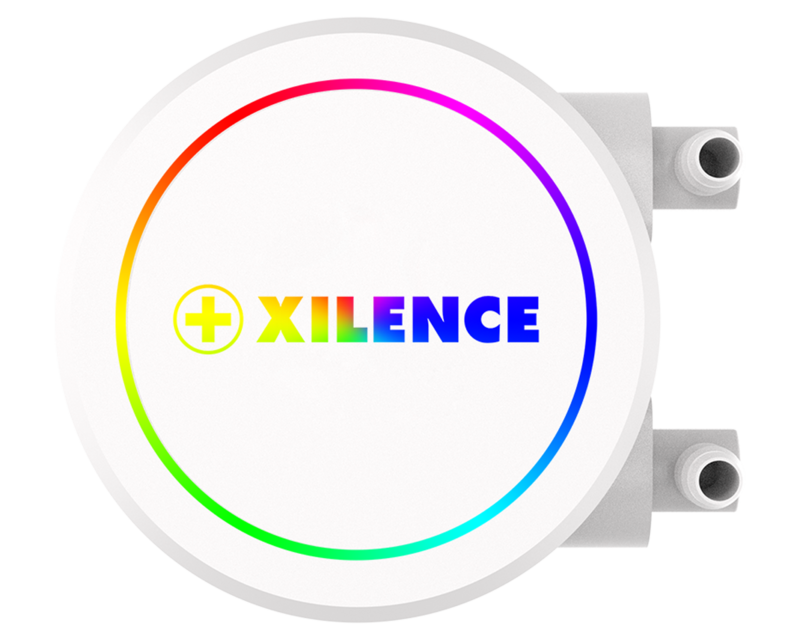

- LED lit Pump Head with RGB LED (AURA etc. compatible 3PIN)
- XILENCE PWM Fans transparent ARGB LED Fans (AURA etc. compatible 3PIN)

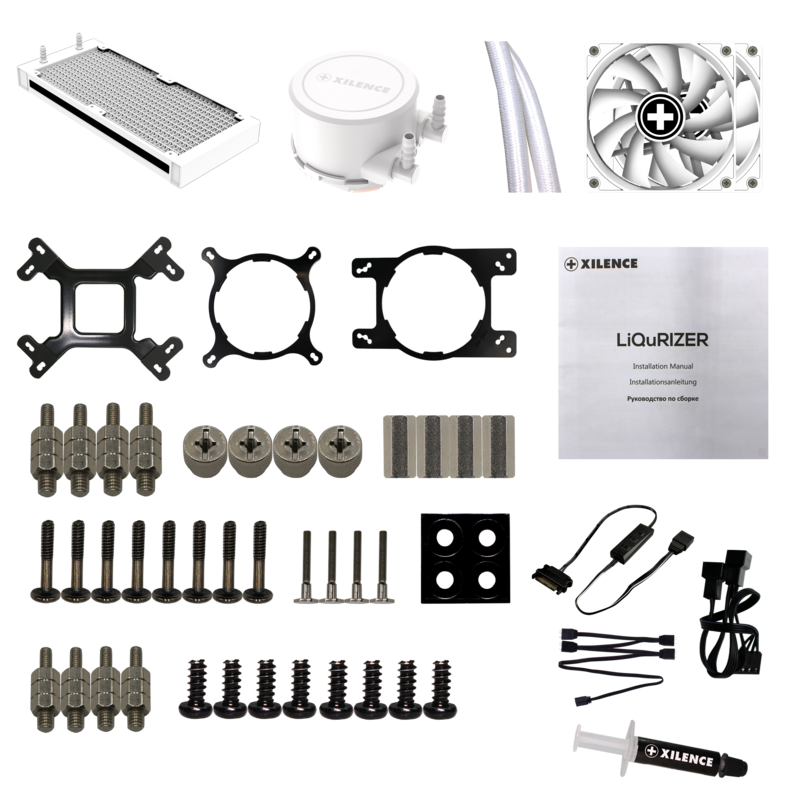

- Including 1x Mini-ARGB-Controller & 1x ARGB-Splitter


Technical data

General data

Model Performance A+ LiQuRizer LQ240.W.ARGB
Overall dimensions (L x W x H) -
Total weight (kg) 1.52
TDP (W) 300
Socket compatibility Intel: 2066 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 1200; AMD: TR4 / AM4 / FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
Overall noise level (db(A)) 18.0 - 30.2
Fan model, qty 120mm ARGB, 2
Bearing technology hydraulic bearing
Tube length (mm) 400

open all / close all

Radiator specifications
Radiator dimensions (mm) 274 x 120 x 27
Waterblock dimensions (mm) 72 x 72 x 47.3
Radiator material Aluminum
Cold plate material copper
Connector 4 Pin
Pump Speed (rpm) 2100 ± 10%
Pump specifications
Speed (rpm) 2100 ± 10%
Noise Level (dB(A)) 25
Input Current (A) 0.36
Bearing technology ceramic bearing
Max. static pressure 2.09mm H²O
Fan specifications
Fan dimensions (mm) 120 x 120 x 25
Speed @ 100% PWM (rpm) 500 - 1500 ± 10%
Bearing technology Hydraulic bearing
Air Flow 68.2 CFM
Connector PWM
Noise Level (dB(A)) 18.0 - 30.2
Input Current (A) 0.16
Accessories
Thermal grease included
Logistical data
Article number XC974
Range Performance A+
EAN code 4044953502897
Dimensions, package (L x W x H), (mm) -
Gross weight, package (kg) -
Pieces per packaging unit -
Dimensions, shipping box (L x W x H), (mm) -
Gross weight, shipping box (kg) -
