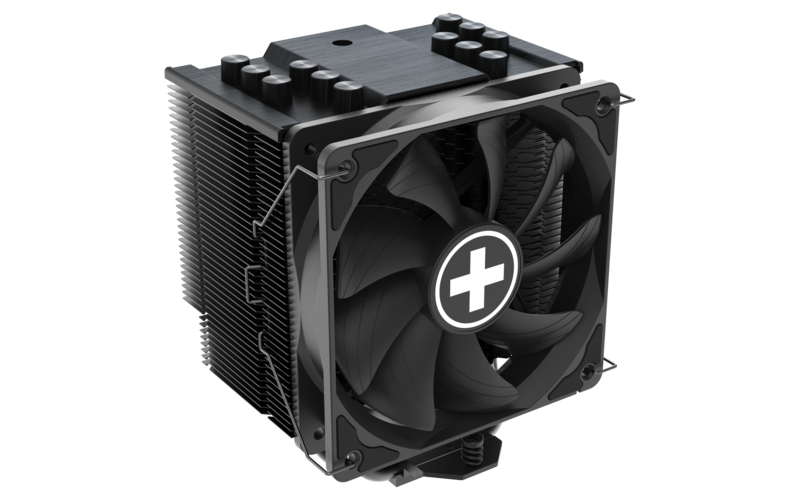

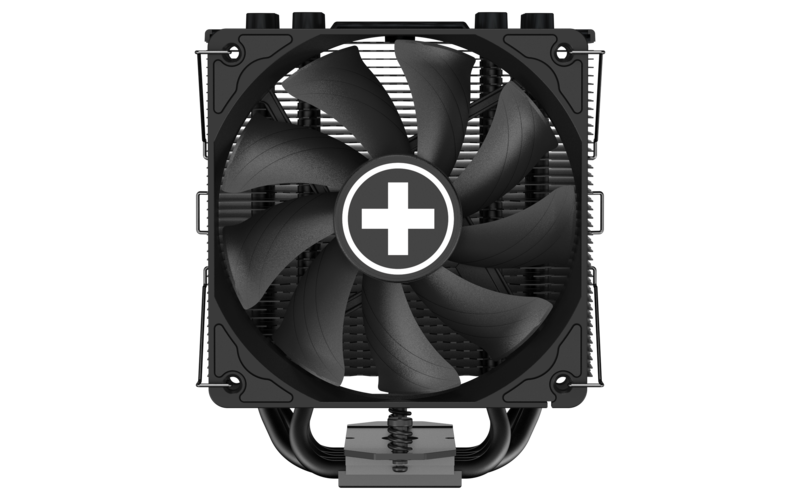

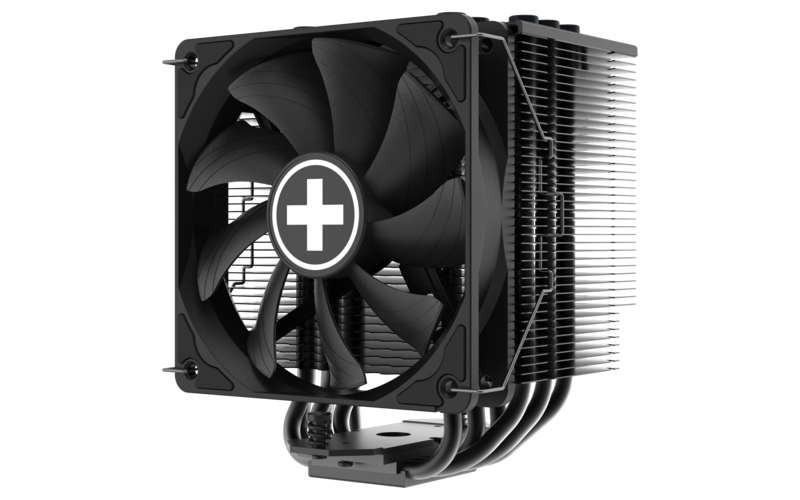

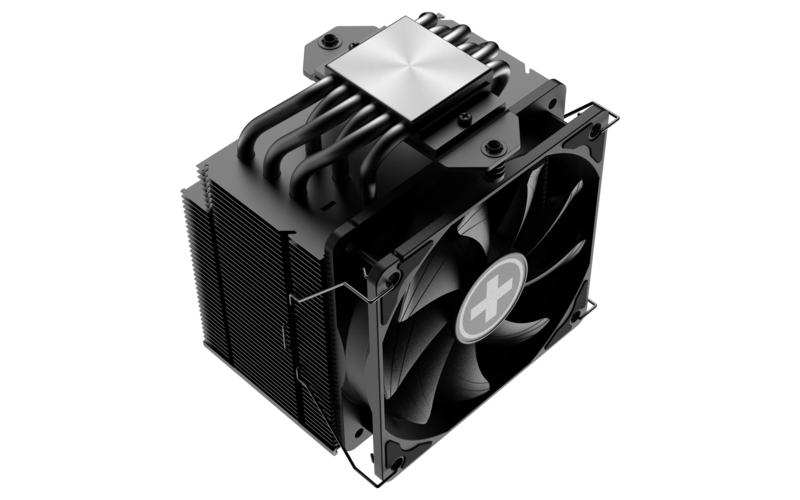

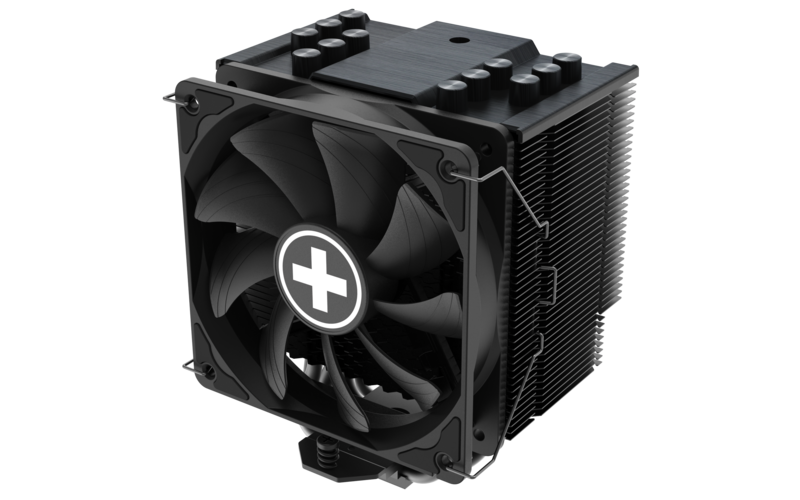

The compact M705D is a twin tower cooler from the A+ series. It has four extremely powerful black heat pipes, which dissipate 220W of waste heat to the countless cooling fins and thus predestine it for potent multi-core
processors. Due to the direct contact of the heat pipes, the heat transfer between CPU and cooler is extremely efficient and very even. Suitable for cooling processors with very high levels of waste heat.
The multi-socket means that the cooler can be used on all current Intel and AMD sockets. In addition to the double heat sink and the two PWM-controlled 120mm fans, the scope of delivery includes a holding module for the LGA socket
LGA1700/1954/2066/2011/1151/1150/1155/1851/1156/1200 and AMD AM4 / AM5, illustrated assembly instructions and a tube of thermal paste.
260W TDP | 120mm fan | dual-tower
XC091 | M806D.B220W TDP | 2x 120mm PWM Ventilador
XC061 | M705D200W TDP | ARGB Fan & Topcover
XC056 | M704PRO.ARGB200W TDP
XC051 | M704150W TDP | ARGB fan
XC129 | M403.PRO150W TDP | ARGB fan | white edition
XC229 | M403.PRO150W TDP
XC029 | M403.PRO180W TDP
XC044 | M504D- Elegant black design with top cover
- Two heat sinks with lamellar design ensure efficient cooling of the CPU and all surrounding components
- Two black 120mm PWM fans, liquid-stored
- Five 6mm copper heat pipes for maximum heat dissipation
- Hotspots are avoided by slightly protruding the fans on the top and bottom
- The fans can be mounted on both sides of the heat sinks
- Suitable for all common AMD & INTEL sockets
| Modelo | Performance X | M906 |
| Medidas totales sin material de montaje (L x An x Al), (mm) | 129 x 106 x 154 |
| Peso total (kg) | 0.905 |
| TDP (W) | 250 |
| Compatibilidad de toma | Intel: 1700 / 1954 / 2066 / 2011 / 1151 / 1150 / 1155 / 1851 / 1156 / 1200 || AMD: AM4 / AM5 |
| Nivel de ruido total @ 50/75/100 % (rpm) | 18.0 - 30.8 |
| Color | Black |
| Medidas (L x An x Al), (mm) | 129 x 106 x 154 |
| Número de aletas | 45 |
| Material de aleta | Aluminum |
| Material de base | Copper + Aluminum |
| Número de tubos termosifón, diámetro (mm) | 6 / 6 |
| Medidas de ventiladores (mm) | 120 x 120 x 25 |
| Velocidad @ 100% PWM (rpm) | 500 - 1500 ± 10% |
| Tecnología de rodamiento | hydraulic bearing |
| Voltaje nominal (V) | 12 |
| Conectores | 4 pin |
| Longitud de cable (mm) | 440 ± 10mm |
| Vida útil @ 25 °C (horas) | - |
| Grasa térmica | included |
| Garantía (años) | 2 |
| Número de artículo | XC081 |
| Serie de productos | Performance X |
| Código EAN | 4044953503252 |
| Dimensiones, Embalaje (L x An x Al), (mm) | - |
| Peso bruto, por unidad (kg) | 0.9 |
| Número por unidad de embalaje (UE) | - |
| Dimensione UE (L x An x Al), (mm) | - |
| Peso bruto UE (kg) | - |
