| XP500R7

XN052 | XP500R7

The new SQ power supply combines high performance with a low noise level and high efficiency. The large dimensioned 12V line ensures maximum voltage stability during long gaming sessions. Thanks to their high efficiency, all SQ series power supplies are Platinum-certified – making high electricity costs a thing of the past. Five built-in safety circuits ensure safe operation at all times, while the sleeved cable harnesses enhance tidiness. TÜV-tested safety completes the package.

XN052

Características del producto

  • Powerful: Optimal performance in every situation
  • Whisper-Silent Cooling: 1x 120mm fan
  • Reliable: Maximum stability at all time
  • The following safety features:
    • OVP (Over Voltage Protection)
    • UVP (Under Voltage Protection)
    • SCP ( Short Circuit Protection)
    • OLP (Over Load Protection)

Datos técnicos

Datos generales

Peak Power (W) 500
Factor de forma ATX 12V Version 2.31
Tensión de red (Vac) 200 - 240
Modelo Redwing | XP500R7
Frequencia de la red (Hz) 50
Corriente nominal (A) 8
PFC passive

ver todos / cerrar todos

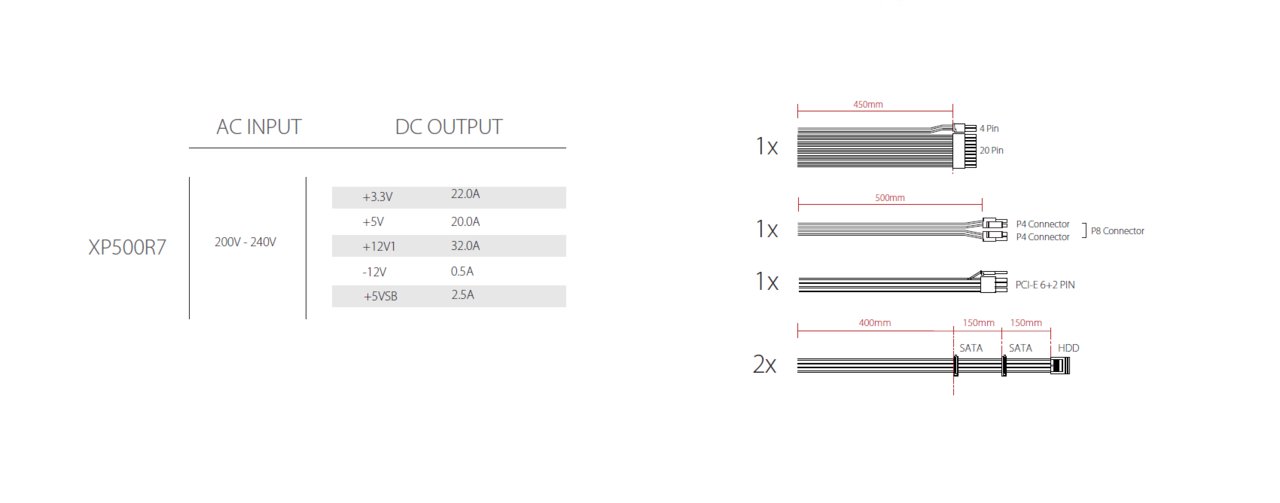

Salida
+3.3V (A) 22
+5V (A) 15
+12V1 (A) 32
-12V (A) 0.5
+5Vsb (A) 2.5
Rendimiento total max. 12V (W) 384
Rendimiento total max. 3,3V + 5V (W) 120
+12V2 (A) -
Ventilador / tecnología de refrigeración
Tecnología de rodamiento FDB
Tamaño del ventilador (mm) 120
Protección
OCP (protección de sobrecorriente) -
OVP (protección de sobretensión)
UVP (protección de mínima tensión)
SCP (protección contra cortocircuito)
OTP (protección de sobrecalentamiento) -
OPP (protección de sobrecarga)
Eco / Eficiencia
Certificación 80PLUS -
eficiencia (%) a 230V, carga 20% -
Effizienz (%) a 230V, carga 50% -
Effizienz (%) a 230V, carga 100% -
Directivas medioambientales
ErP -
WEEE
RoHS
Gestión de cables / Conectores
Gestión de cables modular -
Longitud de cable a la placa base (mm) 450
Longitud del cable hasta el 1.er conector (mm) 400
Longitud de cable máxima(mm) 700
Cables encamisados -
Número de cables 5
Placa madre ATX (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) -
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 1
PATA 4-pin 2
SATA 15-pin(HDD, unidades) 4
FDD (Floppy) -
Datos logísticos, Precio recomendado
Serie de productos Redwing
Número de artículo XN052
Código EAN 4044953500367
Dimensiones, Embalaje (L x An x Al), (mm) 225 x 165 x 100
Peso bruto, por unidad (kg) 1.63
Número por unidad de embalaje (UE) 10
Dimensione UE (L x An x Al), (mm) 16.98
Peso bruto UE (kg) 520 x 480 x 200
