XC056 | M704PRO.ARGB

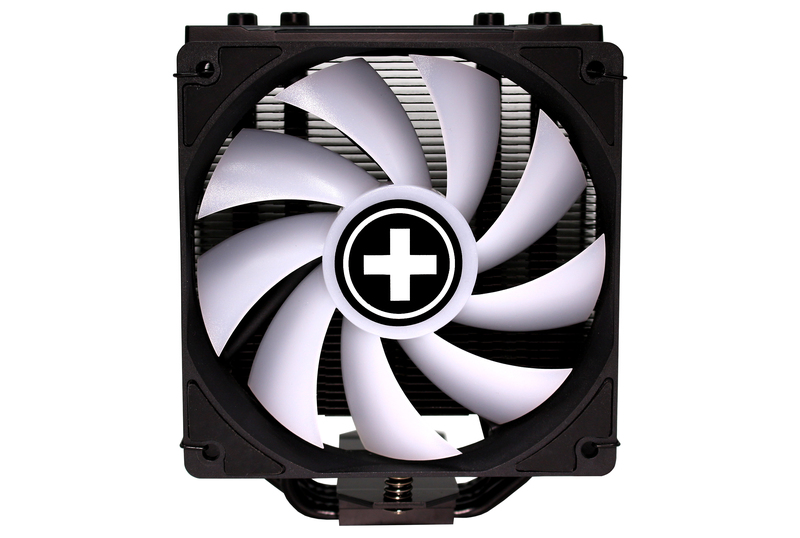

The new M704PRO.ARGB CPU cooler from the Performance A+ series brings light into the inside of the case. In order to highlight the CPU cooler the LED lights of the RGB lightning system sare eperately addressable and furthermore the complete the rest is designed in black.


With its 3PIN 5V D/P ARGB M/B  connector being linked to the equivalent connector on the mainboard, the fan’s color scheme can be controlled. In case there is no such RGB M/B connector on the mainboard, the M704.ARGB offers the possibility to manage the color scheme via a mini controller (being powered via the S-ATA connector of the PSU).


With this design and its specifications, the M704.ARGB cooler is especially appropriate for gaming systems.

Thanks to the multi-socket design, the cooler can be applied on all current AMD and Intel sockets. Included in the scope of delivery is – besides heatsink and 120mm PWM fan – mounting material for sockets LGA1700/1954/2066/2011/1151/1150/1155/1851/1156/1200/ and AM4/AM5, illustrated assembly instructions as well as a tube of thermal paste.

XC056

Cechy Produktu

  • classy black design with adressable RGB Topcover
  • silent, hydro bearing 120mm ARGB fan
  • black heat-sink
  • four black 6mm copper heat pipes for better heat flow
  • fin Design for high airflow and efficient cooling of the CPU and surrounding components
  • slight overhang of the fan avoids hotspots
  • possible mounting of the fan on both sides of the heat sink
  • suitable for all current AMD and INTEL sockets

Dane Techniczne

Informacja ogólna

Model Performance A+ | M704PRO.ARGB
Wymiary bez materiałów montażowych (D x S x W), (mm) 120 x 75 x 159
Waga całkowita (kg) 0,643
Zakres mocy CPU (W) 200
Kompatybilny socket Intel: 1700 / 1954 / 1151 / 1150 / 1155 / 1851 / 1156 / 1200 || AMD: AM4 / AM5
Poziom hałasu (dB(A)) @ 50/75/100% (rpm) 18.0 - 30.2
Color Black

otwórz wszystko / zamknij wszystkie

Specyfikacja radiatora
Wymiary (D x S x G), (mm) -
Liczba finów 55
Materiał - finy Aluminum
Materiał - podstawa Aluminum
Liczba heatpipów, średnica (mm) 4 / 6
Specyfikacja wentylatora
Wymiary wentylatora (mm) 120 x 120 x 25
Prędkość obrotowa @ 100% PWM (RPM) 800 - 1800 ± 10%
Technologia łożyska Hydro Bearing
Napięcie zasilania DC (V) 12
Podłączenie PWM 4pin / 5V ARGB 3pin Male + Female
Długość kabla (mm) 440mm ± 10mm
Żywotność (h / 25°C) -
Akcesoria
Thermal grease included
Serwis
Gwarancja (lata) 2
Dane logistyczne, SRP
Numer artykułu XC056
Seria produktów Performance A+
Kod EAN 4044953503023
Wymiary, opakowanie (D x S x W), (mm) 155 × 136 × 180
Waga opakowania brutto (kg) 0.959
Ilość w opakowaniu (kartonie) 18
Wymiary, opakowanie zbiorcze (D x S x W), (mm) 485 × 420 × 383
Waga opakowania zbiorczego brutto (kg) 18.1
