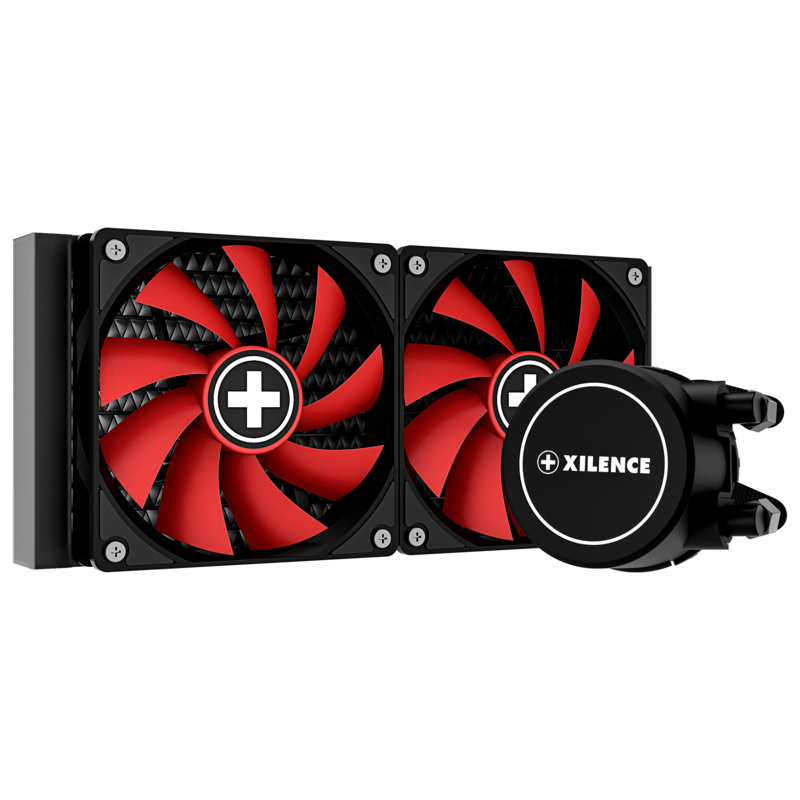

XC975 | LQ240

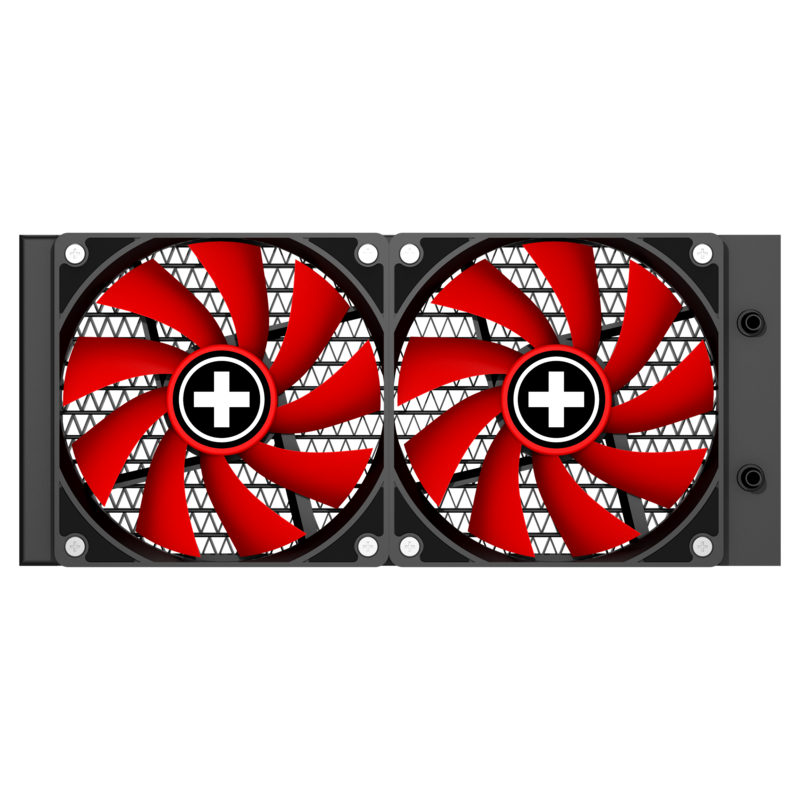

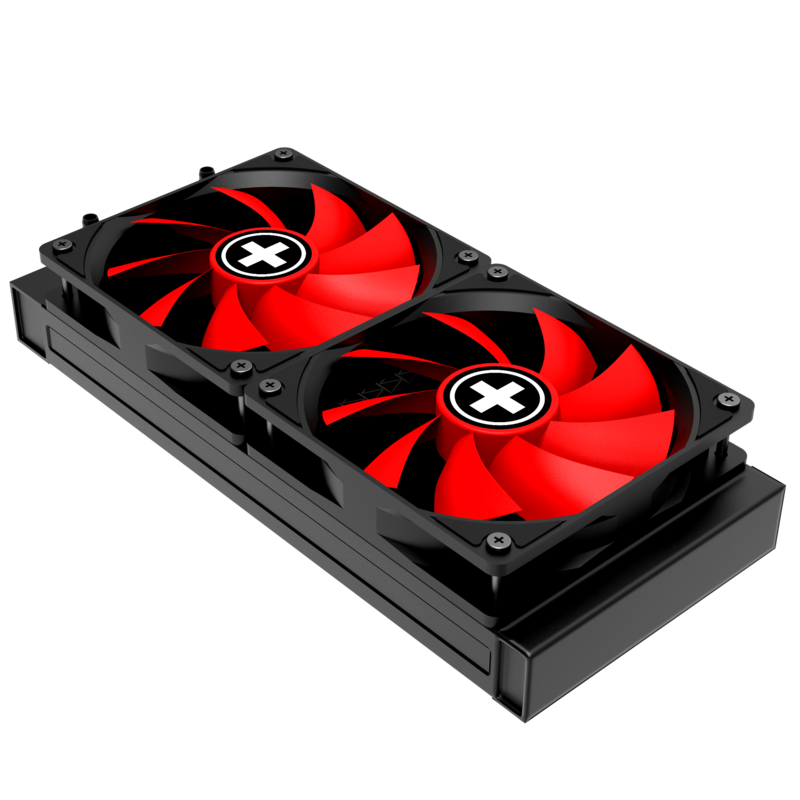

The new maintenance-free all-in-one liquid cooling systems from Xilence can convince with an outstanding price-performance ratio and easy handling. The installation with the quick-mount-system really easy and safe and due to the included multi-socket-mountings it can be applied on every socket from AMD or INTEL. The elegant sleeved and soft tubes follow easily the planned way of mounting  – no matter if the radiator is placed in the back, top, front or bottom of the case. The huge full-copper heat-spreader below the LED lit pump head and the powerful radiators, together with the hydrobearing PWM fans guarantee a silent running and a high performance. Available as a 120mm or 240mm version with a white LED lit pump head and 1 or 2 REDWING PWM fans respectively or as a 240mm RGD LED version with RGB LEDs on the pump head and 2 transparent RGB LED PWM Fans.

XC975

Особенности продукта

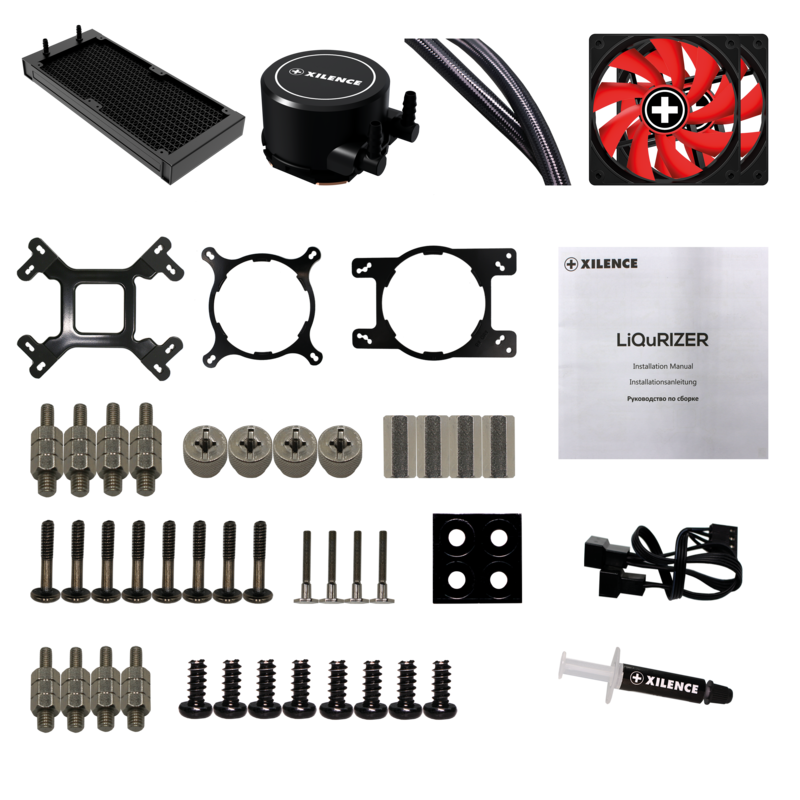

  • Multi Socket Mountings for AMD and INTEL

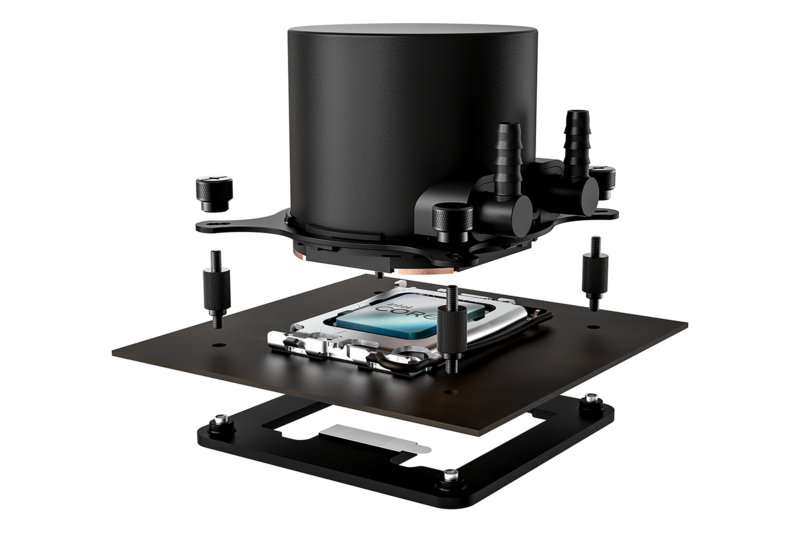

  • Quick Mount System

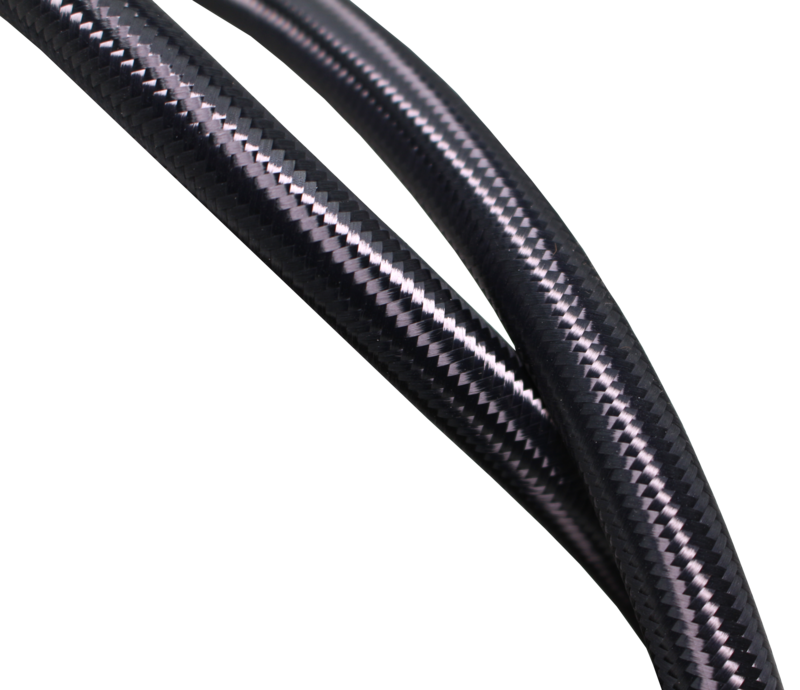

  • Flexible tubes for versatile mounting

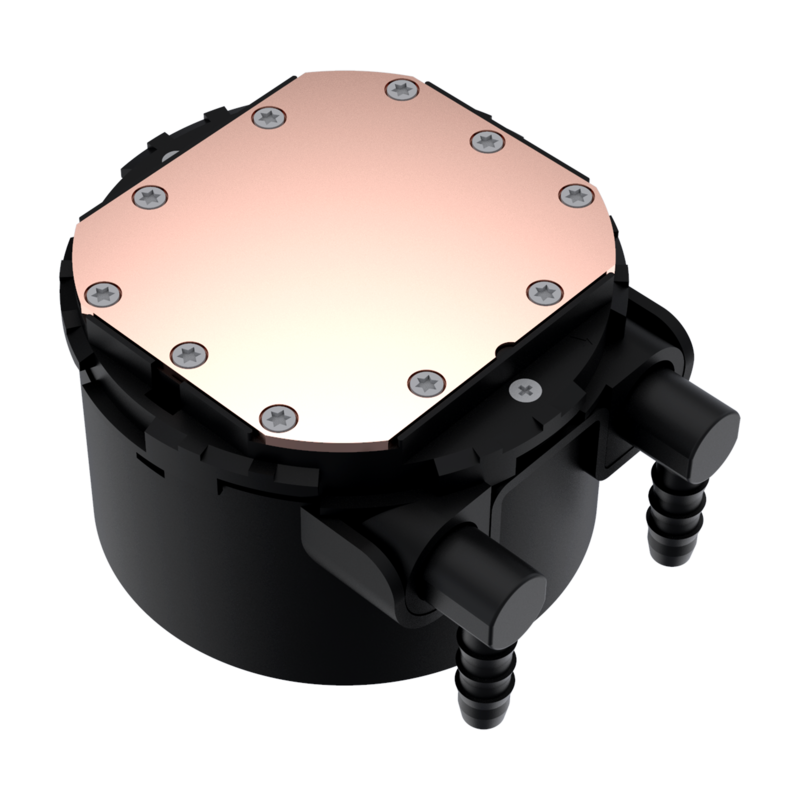

  • Big full copper heat spreader and high performance radiator

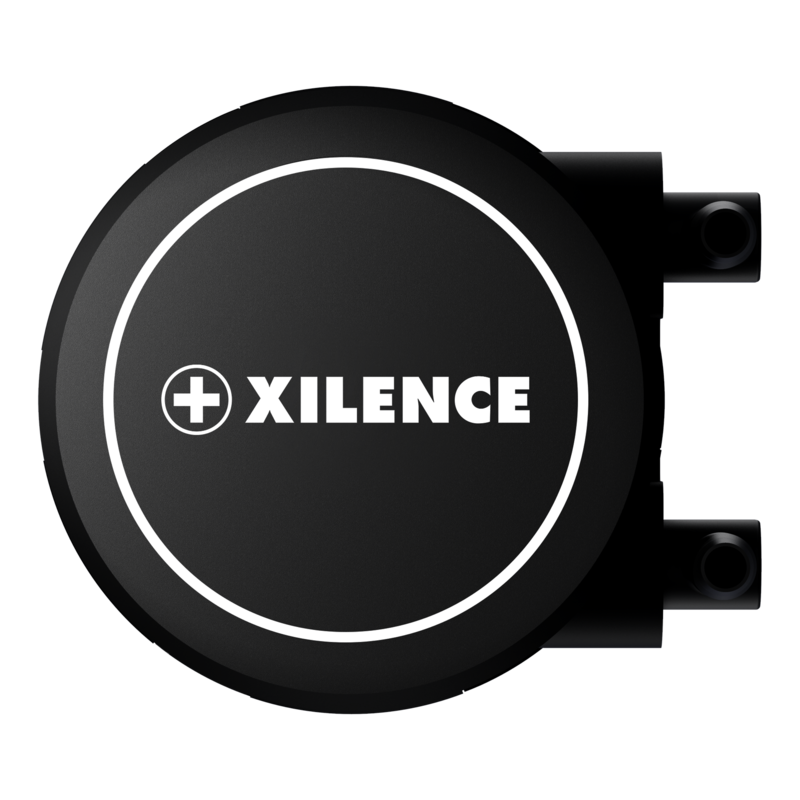

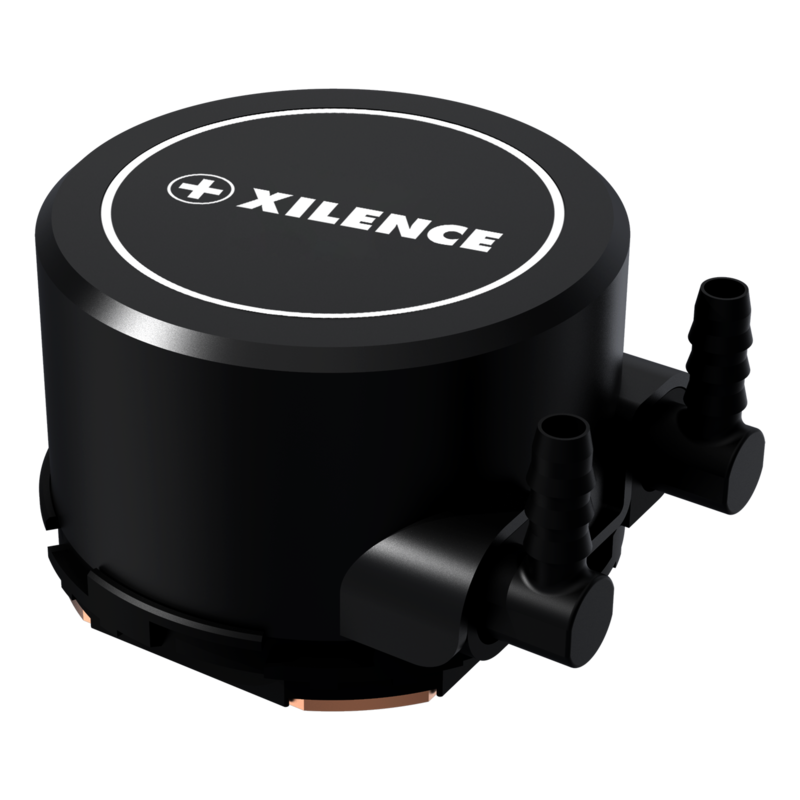

  • LED lit Pump Head with white LED

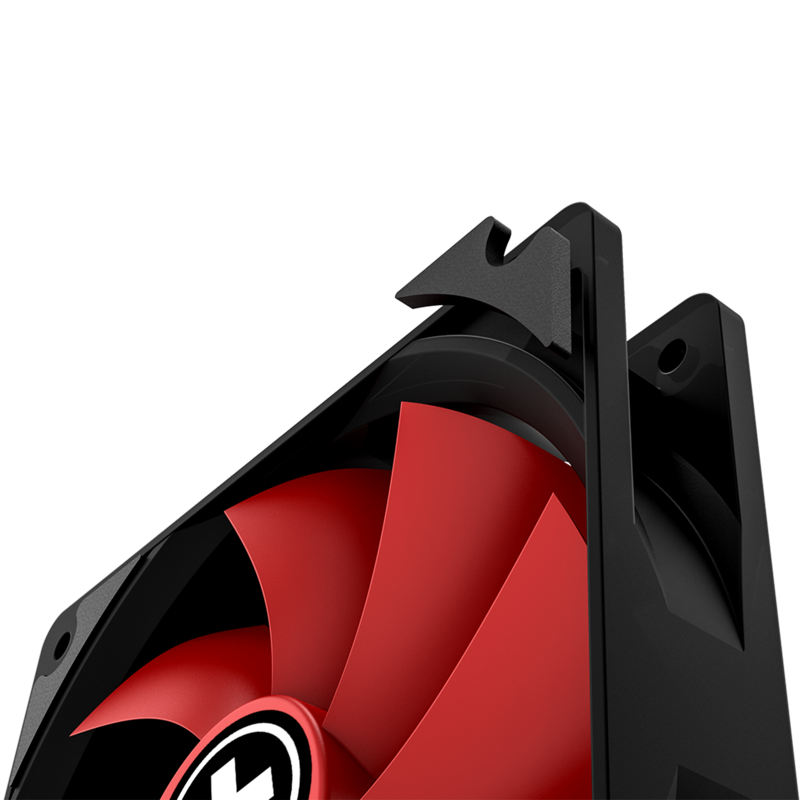

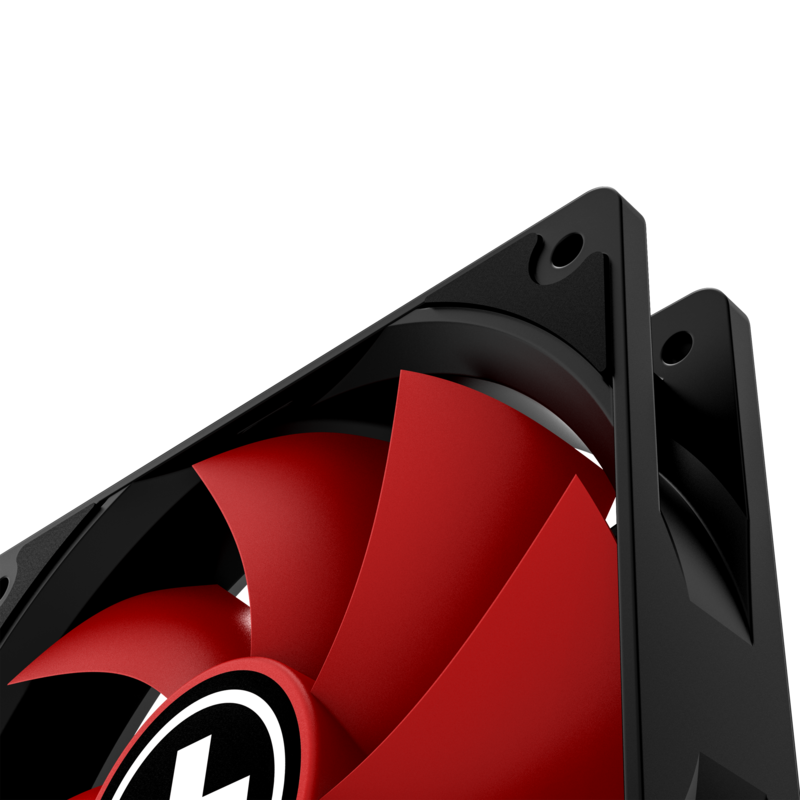

  • XILENCE PWM Fans REDWING

Параметры

Общая информация

Модель Performance A+ LiQuRizer LQ240
Общие размеры (Д x Ш x В) 274 x 120 x 52mm
Общий вес (кг) 1.52
TDP (Вт) 300
Совместимость с разъемами Intel: 1700 / 2066 / 2011 / 1151 / 1150 / 1155 / 1156 / 1200; AMD: AM4 / AM5
Уровень шума (dB(A)) 18.0 - 32.2
Модель вентилятора, Количество 120mm Redwing, 2
Технология подшипника Ceramic bearing
Длина трубки (mm) 400
Color Black

открыть все / закрыть все

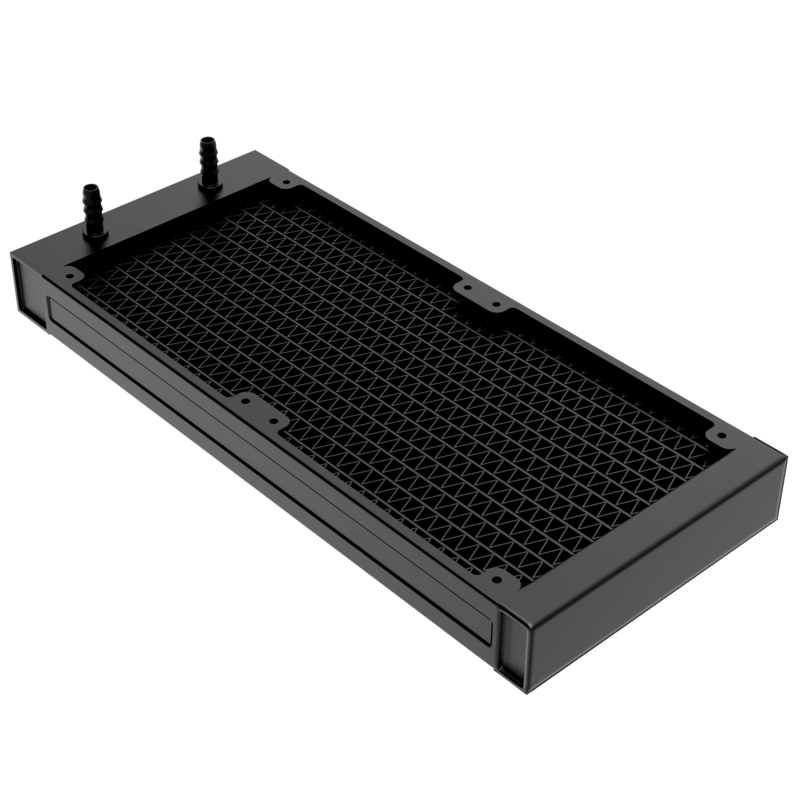

Спецификации радиатора
Размеры радиатора (mm) 274 x 120 x 27
Waterblock dimensions (mm) 72 x 72 x 47.3
Материал радиатора Aluminum
Материал основания Copper
Разъем 3 Pin
Скорость помпы (об\мин) 2100 ± 10%
Pump specifications
Скорость вращения (об\мин) 2100 ± 10%
Уровень шума (дБ(A)) 25
Ток при номинальном напряжении ток (A) 0.36
Технология подшипника Ceramic bearing
Воздушное давление 2.09mm H²O
Спецификации вентилятора
Размеры вентилятора (мм) 120 x 120 x 25
Скорость вентилятора @ 100% PWM (об/мин) 700 - 1800 ± 10%
Технология подшипника Hydraulic bearing
Поток воздуха 70 CFM
Разъем PWM
Уровень шума (дБ(A)) 18.0 - 32.2
Ток при номинальном напряжении ток (A) 0.15
Аксессуары
Термопаста Included
Логистика
Артикул XC975
Линейка Performance A+
Код EAN 4044953502118
Размеры, упаковка (Д х Ш х Г), (мм) -
Вес брутто, упаковка (кг) -
Штук в упаковке -
Размеры, упаковочная коробка (Д x Ш x Г), (мм) -
Вес брутто, упаковочная коробка (кг) -
