XN078 | XP1250MR9


Launching the Performance X model line, Xilence is extending the already favorable portfolio of power supply units. Following the ErP2014 conform entry-level models and the successful Performance A+ Series, the next step is made into the 80+ GOLD class. The PSUs score not only with the up-to-date DC/DC technology which guaratees an all-time stable output voltage. Moreover, resonant converters help avoiding switchig losses. Thus, energy is saved and the efficiency increased. The dynamic hydro-bearing fans work in an especially sooth and silent way. Furthermore, the PSUs win over thanks to an extremely long life period and their excellent cooling performance. All of those specifications together with being powerful in quality/price ratio turn the Performance X Series into an ideal solution for current Gaming PC Systems.

XN078


Product image 1 Product image 2


Article features


  • Extremely silent cooling: large 140mm fan
  • Excellent air flow design for a better heat dissipation
  • Modular cable management
  • Following safety design:
    • OVP (Over Voltage Protection)
    • UVP (Under Voltage Protection)
    • OCP (Over Current Protection)
    • OTP (Over Temperature Portection)
    • SCP (Short Circuit Protection)
    • OLP (Over Load Protection)
  • Low stand-by consumption
  • high energy efficiency: 80+ GOLD® and EcoPSU certified (complies with ErP2014 norm)
  • Active-PFC


Technical data

General data

Continuous power (W) 1250
Form factor ATX 12V Version 2.4
Voltage (Vac) 200 - 240
Model Performance X | XP1250MR9
Frequency (Hz) 50 - 60
Input current (A) 15
PFC active

open all / close all

Output
+3.3V (A) 20
+5V (A) 20
+12V1 (A) 104.2
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 1250
Max. combined power 3.3V + 5V (W) 100
+12V2 (A) -
Fan / Cooling technology
Bearing technology FDB
Fan size (mm) 140
Protection
OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
Eco / Efficiency
80PLUS certification Gold
Efficiency (%) at 230V, 20% load 90
Efficiency (%) at 230V, 50% load 92
Efficiency (%) at 230V, 100% load 89
Environmental directives
ErP
WEEE
RoHS

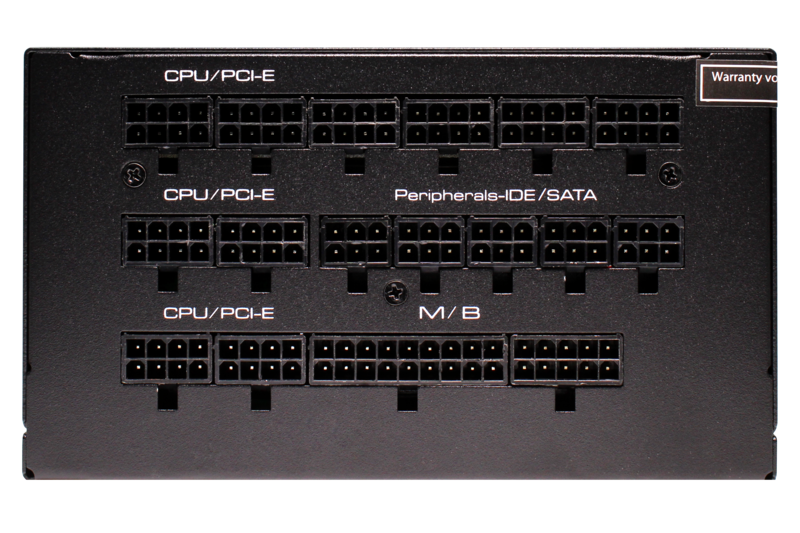

Cable management / Connectors
Modular cable management
Cable length to mainboard (cm) 650
Cable length to first connector (cm) 500
Maximum cable length (cm) 950
Sleeved cables
No. of cables 11
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 2
P4 (CPU) -
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 8
PATA 4-pin 4
SATA 15-pin (HDD, Drives) 8
FDD (Floppy) 1
Logistics data, RRP
Range Performance X
Article number XN078
EAN code 4044953501326
Dimensions, package (L x W x H), (mm) 335 x 195 x 95
Gross weight, package (kg) 3.46
Pieces per packaging unit 6
Dimensions, shipping box (L x W x H), (mm) 600 x 343 x 215
Gross weight, shipping box (kg) 20.8
