XN081 | XP450R11


The 80+BRONZE certified Performance A+ III series, using the high standard of DC/DC technology, supplies increased efficiency and maximum electrical stability even during excessive gaming. Because of its modular cable system (models with 550W and 650W only ) the power supplies offer a built-to-order usability. This individual use of the cables supports an optimized air flow for each computer case and improve heat dissipation. Six integrated safety circuits provide an all-time safe operation and the sleeved main cable harness ensures order in the PC case.

XN081

Other products of this series:
XN083|XP650R11 XN085|XP650R11

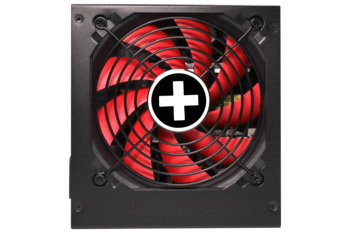

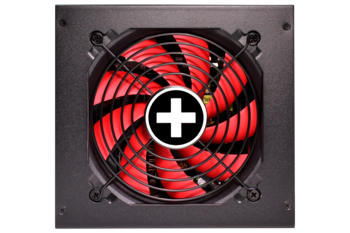

Product image 1


Article features


  • Extremely silent cooling: large 120mm fan
  • Full safety design:
    • OVP (Over Voltage Protection)
    • UVP (Under Voltage Protection)
    • OCP (Over Current Protection)
    • OTP (Over Temperature Protection)
    • SCP (Short Circuit Protection)
    • OLP (Over Load Protection)
  • Low stand-by consumption
  • High energy efficiency: 80+ BRONZE® certified (complies with ErP2014 norm)
  • Active-PFC


Technical data

General data

Continuous power (W) 450
Form factor ATX 12V Version 2.52
Voltage (Vac) 200 - 240
Model Performance A III | 450W
Frequency (Hz) 50-60
Input current (A) 6.3
PFC active

open all / close all

Output
+3.3V (A) 20
+5V (A) 20
+12V1 (A) 37.5
-12V (A) 0.3
+5Vsb (A) 3.0
Max. combined power 12V (W) 450
Max. combined power 3.3V + 5V (W) 100
+12V2 (A) -
Fan / Cooling technology
Bearing technology FDB
Fan size (mm) 120
Protection
OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
Eco / Efficiency
80PLUS certification Bronze
Efficiency (%) at 230V, 20% load 85
Efficiency (%) at 230V, 50% load 88
Efficiency (%) at 230V, 100% load 85
Environmental directives
ErP
WEEE
RoHS
Cable management / Connectors
Modular cable management -
Cable length to mainboard (cm) 550
Cable length to first connector (cm) 450
Maximum cable length (cm) 750
Sleeved cables
No. of cables 6
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P4 (CPU) -
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 1
PATA 4-pin 3
SATA 15-pin (HDD, Drives) 5
FDD (Floppy) -
Logistics data, RRP
Range Performance A III
Article number XN081
EAN code 4044953502200
Dimensions, package (L x W x H), (mm) -
Gross weight, package (kg) -
Pieces per packaging unit -
Dimensions, shipping box (L x W x H), (mm) -
Gross weight, shipping box (kg) -


Downloads


Documents

Datasheet

Properties

Cable connection
Cable connection
Preview   Download
