XF062 | XPF120RGB


The new Xilence 120mm LED case fan adds another must-have for gamers to the portfolio of the Performance A+ series and brings light into the inside of the PC.

With its 4PIN RGB M/B connector being linked to the equivalent connector on the mainboard, the fan’s color scheme can be controlled.

XF062

Other products of this series:
XF061|XPF120RGB-SET


Product image 1 Product image 2 Product image 3 Product image 4 Product image 5 Product image 6 Product image 7 Product image 8 Product image 9


Article features


  • optimal performance in every situation
  • hydro bearing LED PWM-Fan

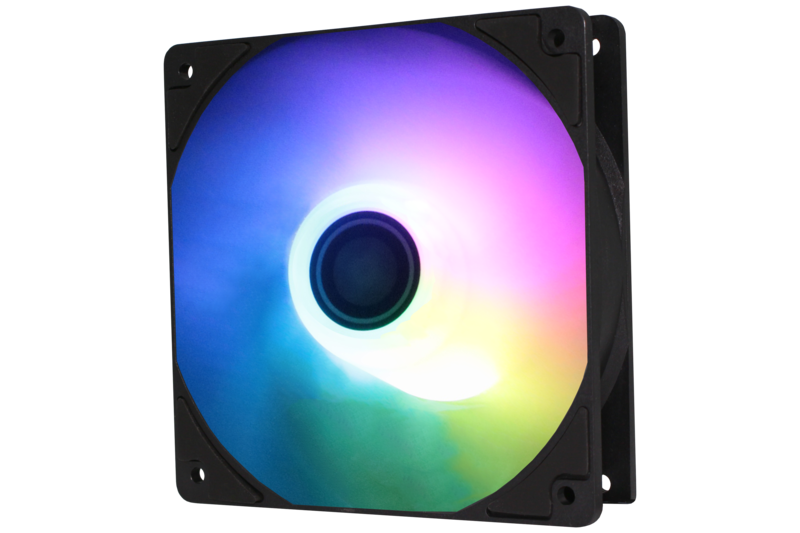

  • LED effect with seven different colour options during operation
  • airflow optimized rotor blades


Technical data

General data

Model Performance A+ | 120mm RGB
Dimensions (mm) 120
Fan speed @ 12V (rpm) 700 ~ 1.600 ± 10%

open all / close all

Mechanical specifications
Dimensions (L x W x H), (mm) 120 x 120 x 25
Bearing technology Hydro Bearing
Weight incl. fixed cables (kg) 0,130
Cables / Connectors
Connector Female RGB 4 Pin (12V RGB M/B Sync)
Cable length (mm) 400
Performance / Noise
Air flow @ 12V (cfm / m3/h) 70 / 119
Noise level @ 12V (dB(A)) 18.0 - 32.5
Electrical specifications
Rated voltage DC (V) -
Operating voltage DC (V) -
Accessories

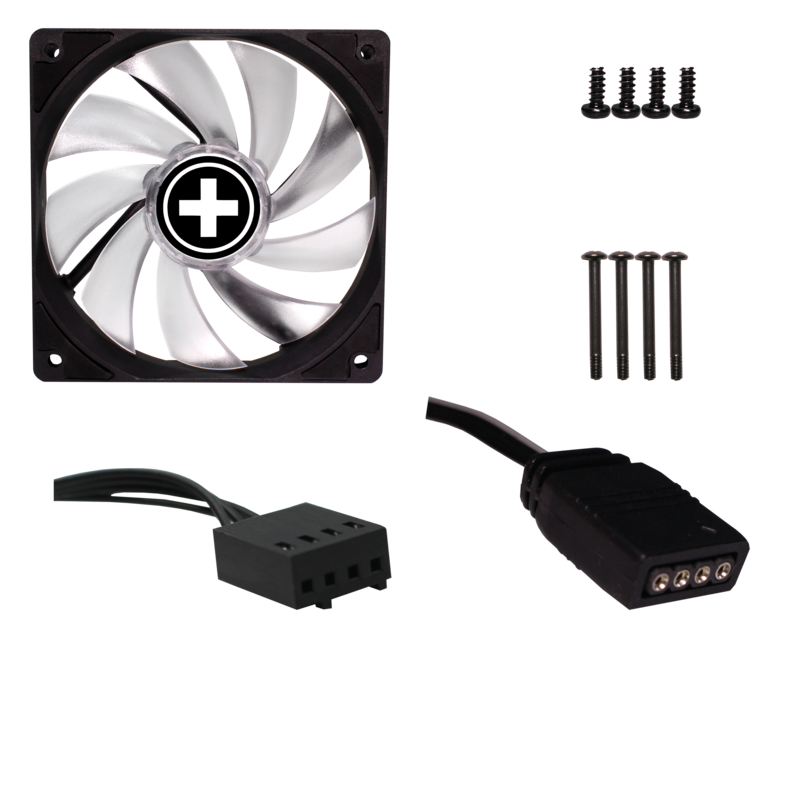

Screws 4
Service
Warranty (Years) 2
Logistics data, RRP
Article number XF062
Range Performance A+
EAN code 4044953501401
Dimensions, package (L x W x H), (mm) 135 x 30 x 125
Gross weight, package (kg) 0,162
Pieces per packaging unit 80
Dimensions, shipping box (L x W x H), (mm) 350 x 290 x 345
Gross weight, shipping box (kg) 14,2


Downloads


Documents

Datasheet

Properties

Cable connection
Cable connection
